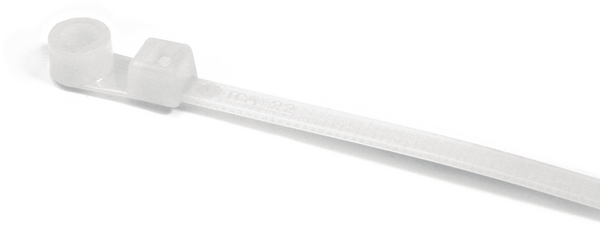

Fixing tie for screw fixation, inside serrated, Ø5.0-102mm, natural, 100pcs.
Art.-No. 113-12018 | T120MR(E)-PA66-NA |  Details

One-piece Screw Mount Cable Ties fasten with a screw or bolt to provide secure routing of cable bundles.

    • One-piece bundling and fixing tie
    • Quick and easy installation
    Add to watchlist

    Request your individual offer now

     Request quote
    Application This range of one piece cable ties have a built in mounting hole and once fastened around the cables the bundle can be simply secured to the panel with a screw or bolt. The tie is fitted to the panel first and then the cables can be added.
    Application Tool ProCut 9 no battery, EVOcut, MK9P, MK9P w/ Upper air, MK10-SB, MK21, EVO9SP, EVO9HT, EVO9i, EVO9iSP, EVO9iHT
    Colour Natural (NA)
    Fixation Method Fixing hole
    Identification Plate Position none
    Local order number T120MR.NN3P
    Material Polyamide 6.6 (PA66)
    Pack Cont. 100pcs.
    Package Content packed in Bag
    PART DESCRIPTION T120MR(E)-PA66-NA
    Product Family M-Series
    Product Group 1-piece fixing ties with mounting head for screws
    Releasable Closure (Yes/No) No
    Short Description 1-Piece fixing tie 246.4x12.7 mm, with mounting head for screws, PA66, black
    Tie Closure plastic pawl
    Variant Inside Serrated
    Bundle Diameter max (metric) 102mm
    Bundle ∅ 5.0-102mm
    Bundle ∅ min. 5.0mm
    for Hole ∅ (FH) 6.5 mm
    Height (H) 7.9mm
    Length (L) 395mm
    Min.Tensile Strength 535N
    Width (W) 7.6mm
    Flammability UL 94 V2
    Halogen-free Yes
    Operating Temperature -40 °C to +85 °C
    Specifications
    Specifications ANSI/UL 1565, ANSI/UL 62275, ANSI/UL 746B
    UL-File Number E64963
    Country of Origin GB
    Customs Number 39269097
    GTIN-13 / EAN 5022660019258
    Packaging 1 - Weight (kg) 5.8kg
    Packaging 3 - Height (m) 0.192m
    Packaging 3 - Length (m) 0.586m
    Packaging 3 - Type Box
    Packaging 3 - Volume (m³) 0.0439m³
    Packaging 3 - Width (m) 0.39m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
