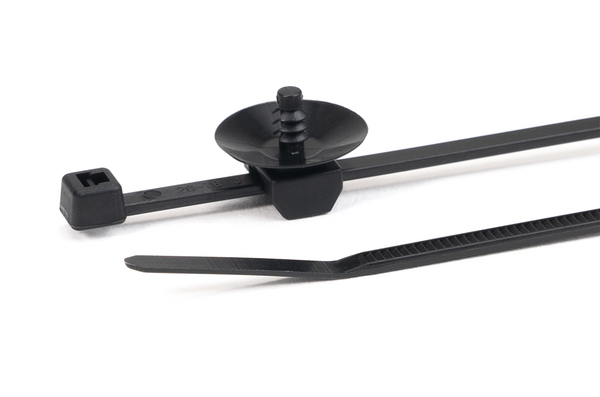

2-Pieces Fixing Ties with Fir Tree, with Disc T18RFT3

Fir Tree Parts FT3, Article number: 156-00338

Features

  • Pre-assembled 2-piece fixing tie with fir tree foot part
  • Cable tie head can be moved after bundling
  • Easy to assemble without the need for a tool
  • Disc adjusts tie for pressure from various directions and minimises access of dust, dirt and water
  • Fir tree foot part can be used for a variety of panel thicknesses
  • Suitable for use within threaded holes

Certifications & Approvals

Application

Primarily designed for fixing cable harnesses in the automotive industry their simplicity, and ease of use, has seen these parts used in everything from aircraft, to switch-gear, to washing machines.

Fir Tree Parts FT3 is suitable for following markets and industries

Application Tool MK3PNSP2, MK3SP, MK20, EVO7
Colour Black (BK)

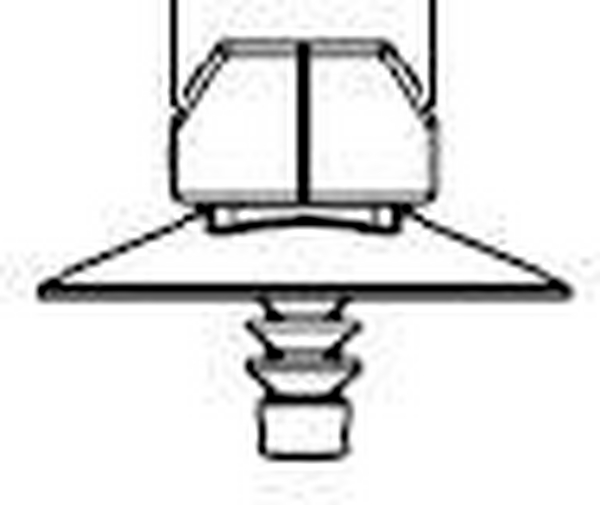

Fixation Method Fir Tree
Global Part Name T18RFT3-PA66HSW-BK
Identification Plate Position none
Manufacturer Type T18RFT3 PA66HSW BK 100
Mounting Screw Type M3
Pack Cont. 100

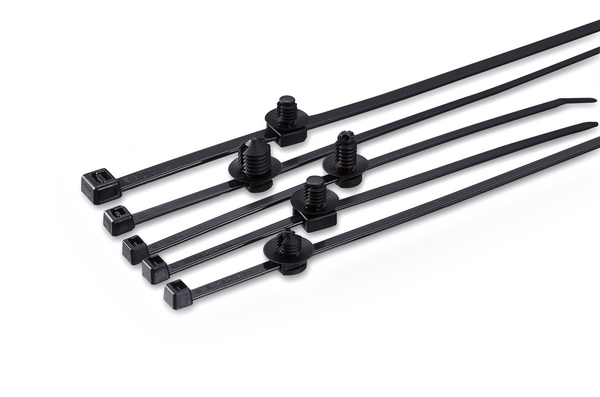

Product Family Fir Tree Parts FT3
Product Group 2-Pieces Fixing Ties with Fir Tree, with Disc
Quantity per Bag
Releasable Closure (Yes/No) No
Tie Closure plastic pawl
Type T18RFT3-HSW
Variant Inside Serrated

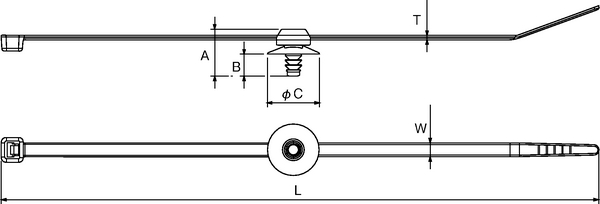

Bundle ∅ max. 20.0mm
Disc ∅ 13
for Hole ∅ (FH) M3
for Panel Thickness min - max 1.5 - 3 mm
Hole 4mm
Length (L) 100.0mm
Length (L2) 10.2mm
Min.Tensile Strength 80N
Thickness (T) 1.1mm
Width (W) 2.5mm
Width (W3) 0mm
Cable Tie Polyamide 6.6, heat and UV stabilised (PA66HSUV)
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Foot Part Polyamide 6.6, heat and UV-resistant (PA66HSW)
Hazardous goods No
Material Polyamide 6.6, heat and UV stabilised (PA66HSUV)
Operating Temperature - °C -40 °C to +110 °C
Specifications
EAN / GTIN 4944387951073
Packaging 1 - Height (m) 0.03m
Packaging 1 - Length (m) 0.23m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00104
Packaging 1 - Weight (kg) 0.064kg
Packaging 1 - Width (m) 0.15m
Packaging 3 - Height (m) 0.27m
Packaging 3 - Length (m) 0.6m
Packaging 3 - Qty 5000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0648
Packaging 3 - Weight (kg) 6.495kg
Packaging 3 - Width (m) 0.4m
Packaging 4 - Type pallet
Packaging Content SKU Unit pieces
ETIM 5.0 EC000046
ETIM 6.0 EC000046
