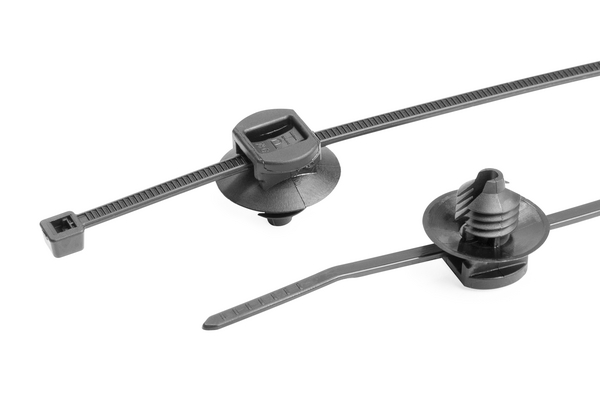

2-Piece Fixing Ties with Fir Tree, with Disc T18RFT6

Fir Tree Parts FT6, Article number: 156-01754

Features

  • Pre-assembled 2-piece fixing tie with fir tree foot part
  • Cable tie head can be moved after bundling
  • Easy to assemble without the need for a tool
  • Disc adjusts tie for pressure from various directions and minimises access of dust, dirt and water
  • Fir tree foot part can be used for a variety of panel thicknesses
  • Suitable for use within threaded holes

Certifications & Approvals

Application

Primarily designed for fixing cable harnesses in the automotive industry their simplicity, and ease of use, has seen these parts used in everything from aircraft, to switch-gear, to washing machines.

Fir Tree Parts FT6 is suitable for following markets and industries

Application Tool MK3PNSP2, MK3SP, MK20, EVO7
Colour Black (BK)

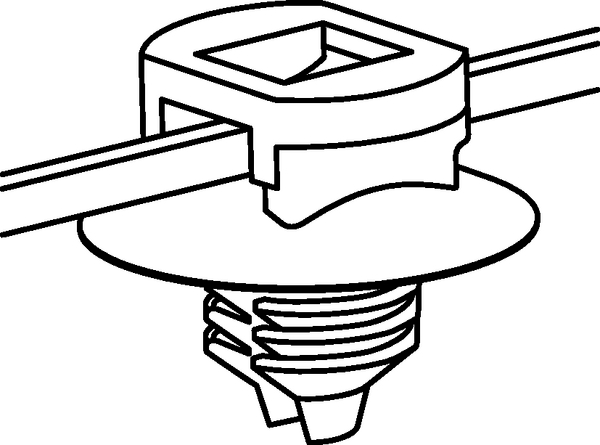

Description These two-piece fixings are supplied ready assembled and offer a simple and versatile method of bundling and fixing cables. The fir-tree base will easily push into pre-punched holes in panels or threaded, blind, holes and offers a very secure fixing. The two-piece design enables the head of the tie to be orientated to the required position to ease assembly, whilst the 'disc' on the top of the fir tree covers the hole and minimises the ingress of water and dirt.
Fixation Method Fir Tree
GLOBAL PART NAME T18RFT6-PA66HS/PA66HIRHS-BK
Identification Plate Position none
Pack Cont. 1000pcs.
Package Quantity per Bag
Product Family Fir Tree Parts FT6
Product Group 2-Piece Fixing Ties with Fir Tree, with Disc
Releasable Closure (Yes/No) No
Tie Closure plastic pawl
Type T18RFT6_PA66HS+HIRHS_BK
Variant Inside Serrated
Bundle ∅ max. 20.0mm
Bundle ∅ min. 4.0mm
Disc ∅ 16.0mm
for Hole ∅ (FH) 6.4 - 7.1 mm
for Panel Thickness min - max 0.8 - 3 mm
Height (H) 1.0mm
Height (H2) 7.5mm
Length (L) 100mm
Length (L2) 11.6mm
Min.Tensile Strength 80N
Width (W) 2.5mm
Width (W2) 9.0mm
Cable Tie Polyamide 6.6, heat stabilised (PA66HS)
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Foot Part Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Hazardous goods No
Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Operating Temperature - °C -40 °C to +105 °C
Operating Temperature Foot Part (Metric) -40 °C to +105 °C
Specifications
EAN / GTIN 4031026586557
Packaging 1 - Height (m) 0.15m
Packaging 1 - Length (m) 0.3m
Packaging 1 - Qty 1000
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.01845
Packaging 1 - Weight (kg) 0.7938kg
Packaging 1 - Width (m) 0.41m
Packaging 3 - Height (m) 0.368m
Packaging 3 - Length (m) 0.584m
Packaging 3 - Qty 10000
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.083
Packaging 3 - Weight (kg) 8.758kg
Packaging 3 - Width (m) 0.386m
Packaging 4 - Height (m) 1.249m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 120000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.199
Packaging 4 - Weight (kg) 126.12kg
Packaging 4 - Width (m) 0.8m
Packaging Content SKU Unit pieces
ETIM 5.0 EC000046
ETIM 6.0 EC000046
