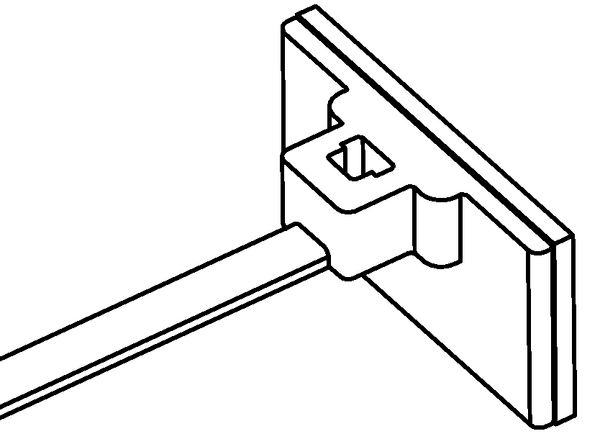

1-Piece Fixing Ties with Self Adhesive Socket T18RSA

T18RSA, Article number: 148-00001

Features

  • Cable tie and integrated base
  • Self-adhesive for firm securing of wiring bundles
  • Quick and easy to install

Certifications & Approvals

Application

Ideal for use in a variety of clean applications.

T18RSA is suitable for following markets and industries

Colour Natural (NA)
Description Short (BMEcat) (max. 150 characters) Fixing Tie 100x2.5 natur
Fixation Method Adhesive
GLOBAL PART NAME T18RSA-PA66-NA
Identification Plate Position none
Pack Cont. 100pcs.
Package Quantity per Bag
Product Family T18RSA
Product Group 1-Piece Fixing Ties with Self Adhesive Socket
Releasable Closure (Yes/No) No
Tie Closure plastic pawl
Type T18RSA.NN3P
Variant Inside Serrated
Bundle ∅ max. 16.0mm
Bundle ∅ min. 1.5mm

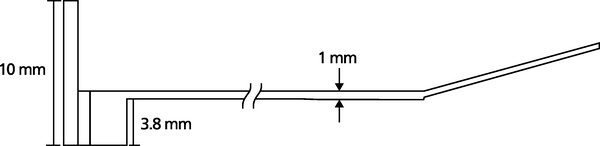

Height (H) 10mm

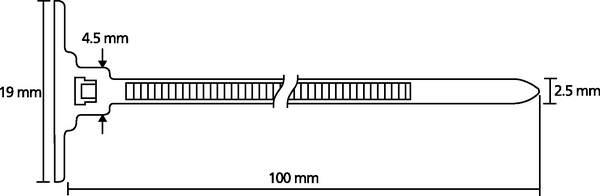

Length (L) 100.0mm
Min.Tensile Strength 80N
Width (W) 2.5mm
Adhesive Operating Temperature -40 °C to +60 °C
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Hazardous goods No
Material Polyamide 6.6 (PA66)
Operating Temperature - °C -40 °C to +85 °C
Specifications
EAN / GTIN 5022660110825
Packaging 1 - Height (m) 0.15m
Packaging 1 - Length (m) 0.3m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.0117
Packaging 1 - Weight (kg) 0.0844kg
Packaging 1 - Width (m) 0.26m
Packaging 3 - Height (m) 0.368m
Packaging 3 - Length (m) 0.584m
Packaging 3 - Qty 8000
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.083
Packaging 3 - Weight (kg) 7.572kg
Packaging 3 - Width (m) 0.386m
Packaging 4 - Height (m) 1.249m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 96000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.199
Packaging 4 - Weight (kg) 111.48kg
Packaging 4 - Width (m) 0.8m
Packaging Content SKU Unit pieces
Weight 1kg
ETIM 5.0 EC000046
ETIM 6.0 EC000046
