2-Piece Fixing Ties for Edges, 1.0 - 3.0 mm, Side Fixing T30REC5A

EdgeClip-Family, Article number: 156-00003

Features

  • Pre-assembled 2-piece fixing tie with EdgeClip
  • Cable tie head can be moved after bundling
  • EC9, EC10, EC21 and EC22 are for minimum bundle diameters of 1 mm
  • For edges of 1 – 3 mm

Certifications & Approvals

Application

These cable ties and EdgeClip assemblies are ideal for use where holes are not acceptable or where due to temperature problems adhesives will fail. These assemblies are widely used for fixing and bundling cables, pipes and hoses within the automotive industry, harness making, panel buidling and electrical industry.

EdgeClip-Family is suitable for following markets and industries

Application Tool MK3PNSP2, MK3SP, MK20, EVO7
Colour Black (BK)
Description Available with either 'inside' or 'outside' serrated ties these two piece assemblies simply push onto an edge with thicknesses from 1.0 to 3.0mm. The high 'pull off' forces are due to the integrated metal clamp. Different Edge Clip variations are available. One version allows for cables to run parallel to the edge, whilst another allows for installation at 90 degrees to the edge. The clip is simply pushed on by hand and held firmly in place by the integrated metal clamp. No fixing hole is necessary. Combined with the outside serrated (OS) ties, specially designed to protect cables from chafing and wear, the Edge Clip family provides an excellent fastening solution.
Fixation Method EdgeClip, sideway, assembled, 2 piece
GLOBAL PART NAME T30REC5A-PA66HS/PA66HIRHS-BK
Identification Plate Position none
Pack Cont. 500pcs.
Package Quantity per Bag
Product Family EdgeClip-Family
Product Group 2-Piece Fixing Ties for Edges, 1.0 - 3.0 mm, Side Fixing
Type T30REC5A-MC5-BK-D1
Variant Inside Serrated
Bundle ∅ max. 33.0mm
Bundle ∅ min. 4.0mm
for Panel Thickness min - max 1 - 3 mm
Height (H) 1.1mm
Height (H2) 15.5mm

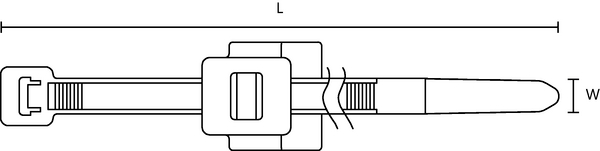

Length (L) 148mm
Length (L2) 14.0mm
Min.Tensile Strength 135N
Width (W) 3.6mm
Width (W2) 10.0mm
Cable Tie Polyamide 6.6, heat stabilised (PA66HS)
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Foot Part Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Hazardous goods No
Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Operating Temperature - °C -40 °C to +105 °C
Operating Temperature Foot Part (Metric) -40 °C to +105 °C
Specifications
EAN / GTIN 4031026251790
Packaging 1 - Height (m) 0.15m
Packaging 1 - Length (m) 0.3m
Packaging 1 - Qty 500
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.01845
Packaging 1 - Weight (kg) 1.1248kg
Packaging 1 - Width (m) 0.41m
Packaging 3 - Height (m) 0.368m
Packaging 3 - Length (m) 0.584m
Packaging 3 - Qty 3000
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.083
Packaging 3 - Weight (kg) 7.5688kg
Packaging 3 - Width (m) 0.386m
Packaging 4 - Height (m) 1.249m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 36000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.199
Packaging 4 - Weight (kg) 111.84kg
Packaging 4 - Width (m) 0.8m
Packaging Content SKU Unit pieces
Weight 1.852kg
ETIM 5.0 EC000046
ETIM 6.0 EC000046
