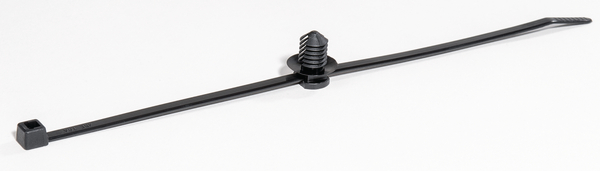

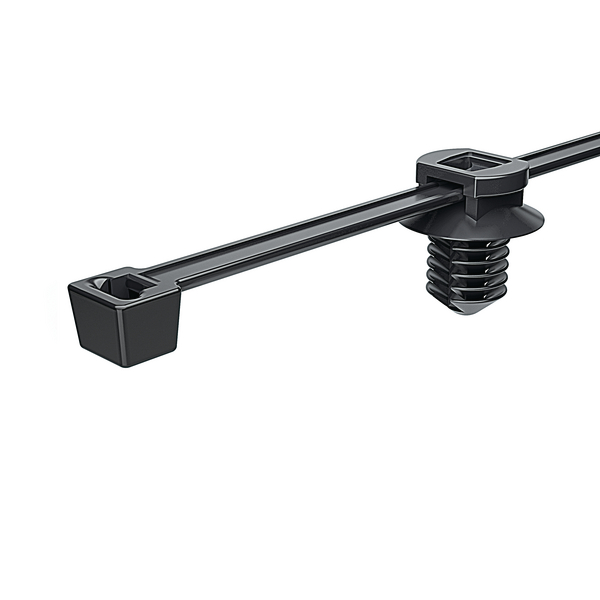

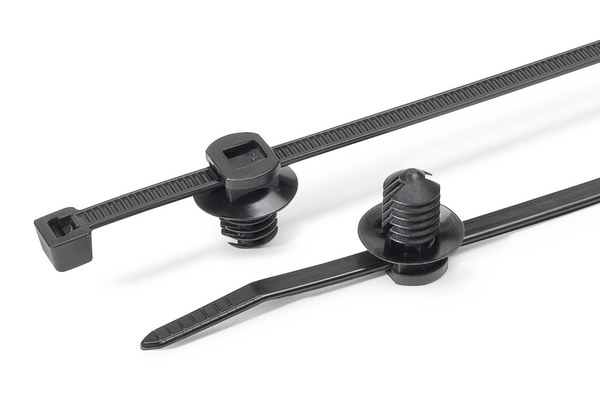

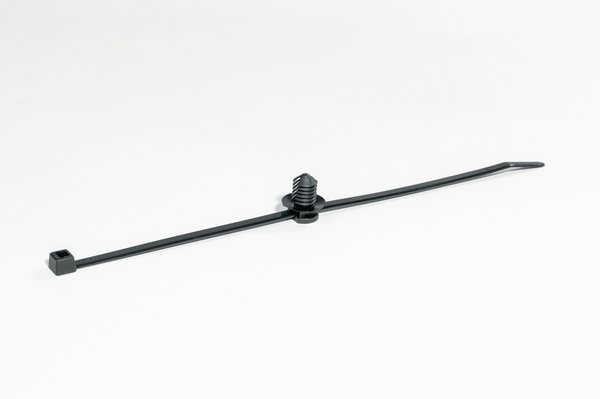

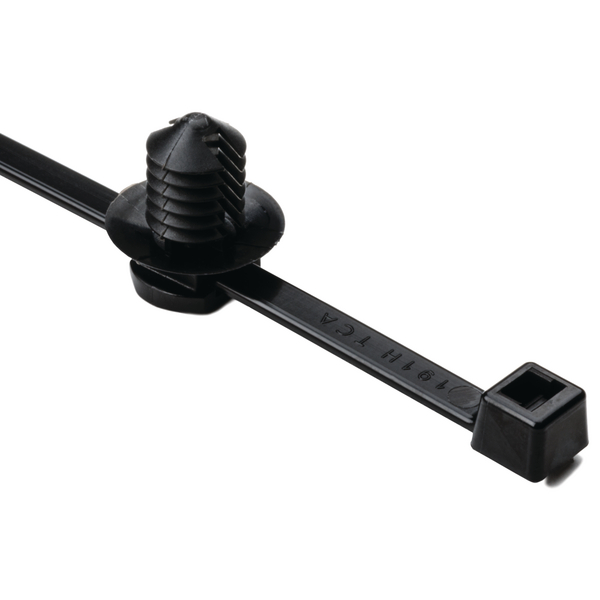

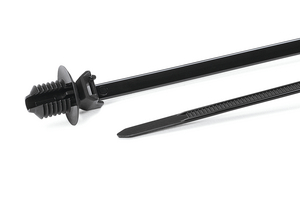

2-Piece Fixing Ties with Fir Tree, with Disc, for Round Holes T50RFT8

Fir Tree Parts FT8, Article number: 111-85880

Features

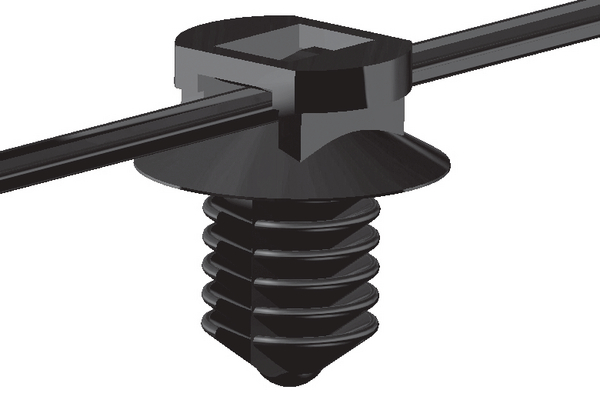

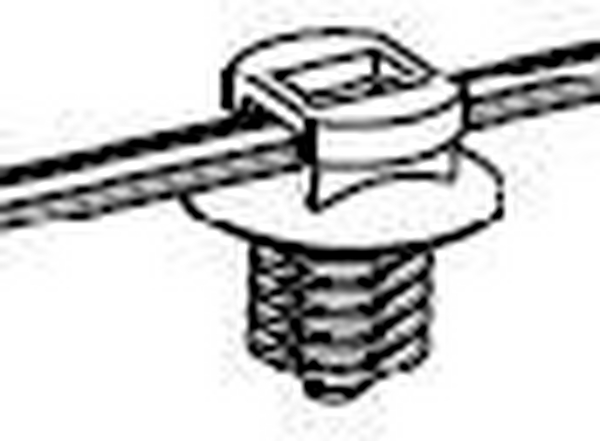

  • Pre-assembled 2-piece fixing tie with fir tree foot part
  • Cable tie head can be moved after bundling
  • Easy to assemble without the need for a tool
  • Disc adjusts tie for pressure from various directions and minimises access of dust, dirt and water
  • Fir tree foot part can be used for a variety of panel thicknesses
  • Suitable for use within threaded holes

Certifications & Approvals

Application

Primarily designed for fixing cable harnesses in the automotive industry their simplicity, and ease of use, has seen these parts used in everything from aircraft, to switch-gear, to washing machines.

Fir Tree Parts FT8 is suitable for following markets and industries

Anti rotation (Yes / No) NO
Application Tool MK3PNSP2, MK3SP, MK6, MK7HT, MK7P, MK20, MK21, EVO7, EVO9
Colour Black (BK)
Description Short (BMEcat) (max. 150 characters) 2-Piece Fixing Tie with Fir Tree and Disc 200x4.6 black
Fixation Method Fir Tree
Fixing Hole Shape Circular
Global Part Name T50RFT8-PA66HS-BK
Identification Plate Position none
Manufacturer Type T50RFT8 PA66HS BK 500
No. of sides for tie attachment 2
Pack Cont. 500pcs.
Product Family Fir Tree Parts FT8
Product Group 2-Piece Fixing Ties with Fir Tree, with Disc, for Round Holes
Quantity per Bag
Releasable Closure (Yes/No) No
Tie Closure plastic pawl
Type T50RFT8.HB6P
Variant Inside Serrated

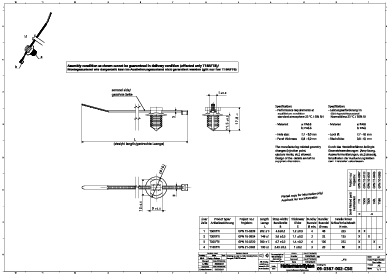

Bundle ∅ max. 45.0mm
Bundle ∅ min. 5.0mm

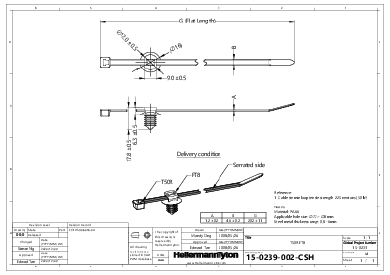

Disc ∅ 16.0mm
for Hole ∅ (FH) 7.7 - 8.0 mm
for Panel Thickness min - max 0.8 - 6 mm
Height (H) 1.2mm
Height (H2) 11.5mm
Length (L) 202mm
Length (L2) 12.0mm
Length of Fir Tree 11.5mm
Min.Tensile Strength 225N
Thickness (T) 1.2mm
Width (W) 4.6mm
Width (W2) 9.0mm
Cable Tie Polyamide 6.6, heat stabilised (PA66HS)
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Foot Part Polyamide 6.6, heat stabilised (PA66HS)
Hazardous goods No
Material Polyamide 6.6, heat stabilised (PA66HS)
Operating Temperature - °C -40 °C to +105 °C, (+145 °C, 500 h)
Operating Temperature Foot Part (Metric) -40 °C to +105 °C, (+145 °C, 500 h)
Specifications
EAN / GTIN 4031026205526
Packaging 1 - Height (m) 0.2m
Packaging 1 - Length (m) 0.395m
Packaging 1 - Qty 500
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.03555
Packaging 1 - Weight (kg) 1.0965kg
Packaging 1 - Width (m) 0.45m
Packaging 3 - Height (m) 0.368m
Packaging 3 - Length (m) 0.584m
Packaging 3 - Qty 4000
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.083
Packaging 3 - Weight (kg) 9.592kg
Packaging 3 - Width (m) 0.386m
Packaging 4 - Height (m) 1.249m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 48000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.199
Packaging 4 - Weight (kg) 136.152kg
Packaging 4 - Width (m) 0.8m
Packaging Content SKU Unit pieces
Weight 2.8kg
ETIM 5.0 EC000046
ETIM 6.0 EC000046
