2-Piece Fixing Ties for Edges, 1.0 - 3.0 mm, Side Fixing T50ROSEC5A

EdgeClip-Family, Article number: 150-40591

Features

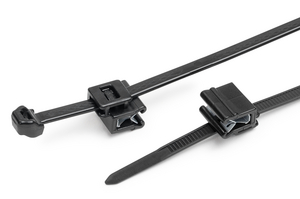

  • Pre-assembled 2-piece fixing tie with EdgeClip
  • Cable tie head can be moved after bundling
  • EC9, EC10, EC21 and EC22 are for minimum bundle diameters of 1 mm
  • For edges of 1 – 3 mm

Certifications & Approvals

Application

These cable ties and EdgeClip assemblies are ideal for use where holes are not acceptable or where due to temperature problems adhesives will fail. These assemblies are widely used for fixing and bundling cables, pipes and hoses within the automotive industry, harness making, panel buidling and electrical industry.

EdgeClip-Family is suitable for following markets and industries

Anti rotation (Yes / No) YES
Application Tool MK3PNSP2, MK3SP, MK6, MK7HT, MK7P, MK20, MK21, EVO7, EVO7SP, EVO9
Colour Black (BK)
Description Short (BMEcat) (max. 150 characters) 2-Piece Fixing Tie 200x4.6 for Edges 1-3 mm HS-black
Fixation Method EdgeClip, sideway, assembled, 2 piece
Global Part Name T50ROSEC5A-PA66HS/PA66HIRHS-BK
Identification Plate Position none
Manufacturer Type T50ROSEC5A PA66HS/PA66HIRHS BK 500
No. of sides for tie attachment 4
Pack Cont. 500pcs.
Product Family EdgeClip-Family
Product Group 2-Piece Fixing Ties for Edges, 1.0 - 3.0 mm, Side Fixing
Quantity per Bag
Releasable Closure (Yes/No) No
Type T50ROSEC5A.HB6P
Variant Outside Serrated

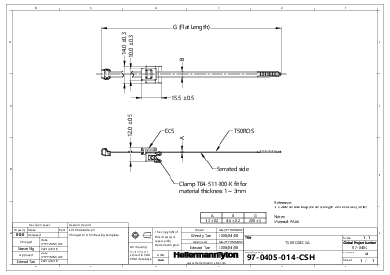

Bundle ∅ max. 45.0mm
Bundle ∅ min. 4.0mm
for Panel Thickness min - max 1 - 3 mm
Height (H) 1.3mm
Height (H2) 15.5mm
Length (L) 200mm
Length (L2) 14.0mm
Min.Tensile Strength 225N
Thickness (T) 1.2mm
Width (W) 4.6mm
Width (W2) 10.0mm
Cable Tie Polyamide 6.6, heat stabilised (PA66HS)
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Foot Part Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Hazardous goods No
Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Operating Temperature - °C -40 °C to +105 °C
Operating Temperature Foot Part (Metric) -40 °C to +105 °C
Specifications
EAN / GTIN 4031026203294
Packaging 1 - Height (m) 0.05m
Packaging 1 - Length (m) 0.12m
Packaging 1 - Qty 500
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00186
Packaging 1 - Weight (kg) 1.42625kg
Packaging 1 - Width (m) 0.31m
Packaging 3 - Height (m) 0.368m
Packaging 3 - Length (m) 0.584m
Packaging 3 - Qty 4000
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.083
Packaging 3 - Weight (kg) 12.23kg
Packaging 3 - Width (m) 0.386m
Packaging 4 - Height (m) 1.249m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 48000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.199
Packaging 4 - Weight (kg) 167.736kg
Packaging 4 - Width (m) 0.8m
Packaging Content SKU Unit pieces
Weight 4.5kg
ETIM 5.0 EC000046
ETIM 6.0 EC000046
UNSPSC Key 39121703
