24/04/2024

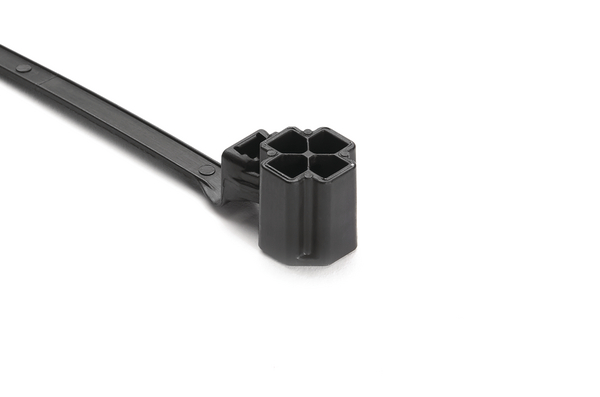

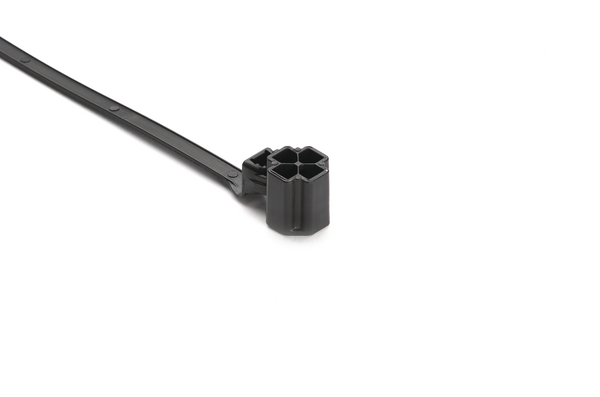

Fixing tie for stud, Ø2.0-50.0mm, black, 1500pcs.
Art.-No. 157-00233 | T50ROSSB5-6U-PA66HIRHSUV-BK |  Details

Four-pawl, three-tooth design delivers outstanding stud retention to keep bundles secure.

    • One-piece fixing ties
    • High specification materials
    • Superior design
    • Suitable for complex applications
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Primarily designed for use in the automotive industry, these parts can be used in a wide variety of applications where weld studs or ISO bolts are used and cables need to be bundled and secured.
    Application Tool ProCut 9 no battery, EVOcut, MK9P, MK9P w/ Upper air, MK10-SB, MK21, EVO7, EVO7SP, EVO7iSP, EVO9, EVO9SP, EVO9HT, EVO9i, EVO9iSP, EVO9iHT
    Colour Black (BK)
    Fixation Method Stud Mount
    Identification Plate Position none
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    Pack Cont. 1500pcs.
    Package Content packed in Carton
    PART DESCRIPTION T50ROSSB5-6U-PA66HIRHSUV-BK
    Product Group 1-piece fixing ties for weld studs
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Bundle Diameter max (metric) 50.0mm
    Bundle ∅ 2.0-50.0mm
    Bundle ∅ min. 2.0mm
    for Hole ∅ (FH) M5, M6, T5, T6
    Height (H) 15.0mm
    Length (L) 218.44mm
    Min.Tensile Strength 225N
    Stud ∅ 5.0 mm, 6.0 mm
    Stud ∅ (imperial) 0.20 ", 0.24"
    Weight/Unit 0.00266kg
    Width (W) 5.1mm
    CE Certification No
    CSA Certified No
    ELV compliant Dir. Art. 4 (2) YES
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C, (+105 °C for 500 h)
    Specifications
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    Country of Origin US
    Customs Number 39269097
    GTIN-13 / EAN 4031026508917
    Packaging 1 - Height (m) 0.196m
    Packaging 1 - Length (m) 0.508m
    Packaging 1 - Qty 1500
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.03097m³
    Packaging 1 - Weight (kg) 3.990001kg
    Packaging 1 - Width (m) 0.311m
    Packaging 3 - Height (m) 0.212725m
    Packaging 3 - Length (m) 0.51435m
    Packaging 3 - Qty 1500
    Packaging 3 - Type Box
    Packaging 3 - Volume (m³) 0.0347m³
    Packaging 3 - Weight (kg) 4.610001kg
    Packaging 3 - Width (m) 0.3175m
    Packaging 4 - Height (m) 1.209m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 30000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.161m³
    Packaging 4 - Weight (kg) 113.2kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
    Show all
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...
