Fixing tie for stud, inside serrated, Ø9.0-40.0mm, black, 100pcs.
Art.-No. 111-07110 | T50RS5-PA66-BK |  Details

Flexible head wraps around cable bundle for easy installation.

    • For 5 mm studs or 5 mm ISO threaded studs
    • Soft-push versions for easy assembly, without tool
    • Eyelet allows excess tail to be tucked neatly away
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads CAD-Download
    Application Primarily designed for use in the automotive industry, these parts can be used in a wide variety of applications where weld studs or ISO bolts are used and cables need to be bundled and secured.
    Application Tool MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7SP, EVO7i, EVO7iSP
    Colour Black (BK)
    Fixation Method Weld Stud Fixing
    Identification Plate Position none
    Local order number T50RS5.NB3P
    Material Polyamide 6.6 (PA66)
    Pack Cont. 100pcs.
    Package Content packed in Bag
    PART DESCRIPTION T50RS5-PA66-BK
    Product Family softpush
    Product Group 1-piece fixing ties for weld studs in the strap
    Releasable Closure (Yes/No) No
    Short Description 1-Piece Fixing Tie for Weld Studs in the strap PA66 190x4.6 black
    Tie Closure plastic pawl
    Variant Inside Serrated
    Bundle Diameter max (metric) 40.0mm
    Bundle ∅ 9.0-40.0mm
    Bundle ∅ min. 9.0mm
    Height (H) 1.5mm
    Height (H2) 14.5mm

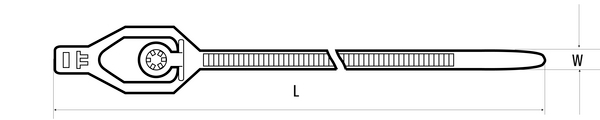

    Length (L) 190mm
    Max Stud Length 14.0mm
    Min Stud Length 8.0mm
    Min.Tensile Strength 225N
    Stud ∅ 5.0 mm
    Stud ∅ (imperial) .20"
    Thickness (T) 1.5mm
    Weight/Unit 0.0012kg
    Width (W) 4.6mm
    ELV compliant Dir. Art. 4 (2) YES
    Flammability UL 94 V2
    Hazardous Goods No
    Operating Temperature -40 °C to +85 °C
    Specifications
    Country of Origin GB
    Customs Number 39269097
    GTIN-13 / EAN 5022660325892
    Packaging 1 - Height (m) 0.05m
    Packaging 1 - Length (m) 0.356m
    Packaging 1 - Qty 100
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.00408m³
    Packaging 1 - Weight (kg) 0.380001kg
    Packaging 1 - Width (m) 0.229m
    Packaging 3 - Height (m) 0.364m
    Packaging 3 - Length (m) 0.563m
    Packaging 3 - Qty 4000
    Packaging 3 - Type Box
    Packaging 3 - Volume (m³) 0.0777m³
    Packaging 3 - Weight (kg) 16.16104kg
    Packaging 3 - Width (m) 0.379m
    Packaging 4 - Height (m) 1.236m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 48000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.187m³
    Packaging 4 - Weight (kg) 214.932kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121717
