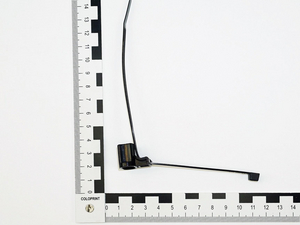

Fixing tie for stud, inside serrated, Ø2.0-45.0mm, black, 500pcs.
Art.-No. 156-01702 | T50RSB5CSD-PA66HS-BK Details

  • Pre-assembled with cable tie and weld stud mounting base
  • Quick and easy installation
  • Head rotates into perfect position for installation
  • 'Soft-push' design for tool-free installation
  • Mushroom-shaped SBH handles insulation or a sound-deadening blanket
  • SBS ideal for installation prior to attaching cable (i.e. no lateral tolerances required)
  • SB5 allow lateral tolerance for fixing point
Show more

Request your individual offer now

Application Primarily designed for use in the automotive industry, these parts can be used in a wide variety of applications where 5mm weld studs or 5mm ISO bolts are used and cables need to be bundled and secured
Application Tool MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7SP, EVO7i
Colour Black (BK)
Fixation Method Weld Stud Fixing
Identification Plate Position none
Local order number T50RSB5CSD_PA66HS_BK
Material Polyamide 6.6, heat stabilised (PA66HS)

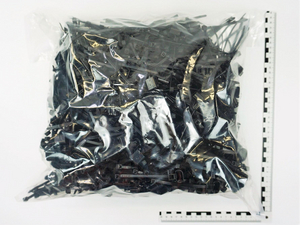

Pack Cont. 500pcs.
Package Content packed in Bag
PART DESCRIPTION T50RSB5CSD-PA66HS-BK
Product Group 2-Piece Fixing Ties for Weld , moveable
Tie Closure plastic pawl
Variant Inside Serrated
Bundle Diameter max (Metric) 45.0mm
Bundle ∅ 2.0-45.0mm
Bundle ∅ min. 2.0mm
Height (H) 1.2mm
Height (H2) 17.2mm
Length (L) 200mm
Length (L2) 22mm
Max Stud Length 15.5mm
Min Stud Length 14.2mm
Min.Tensile Strength 225N
Stud ∅ 5.0 mm
Weight/Unit 0.003858kg
Width (W) 4.6mm
Width (W2) 23.1mm
ELV compliant Dir. Art. 4 (2) YES
Hazardous Goods No
Operating Temperature -40 °C to +105 °C, (+105 °C for 500 h)
Specifications
Country of Origin PL
Customs Number 39269097
GTIN-13 / EAN 4031026576381
Packaging 1 - Height (m) 0.18m
Packaging 1 - Length (m) 0.47m
Packaging 1 - Qty 500
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.04611
Packaging 1 - Weight (kg) 1.972597kg
Packaging 1 - Width (m) 0.545m
Packaging 3 - Height (m) 0.368m
Packaging 3 - Length (m) 0.584m
Packaging 3 - Qty 2000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.083
Packaging 3 - Weight (kg) 8.710388kg
Packaging 3 - Width (m) 0.386m
Packaging 4 - Height (m) 1.248m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 24000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.198
Packaging 4 - Weight (kg) 125.544kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121717
