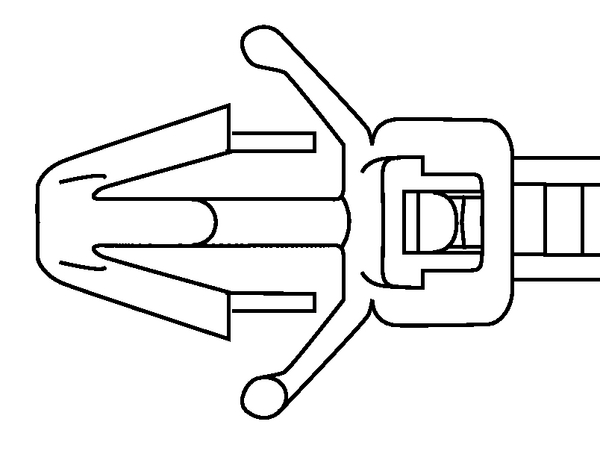

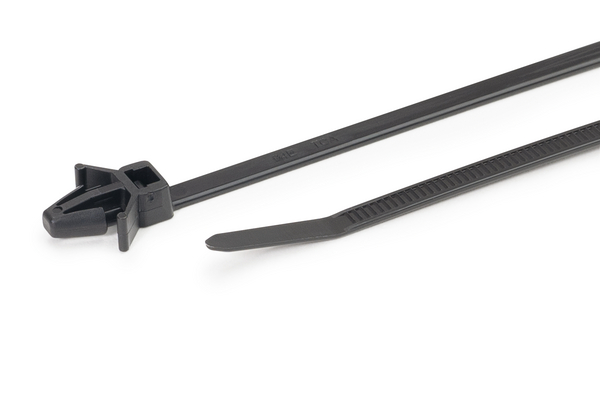

1-Piece Fixing Ties with Arrowhead, with Wings T50RSFM

1-Piece Fixing Ties with Arrowhead, with Wings, for Round Holes, Article number: 111-85729

Features

  • Easy to assemble without the need for a tool
  • Cable tie head always situated in defined position
  • Arrowhead simply locks into place
  • Supporting legs provide a secure and firm fixing in areas where space is limited

Certifications & Approvals

Application

For bundling and fixing of cable harnesses, pipes and hoses in many different industries, including automotive, aerospace, white goods manufacturing and panel building.

1-Piece Fixing Ties with Arrowhead, with Wings, for Round Holes is suitable for following markets and industries

Application Tool MK3PNSP2, MK3SP, MK6, MK7HT, MK7P, MK20, MK21, EVO7, EVO9
Colour Natural (NA)
Description Short (BMEcat) (max. 150 characters) 1-Piece Fixing Tie with Arrowhead and Wings PA66 200x4.7 natural
Fixation Method Arrowhead
GLOBAL PART NAME T50RSFM-PA66-NA
Identification Plate Position none
Pack Cont. 100pcs.
Package Quantity per pieces
Product Family 1-Piece Fixing Ties with Arrowhead, with Wings, for Round Holes
Product Group 1-Piece Fixing Ties with Arrowhead, with Wings
Releasable Closure (Yes/No) No
Tie Closure plastic pawl
Type T50RSFM.NN3P
Variant Inside Serrated
Bundle ∅ max. 45.0mm
Bundle ∅ min. 1.5mm
for Hole ∅ (FH) 6.0 - 6.6 mm
for Panel Thickness min - max 0.7 - 3 mm
Length (L) 205mm
Min.Tensile Strength 225N
Thickness (T) 1.3mm
Width (W) 4.6mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Hazardous goods No
Material Polyamide 6.6 (PA66)
Operating Temperature - °C -40 °C to +85 °C
Specifications
EAN / GTIN 4031026107431
Packaging 1 - Height (m) 0.038m
Packaging 1 - Length (m) 0.15m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00185
Packaging 1 - Weight (kg) 0.167kg
Packaging 1 - Width (m) 0.325m
Packaging 3 - Height (m) 0.204m
Packaging 3 - Length (m) 0.591m
Packaging 3 - Qty 4000
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.048
Packaging 3 - Weight (kg) 7.33kg
Packaging 3 - Width (m) 0.398m
Packaging 4 - Height (m) 1.235m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 80000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.186
Packaging 4 - Weight (kg) 167.6kg
Packaging 4 - Width (m) 0.8m
Packaging Content SKU Unit pieces
Weight 1.6kg
ETIM 5.0 EC000046
ETIM 6.0 EC000046
