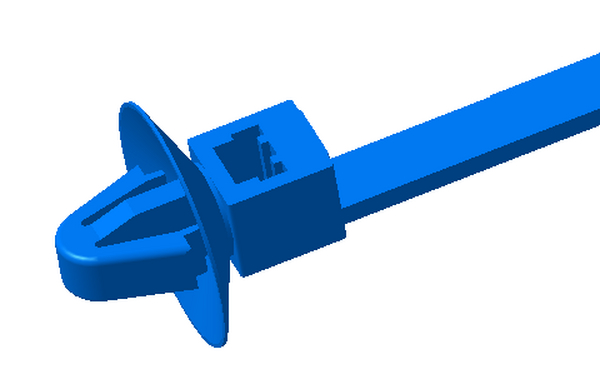

1-Piece Fixing Ties with Arrowhead, with Disc  T50SD6

for round holes, Article number: 126-01401

Features

  • Easy to install without the need for a tool
  • Arrowhead simply locks into place
  • Disc adjusts tie for pressures from various directions and minimises access of dust, dirt and water
  • Cable tie head always situated in a defined position
  • KSFT-types with specially rounded arrowhead minimise the assembly height

Certifications & Approvals

Application

With a diverse range of fixing possibilities these ties are ideal for use in many different industries, including automotive, aerospace, white goods manufacture and panel building.

for round holes is suitable for following markets and industries

Application Tool MK3PNSP2, MK3SP, MK6, MK7HT, MK7P, MK20, MK21, EVO7, EVO9
Colour Natural (NA)
Fixation Method Arrowhead
GLOBAL PART NAME T50SD6-PA66-NA
Identification Plate Position none
Pack Cont. 500
Package Quantity per Bag
Product Family for round holes
Product Group 1-Piece Fixing Ties with Arrowhead, with Disc
Releasable Closure (Yes/No) No
Tie Closure plastic pawl
Type T50SD6.NN6P
Variant Inside Serrated
Bundle ∅ max. 31.0mm
Bundle ∅ min. 1.5mm
Disc ∅ 18.0mm
for Hole ∅ (FH) 6.3 - 7.5 mm
for Panel Thickness min - max 0.6 - 1.8 mm
Length (L) 160.0mm
Min.Tensile Strength 225N
Thickness (T) 1.5mm
Width (W) 5.0mm
Flammability UL 94 V2
Material Polyamide 6.6 (PA66)
Operating Temperature - °C -40 °C to +85 °C
Specifications
EAN / GTIN 5022660326394
Packaging Content SKU Unit pieces
ETIM 5.0 EC000046
ETIM 6.0 EC000046
