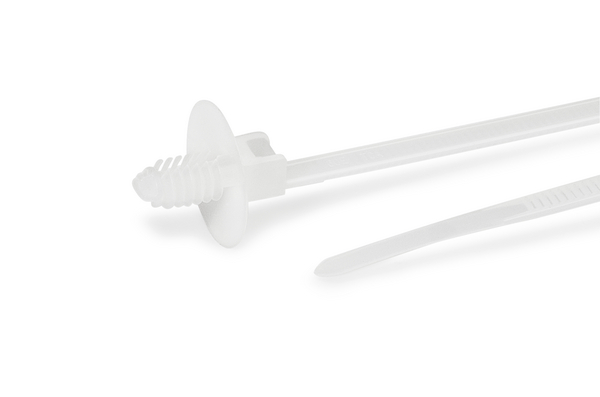

1-Piece Fixing Ties with Fir Tree, with Disc T50SDP6

1-Piece Fixing Ties with Fir Tree, with Disc, for Round Holes, Article number: 157-01104

Features

  • Cable tie head always situated in defined position
  • Easy to assemble without the need for a tool
  • Disc adjusts tie for pressure from various directions and minimises access of dust, dirt and water
  • Fir tree foot part can be used for a variety of panel thicknesses
  • Suitable for use within threaded holes

Certifications & Approvals

Application

Primarily designed for fixing cable harnesses in the automotive industry their simplicity and ease of use has resulted in these parts being used in many other industries, for example: aviation, switch-gear manufacture and white goods.

1-Piece Fixing Ties with Fir Tree, with Disc, for Round Holes is suitable for following markets and industries

Application Tool MK3PNSP2, MK3SP, MK7P, MK20, EVO7, EVO7SP
Colour Natural (NA)
Fixation Method Fir Tree
GLOBAL PART NAME T50SDP6-PA66-NA
Identification Plate Position none
Pack Cont. 250
Package Quantity per Bag
Product Family 1-Piece Fixing Ties with Fir Tree, with Disc, for Round Holes
Product Group 1-Piece Fixing Ties with Fir Tree, with Disc
Releasable Closure (Yes/No) No
Tie Closure plastic pawl
Type T50SDP6.NN5P
Variant Inside Serrated
Bundle ∅ max. 31mm
Bundle ∅ min. 1.5mm
Disc ∅ 22.0mm
for Hole ∅ (FH) 6.3 - 7.1 mm
for Panel Thickness min - max 0.8 - 7 mm
Length (L) 170mm
Min.Tensile Strength 225N
Width (W) 5.0mm
Flammability UL 94 V2
Material Polyamide 6.6 (PA66)
Operating Temperature - °C -40 °C to +85 °C
Specifications
EAN / GTIN 5022660326530
Packaging 3 - Height (m) 0.36m
Packaging 3 - Length (m) 0.58m
Packaging 3 - Qty 3000
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0793
Packaging 3 - Weight (kg) 4.80kg
Packaging 3 - Width (m) 0.38m
Packaging 4 - Height (m) 1.08m
Packaging 4 - Length (m) 1.16m
Packaging 4 - Qty 36000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 0.952
Packaging 4 - Weight (kg) 77.0kg
Packaging 4 - Width (m) 0.76m
Packaging Content SKU Unit pieces
Weight 1.5kg
ETIM 5.0 EC000046
ETIM 6.0 EC000046
