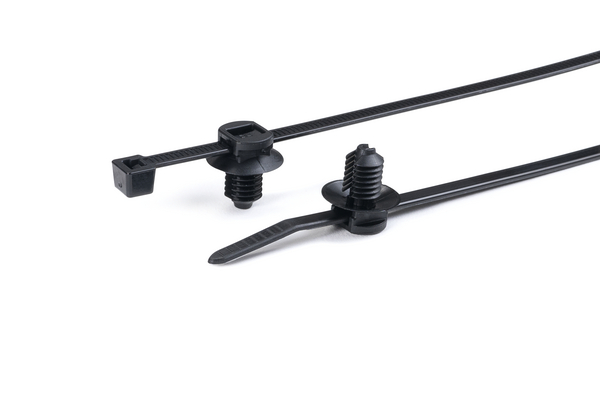

2-Piece Fixing Ties with Fir Tree, with Disc T50SFT6LG

Fir Tree Parts FT6, Article number: 150-31093

Features

  • Pre-assembled 2-piece fixing tie with fir tree foot part
  • Cable tie head can be moved after bundling
  • Easy to assemble without the need for a tool
  • Disc adjusts tie for pressure from various directions and minimises access of dust, dirt and water
  • Fir tree foot part can be used for a variety of panel thicknesses
  • Suitable for use within threaded holes

Certifications & Approvals

Application

Primarily designed for fixing cable harnesses in the automotive industry their simplicity, and ease of use, has seen these parts used in everything from aircraft, to switch-gear, to washing machines.

Fir Tree Parts FT6 is suitable for following markets and industries

Application Tool MK3PNSP2, MK3SP, MK7HT, MK7P, MK20, EVO7
Colour Black (BK)
Description Short (BMEcat) (max. 150 characters) 2-Piece Fixing Tie with Fir Tree and Disc 150x4.6 black
Fixation Method Fir Tree
Global Part Name T50SFT6LG-PA66HS/PA66HIRHS-BK
Identification Plate Position none
Manufacturer Type T50SFT6LG PA66HS/PA66HIRHS BK 500
Pack Cont. 500pcs.
Product Family Fir Tree Parts FT6
Product Group 2-Piece Fixing Ties with Fir Tree, with Disc
Quantity per Bag
Releasable Closure (Yes/No) No
Tie Closure plastic pawl
Type T50SFT6LG-MC5-BK-D1
Variant Inside Serrated
Bundle ∅ max. 36.0mm
Bundle ∅ min. 4.0mm
Disc ∅ 16.0mm
for Hole ∅ (FH) 6.4 - 7.1 mm
for Panel Thickness min - max 0.8 - 6 mm
Height (H) 1.2mm
Height (H2) 11.1mm
Length (L) 150mm
Length (L2) 11.6mm
Length (L3) 17.5mm
Min.Tensile Strength 222N
Thickness (T) 1.2mm
Width (W) 4.6mm
Width (W2) 9.0mm
Width (W3) 5.0mm
Cable Tie Polyamide 6.6, heat stabilised (PA66HS)
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Foot Part Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Hazardous goods No
Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Operating Temperature - °C -40 °C to +105 °C
Operating Temperature Foot Part (Metric) -40 °C to +105 °C
Specifications
EAN / GTIN 4031026208237
Packaging 1 - Height (m) 0.15m
Packaging 1 - Length (m) 0.3m
Packaging 1 - Qty 500
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.01845
Packaging 1 - Weight (kg) 0.8248kg
Packaging 1 - Width (m) 0.41m
Packaging 3 - Height (m) 0.368m
Packaging 3 - Length (m) 0.584m
Packaging 3 - Qty 5000
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.083
Packaging 3 - Weight (kg) 9.068kg
Packaging 3 - Width (m) 0.386m
Packaging 4 - Height (m) 1.249m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 60000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.199
Packaging 4 - Weight (kg) 129.84kg
Packaging 4 - Width (m) 0.8m
Packaging Content SKU Unit pieces
Weight 1.5kg
ETIM 5.0 EC000046
ETIM 6.0 EC000046
UNSPSC Key 39121703
