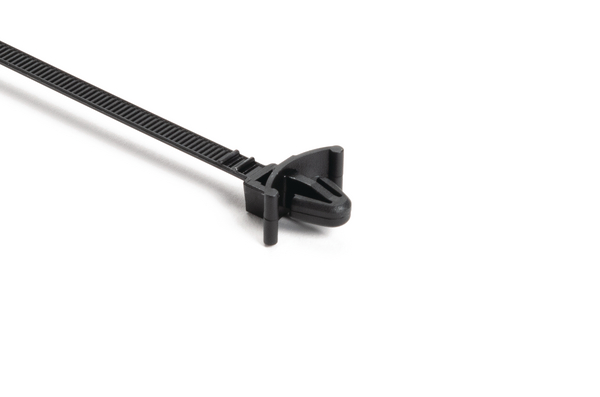

1-Piece Fixing Ties with Arrowhead, with Wings T50SL6

1-Piece Fixing Ties with Arrowhead, with Wings, for Round Holes, Article number: 111-85460

Features

  • Easy to assemble without the need for a tool
  • Cable tie head always situated in defined position
  • Arrowhead simply locks into place
  • Supporting legs provide a secure and firm fixing in areas where space is limited

Certifications & Approvals

Application

For bundling and fixing of cable harnesses, pipes and hoses in many different industries, including automotive, aerospace, white goods manufacturing and panel building.

1-Piece Fixing Ties with Arrowhead, with Wings, for Round Holes is suitable for following markets and industries

Application Tool MK3PNSP2, MK3SP, MK6, MK7HT, MK7P, MK20, MK21, EVO7, EVO7SP, EVO9
Colour Black (BK)
Description Short (BMEcat) (max. 150 characters) 1-Piece Fixing Tie with Arrowhead and Wings PA66 165x4.6 black
Fixation Method Arrowhead
GLOBAL PART DESCRIPTION T50SL6-PA66-BK
Identification Plate Position none
Pack Cont. 500pcs.
Package Quantity per pcs.
Product Family 1-Piece Fixing Ties with Arrowhead, with Wings, for Round Holes
Product Group 1-Piece Fixing Ties with Arrowhead, with Wings
Releasable Closure (Yes/No) No
Tie Closure plastic pawl
Type T50SL6.NB6P
Variant Inside Serrated
Bundle ∅ max. 34.0mm
Bundle ∅ min. 1.5mm
for Hole ∅ (FH) 6.3 - 7.5 mm
for Panel Thickness min - max 0.5 - 2.5 mm
for Panel Thickness min - max 0 - 0.1 "
Length (L) 165mm
Min.Tensile Strength 225N
Panel Thickness max. 0.5 – 2.5mm
Thickness (T) 1.2mm
Width (W) 4.6mm
Width (W2) 18.5mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Hazardous good No
Material Polyamide 6.6 (PA66)
Operating Temperature - °C -40 °C to +85 °C
Specifications
EAN / GTIN 5022660326615
Packaging 1 - Height (m) 0.105m
Packaging 1 - Length (m) 0.435m
Packaging 1 - Qty 500
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.01439
Packaging 1 - Weight (kg) 0.779kg
Packaging 1 - Width (m) 0.315m
Packaging 3 - Height (m) 0.364m
Packaging 3 - Length (m) 0.563m
Packaging 3 - Qty 5000
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0777
Packaging 3 - Weight (kg) 8.751kg
Packaging 3 - Width (m) 0.379m
Packaging 4 - Height (m) 1.236m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 60000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.187
Packaging 4 - Weight (kg) 126.012kg
Packaging 4 - Width (m) 0.8m
Weight 0.779kg
ETIM 5.0 EC000046
ETIM 6.0 EC000046
UNSPSC Key 39121717
