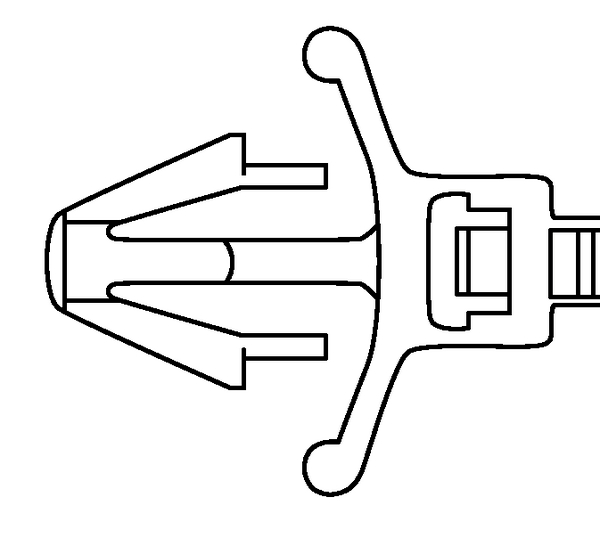

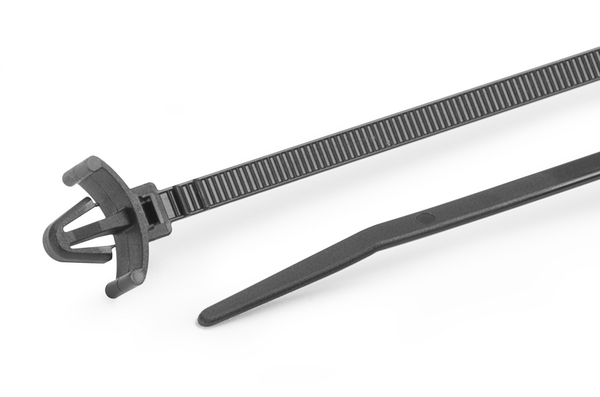

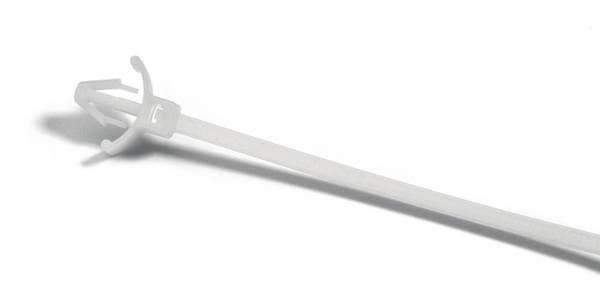

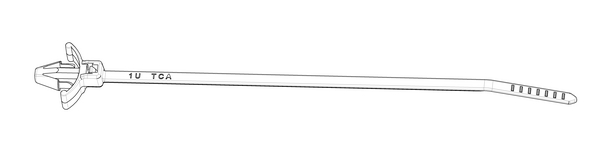

1-Piece Fixing Ties with Arrowhead, with Wings T50SL6

1-Piece Fixing Ties with Arrowhead, with Wings, for Round Holes, Article number: 111-85469

Features

  • Easy to assemble without the need for a tool
  • Cable tie head always situated in defined position
  • Arrowhead simply locks into place
  • Supporting legs provide a secure and firm fixing in areas where space is limited

Certifications & Approvals

Application

For bundling and fixing of cable harnesses, pipes and hoses in many different industries, including automotive, aerospace, white goods manufacturing and panel building.

1-Piece Fixing Ties with Arrowhead, with Wings, for Round Holes is suitable for following markets and industries

Application Tool MK3PNSP2, MK3SP, MK6, MK7HT, MK7P, MK20, MK21, EVO7, EVO7SP, EVO9
Colour Natural (NA)
Fixation Method Arrowhead
GLOBAL PART NAME T50SL6-PA66-NA
Identification Plate Position none
Pack Cont. 500
Package Quantity per Bag
Product Family 1-Piece Fixing Ties with Arrowhead, with Wings, for Round Holes
Product Group 1-Piece Fixing Ties with Arrowhead, with Wings
Releasable Closure (Yes/No) No
Tie Closure plastic pawl
Type T50SL6.NN6P
Variant Inside Serrated
Bundle ∅ max. 34.0mm
Bundle ∅ min. 1.5mm
Disc ∅ 18.5mm
for Hole ∅ (FH) 6.3 - 7.5 mm
for Panel Thickness min - max 0.5 - 2.5 mm
Length (L) 165mm
Min.Tensile Strength 225N
Thickness (T) 1.2mm
Width (W) 4.6mm
Width (W2) 18.5mm
Flammability UL 94 V2
Material Polyamide 6.6 (PA66)
Operating Temperature - °C -40 °C to +85 °C
Specifications
EAN / GTIN 5022660326622
Packaging Content SKU Unit pieces
ETIM 5.0 EC000046
ETIM 6.0 EC000046
UNSPSC Key 39121703
