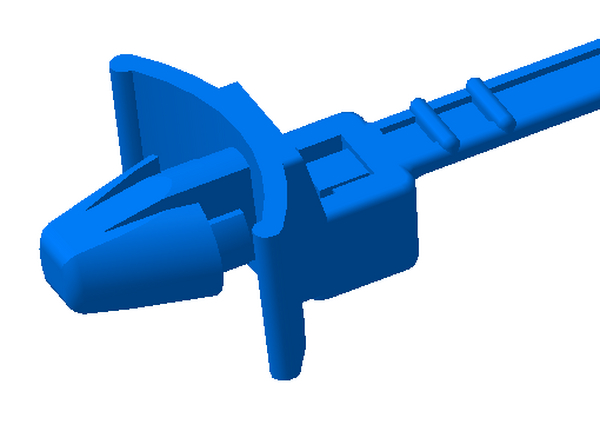

1-Piece Fixing Ties with Arrowhead, with Wings T50SL7

1-Piece Fixing Ties with Arrowhead, with Wings, for Round Holes, Article number: 111-85479

Features

  • Easy to assemble without the need for a tool
  • Cable tie head always situated in defined position
  • Arrowhead simply locks into place
  • Supporting legs provide a secure and firm fixing in areas where space is limited

Certifications & Approvals

Application

For bundling and fixing of cable harnesses, pipes and hoses in many different industries, including automotive, aerospace, white goods manufacturing and panel building.

1-Piece Fixing Ties with Arrowhead, with Wings, for Round Holes is suitable for following markets and industries

Application Tool MK3PNSP2, MK3SP, MK6, MK7HT, MK7P, MK20, MK21, EVO7, EVO7SP, EVO9
Colour Natural (NA)
Fixation Method Arrowhead
GLOBAL PART NAME T50SL7-PA66-NA
Identification Plate Position none
Pack Cont. 500pcs.
Package Quantity per Bag
Product Family 1-Piece Fixing Ties with Arrowhead, with Wings, for Round Holes
Product Group 1-Piece Fixing Ties with Arrowhead, with Wings
Releasable Closure (Yes/No) No
Tie Closure plastic pawl
Type T50SL7.NN6P
Variant Inside Serrated
Bundle ∅ max. 34.0mm
Bundle ∅ min. 1.5mm
for Hole ∅ (FH) 6.9 - 7.1 mm
for Panel Thickness min - max 0.8 - 2.5 mm
Height (H) 10.0mm
Length (L) 165mm
Min.Tensile Strength 225N
Thickness (T) 1.2mm
Width (W) 4.6mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Hazardous goods No
Material Polyamide 6.6 (PA66)
Operating Temperature - °C -40 °C to +85 °C
Specifications
EAN / GTIN 5022660326646
Packaging 1 - Height (m) 0.109m
Packaging 1 - Length (m) 0.265m
Packaging 1 - Qty 500
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00973
Packaging 1 - Weight (kg) 1.6kg
Packaging 1 - Width (m) 0.337m
Packaging 3 - Height (m) 0.368m
Packaging 3 - Length (m) 0.584m
Packaging 3 - Qty 5000
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.083
Packaging 3 - Weight (kg) 16.82kg
Packaging 3 - Width (m) 0.386m
Packaging 4 - Height (m) 1.249m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 60000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.199
Packaging 4 - Weight (kg) 222.84kg
Packaging 4 - Width (m) 0.8m
Packaging Content SKU Unit pieces
Weight 3.2kg
ETIM 5.0 EC000046
ETIM 6.0 EC000046
UNSPSC Key 39121703
