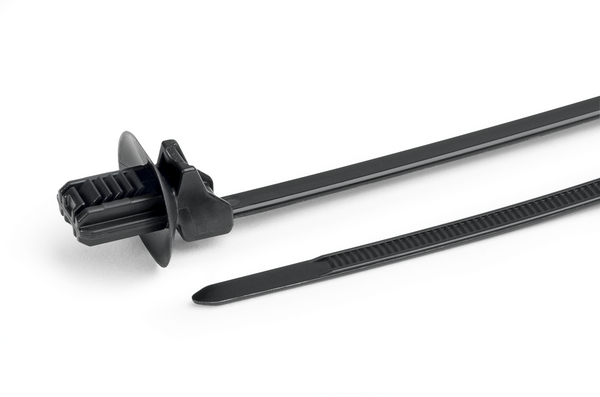

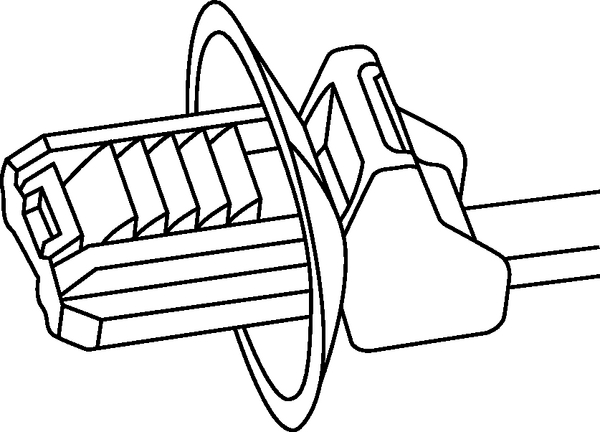

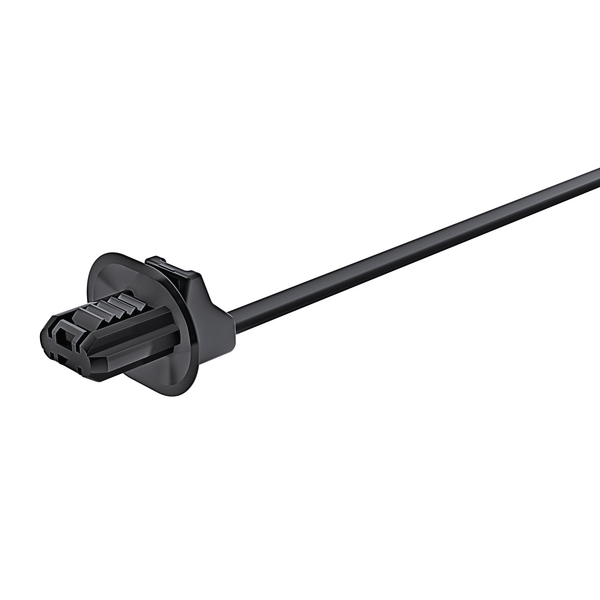

1-Piece Fixing Ties with Fir Tree, with Disc T50SOS2DOP62X122-E

1-Piece Fixing Ties with Fir Tree, with Disc, for Oval Holes, Article number: 157-00014

Features

  • Cable tie head always situated in defined position
  • Easy to assemble without the need for a tool
  • Disc adjusts tie for pressure from various directions and minimises access of dust, dirt and water
  • Fir tree foot part can be used for a variety of panel thicknesses
  • Suitable for use within threaded holes
  • Versions for oval holes feature anti-twist protection

Certifications & Approvals

Application

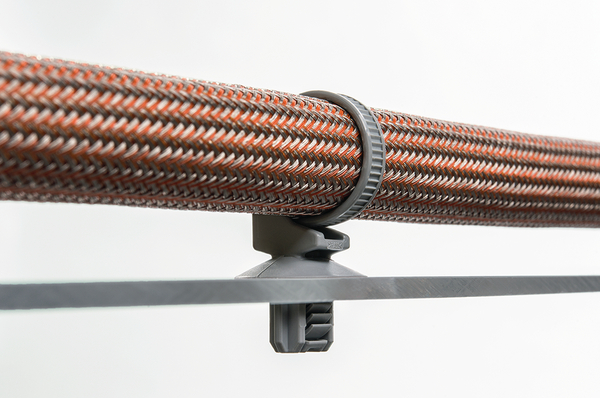

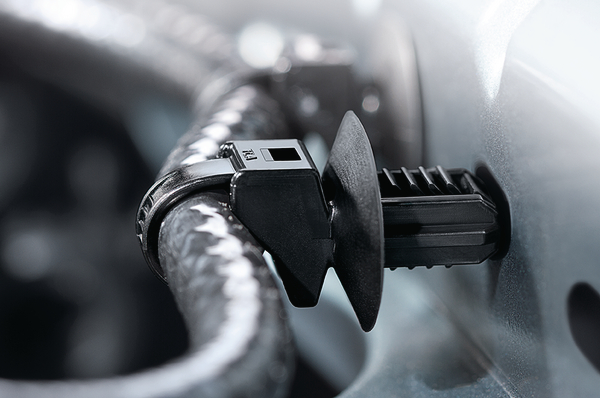

Primarily designed for fixing cable harnesses in the automotive industry their simplicity, and ease of use, has seen these parts used in everything from aircraft, to switch-gear, to washing machines.

1-Piece Fixing Ties with Fir Tree, with Disc, for Oval Holes is suitable for following markets and industries

Anti rotation (Yes / No) YES
Application Tool MK3PNSP2, MK3SP, MK6, MK7HT, MK7P, MK20, MK21, EVO7, EVO9
Colour Black (BK)
Fixation Method Fir Tree for oval holes
Fixing Hole Shape Oval
GLOBAL PART DESCRIPTION T50SOS2DOP62X122-E-PA66HS-BK
Identification Plate Position none
Pack Cont. 1500pcs.
Package Quantity per Bag
Product Family 1-Piece Fixing Ties with Fir Tree, with Disc, for Oval Holes
Product Group 1-Piece Fixing Ties with Fir Tree, with Disc
Releasable Closure (Yes/No) No
Tie Closure plastic pawl
Type T50SOS2DOP62X122-E.HSB6P
Variant Outside Serrated
Bundle ∅ max. 35.0mm
Bundle ∅ min. 1.0mm
Disc ∅ 16.0 x 21.0mm
for Hole ∅ (FH) 6.2 x 12.2 mm
for Panel Thickness min - max 0.6 - 6 mm
for Panel Thickness min - max 0 - 0.2 "
Height (H) 10.5mm

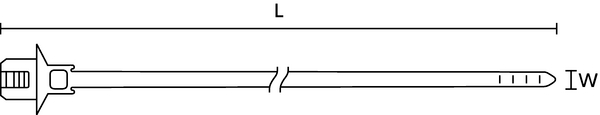

Length (L) 164.0mm
Min Stud Length 10.5mm
Min.Tensile Strength 225N
Panel Thickness max. 0.6 – 6.0mm
Thickness (T) 1.3mm
Width (W) 4.6mm
Cable Tie Polyamide 6.6, heat stabilised (PA66HS)
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Hazardous good No
Material Polyamide 6.6, heat stabilised (PA66HS)
Operating Temperature - °C -40 °C to +105 °C
Specifications
EAN / GTIN 4031026258171
Packaging 1 - Height (m) 0.19m
Packaging 1 - Length (m) 0.55m
Packaging 1 - Qty 1500
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.06793
Packaging 1 - Weight (kg) 3.053492kg
Packaging 1 - Width (m) 0.65m
Packaging 3 - Height (m) 0.538m
Packaging 3 - Length (m) 0.584m
Packaging 3 - Qty 6000
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.1213
Packaging 3 - Weight (kg) 13.313968kg
Packaging 3 - Width (m) 0.386m
Packaging 4 - Height (m) 1.22m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 48000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.171
Packaging 4 - Weight (kg) 127.496kg
Packaging 4 - Width (m) 0.8m
Weight 2.994kg
ETIM 5.0 EC000046
ETIM 6.0 EC000046
