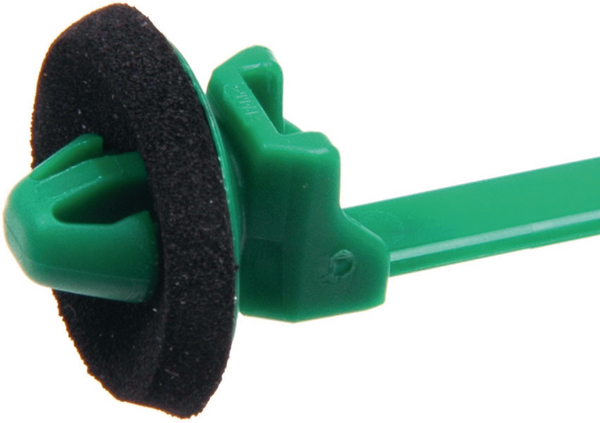

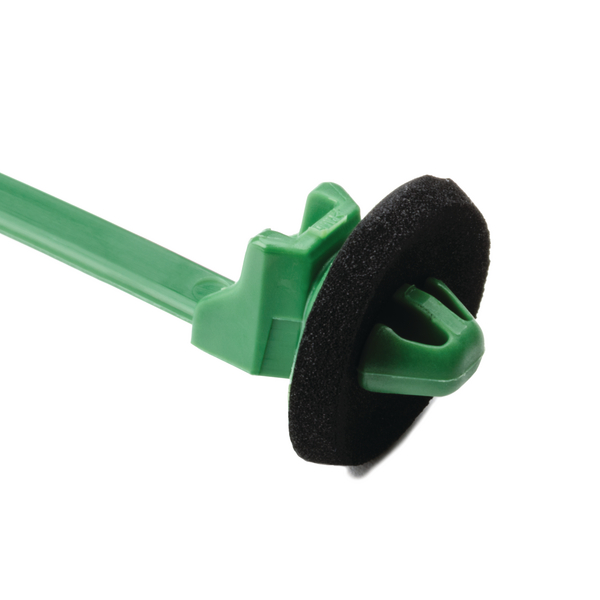

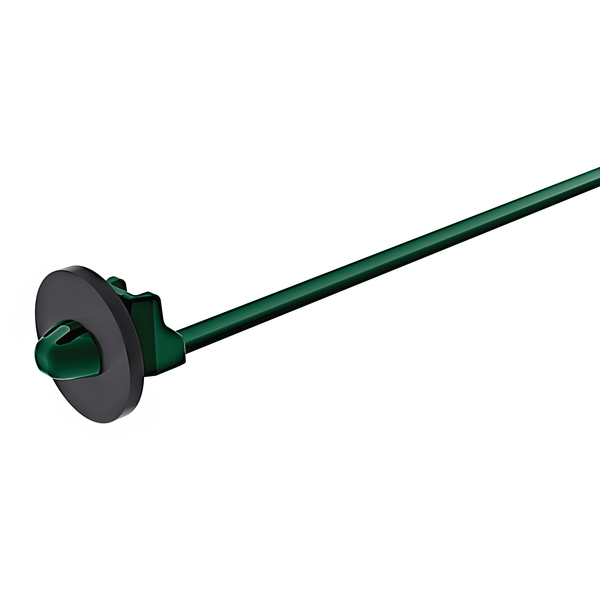

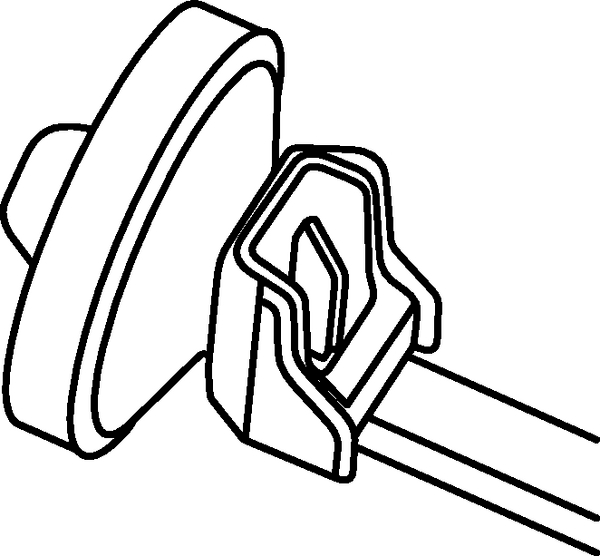

1-Piece Fixing Ties with Arrowhead, with Disc, sealed T50SOSSFT6.5E-MDL

for Round holes, Article number: 126-03100

Features

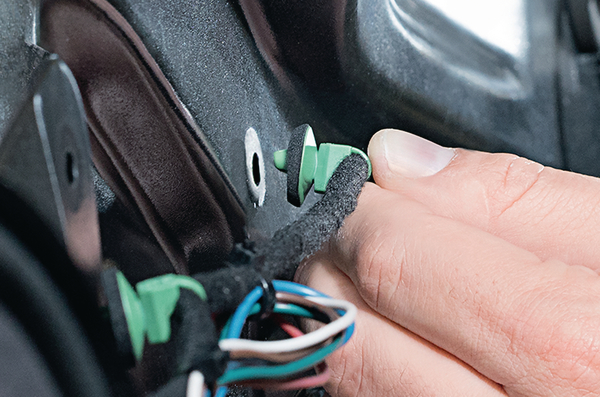

  • Easy to assemble without the need for a tool
  • Arrowhead simply locks into place
  • Disc adjusts the tie for pressures from various directions
  • Cable tie head always situated in defined position
  • Cellular rubber seal minimises access of dust, dirt and water
  • T50SOSSFT6,5E-MD with lasered seal and T60SOSSFT6,5E-MD made from PA6.6 HS are tested acc. IEC60529 and fulfil IP67

Certifications & Approvals

Application

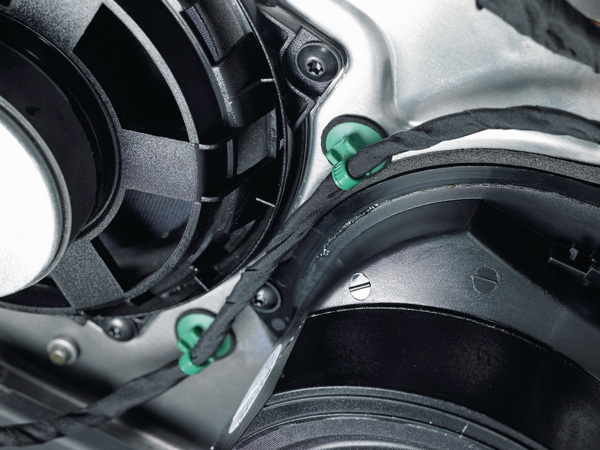

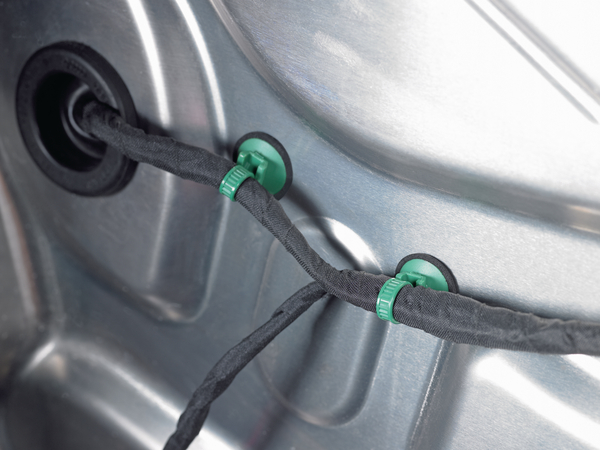

The parts are mainly used in the automotive industry, e.g. for door harnesses.

for Round holes is suitable for following markets and industries

Anti rotation (Yes / No) NO
Application Tool MK3PNSP2, MK3SP, MK6, MK7HT, MK7P, MK20, MK21, EVO7, EVO9
Colour Green (GN)
Description Short (BMEcat) (max. 150 characters) 1-Piece Fixing Tie with Arrowhead and Disc, sealed, PA66HS 160x4.6 mm green
Fixation Method Arrowhead
Fixing Hole Shape Circular
GLOBAL PART NAME T50SOSSFT6.5E-MDL-PA66HS-GN
Identification Plate Position none
Pack Cont. 500pcs.
Package Quantity per Bag
Product Family for Round holes
Product Group 1-Piece Fixing Ties with Arrowhead, with Disc, sealed
Releasable Closure (Yes/No) No
Tie Closure plastic pawl
Type 126-03100.HG6P
Variant Outside Serrated
Bundle ∅ max. 30.0mm
Bundle ∅ min. 1.5mm
Disc ∅ 16.0mm
for Hole ∅ (FH) 6.3 - 6.7 mm
for Panel Thickness min - max 0.6 - 1.8 mm

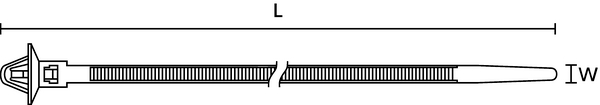

Length (L) 158.8mm
Length of Fir Tree 7.0mm
Min.Tensile Strength 225N
Thickness (T) 1.3mm
Width (W) 4.6mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Hazardous goods No
Material Polyamide 6.6, heat stabilised (PA66HS)
Operating Temperature - °C -40 °C to +105 °C, (+145 °C, 500 h)
Specifications
EAN / GTIN 4031026228266
Packaging 1 - Height (m) 0.3m
Packaging 1 - Length (m) 0.625m
Packaging 1 - Qty 500
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.0825
Packaging 1 - Weight (kg) 0.7415kg
Packaging 1 - Width (m) 0.44m
Packaging 3 - Height (m) 0.368m
Packaging 3 - Length (m) 0.584m
Packaging 3 - Qty 3000
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.083
Packaging 3 - Weight (kg) 5.269kg
Packaging 3 - Width (m) 0.386m
Packaging 4 - Height (m) 1.249m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 36000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.199
Packaging 4 - Weight (kg) 84.228kg
Packaging 4 - Width (m) 0.8m
Packaging Content SKU Unit pieces
Weight 2kg
ETIM 5.0 EC000046
ETIM 6.0 EC000046
UNSPSC Key 39121703
