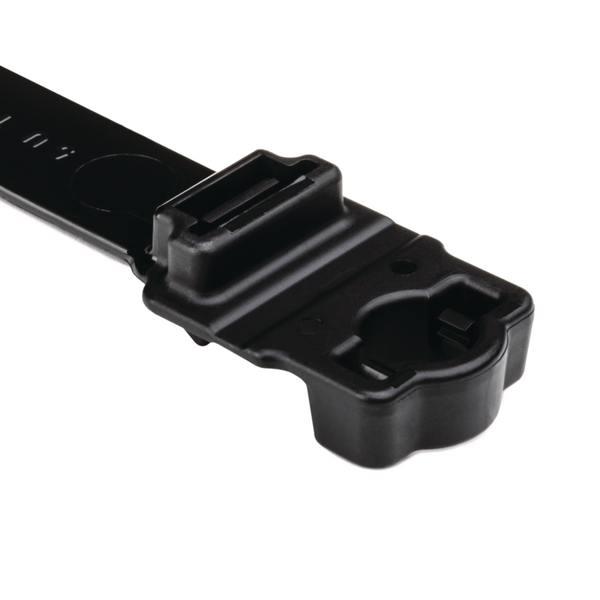

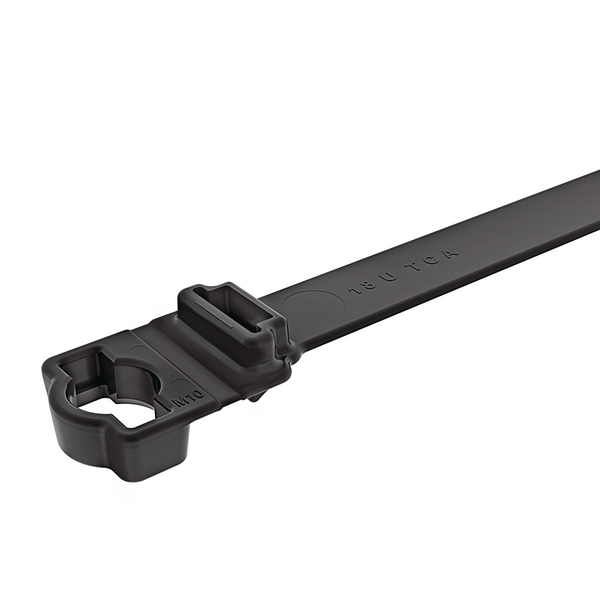

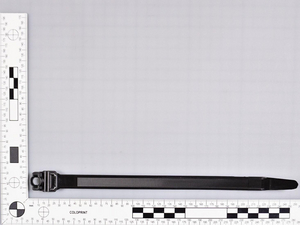

Fixing tie for stud, inside serrated, Ø9.5-57.1mm, black, 300pcs.
Art.-No. 157-00034 | WSS8MM-PA66HIRHSW-BK |  Details

Tie utilizes a strong hinge between the stud mount and strap head to provide superior holding ability.

    • One-piece fixing ties
    • High specification materials
    • Superior design
    • Suitable for complex applications
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Primarily designed for use in the automotive industry, these parts can be used in a wide variety of applications where weld studs or ISO bolts are used and cables need to be bundled and secured.
    Application Tool ProCut 9 no battery, MK9P, MK9P w/ Upper air, EVO9SP, EVO9HT, EVO9i, EVO9iSP, EVO9iHT
    Colour Black (BK)
    Fixation Method Stud Mount
    Identification Plate Position none
    Local order number WSS8MM
    Material Polyamide 6.6, high impact modified, heat and UV-resistant (PA66HIRHSW)
    Pack Cont. 300pcs.

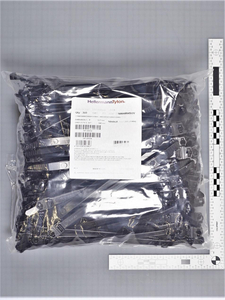

    Package Content packed in Bag
    PART DESCRIPTION WSS8MM-PA66HIRHSW-BK
    Product Group 1-piece fixing ties for weld studs
    Releasable Closure (Yes/No) No
    Short Description 1-Piece fixing tie 246.4x12.7 mm, for weld studs, PA66HIRHSUV, black
    Tie Closure plastic pawl
    Variant Inside Serrated
    Bundle Diameter max (metric) 57.1mm
    Bundle ∅ 9.5-57.1mm
    Bundle ∅ min. 9.5mm
    Length (L) 246.4mm
    Min.Tensile Strength 535N
    Stud ∅ M8
    Stud ∅ (imperial) 5/16"
    Weight/Unit 0.00492kg
    Width (W) 12.7mm
    CE Certification No
    CSA Certified No
    ELV compliant Dir. Art. 4 (2) YES
    Flammability UL 94 HB
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C, (+105 °C for 500 h)
    Specifications
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    Country of Origin US
    Customs Number 39269097
    GTIN-13 / EAN 4031026423807
    Packaging 1 - Height (m) 0.06m
    Packaging 1 - Length (m) 0.51m
    Packaging 1 - Qty 300
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.01071m³
    Packaging 1 - Weight (kg) 1.501kg
    Packaging 1 - Width (m) 0.35m
    Packaging 3 - Height (m) 0.212725m
    Packaging 3 - Length (m) 0.51435m
    Packaging 3 - Qty 1200
    Packaging 3 - Type Box
    Packaging 3 - Volume (m³) 0.0347m³
    Packaging 3 - Weight (kg) 6.624kg
    Packaging 3 - Width (m) 0.3175m
    Packaging 4 - Height (m) 1.209m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 24000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.161m³
    Packaging 4 - Weight (kg) 153.48kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121717
