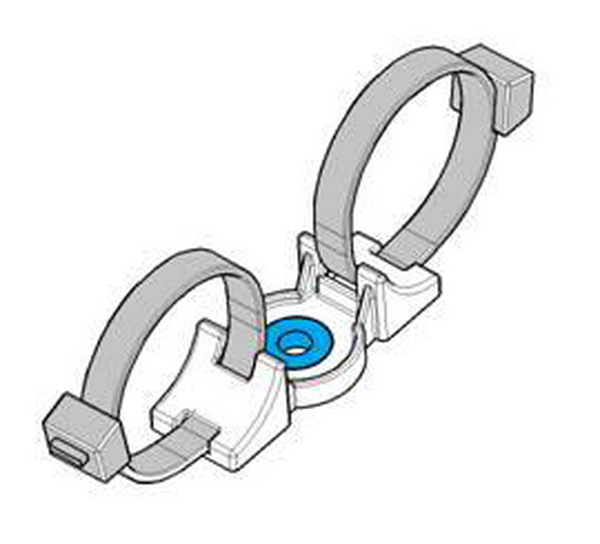

Fixing tie for hole (round), inside serrated, Ø10.0-100.0mm, black, 200pcs.
Art.-No. 156-01097 | X120RDHDM8-PA66HIRHS-BK Details

  • Pre-assembled 2-piece fixing tie
  • Cable tie head can be moved after bundling
  • Secure alignment to the bundle due to H-design
  • A suitable alternative for metal clamps
  • Withstands vibrations and displacement forces
  • High tightening torque through metal bushing
Show more

Request your individual offer now

Application Used in the automotive and truck industry for harness fixing in the engine body, these parts offer solutions in many other industrial applications within difficult environments.
Application Tool MK9P, MK9P w/ Upper air, MK21, EVO7SP, EVO7i, EVO9, EVO9HT
Colour Black (BK)
Description 2-Piece Fixing Tie 369x7.7 mm, pre-assembled, high impact modified, heat stabilised, black. Suitable for parallel routing of cables.
Fixation Method Fixing hole
Identification Plate Position none
Local order number 156-01097
Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Mounting Screw Type M8 Screw
Pack Cont. 200pcs.
Package Content packed in Carton
PART DESCRIPTION X120RDHDM8-PA66HIRHS-BK
Product Family DHDM-Series for parallel routing
Product Group 2-piece fixing ties for heavy duty applications, for screws
Short Description 2-Piece Fixing Tie 369x7.7 mm, pre-assembled, high impact modified, heat stabilised, black
Tie Closure plastic pawl
Bundle Diameter max (Metric) 100.0mm
Bundle ∅ 10.0-100.0mm
Bundle ∅ min. 10.0mm
for Hole ∅ (FH) 8.4 mm
Height (H) 15.5mm
Length (L) 369.0mm
Length (L2) 59.4mm
Min.Tensile Strength 535N
Thickness (T) 1.6mm
Weight/Unit 0.015178kg
Width (W) 7.7mm
Width (W2) 25.4mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Hazardous Goods No
Operating Temperature -40 °C to +105 °C, (+105 °C for 500 h)
Specifications
UV-Stabilised (Yes/No) No
Country of Origin FR
Customs Number 39269097
GTIN-13 / EAN 4031026463421
Packaging 1 - Height (m) 0.14m
Packaging 1 - Length (m) 0.27m
Packaging 1 - Qty 50
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.01512
Packaging 1 - Weight (kg) 0.7889kg
Packaging 1 - Width (m) 0.4m
Packaging 3 - Height (m) 0.25m
Packaging 3 - Length (m) 0.6m
Packaging 3 - Qty 200
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.06
Packaging 3 - Weight (kg) 3.9056kg
Packaging 3 - Width (m) 0.4m
Packaging 4 - Height (m) 1.144m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 3200
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.098
Packaging 4 - Weight (kg) 83.49kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121717
