Fixing tie for hole (round), inside serrated, Ø1.5-34.0mm, black, 100pcs.
Art.-No. 126-03001 | YQR10016-PA66-BK |  Details

A wide range of arrowhead fixing ties which are suitable for different panel thicknesses and hole diameters.

    • Easy to assemble without the need for a tool
    • Cable tie head always situated in defined position
    • Arrowhead simply locks into place
    • Supporting legs provide a secure and firm fixing in areas where space is limited
    • Releasable and therefor reusable
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application With a diverse range of fixing possibilities are ideal for use in many different industries, including automotive, aerospace and panel building.
    Application Tool MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7SP, EVO7i, EVO7iSP
    Colour Black (BK)
    Fixation Method arrowhead
    Identification Plate Position none
    Key product features releasable
    Local order number YQR10016.NB3P
    Material Polyamide 6.6 (PA66)
    Pack Cont. 100pcs.
    Package Content packed in Bag
    PART DESCRIPTION YQR10016-PA66-BK
    Product Family 1-Piece Fixing Ties with Arrowhead, with wings, releasable, for round holes
    Product Group 1-Piece Fixing Ties with Arrowhead, with Wings, releasable
    Releasable Closure (Yes/No) Yes
    Tie Closure plastic pawl
    Variant Inside Serrated
    Bundle Diameter max (metric) 34.0mm
    Bundle ∅ 1.5-34.0mm
    Bundle ∅ min. 1.5mm

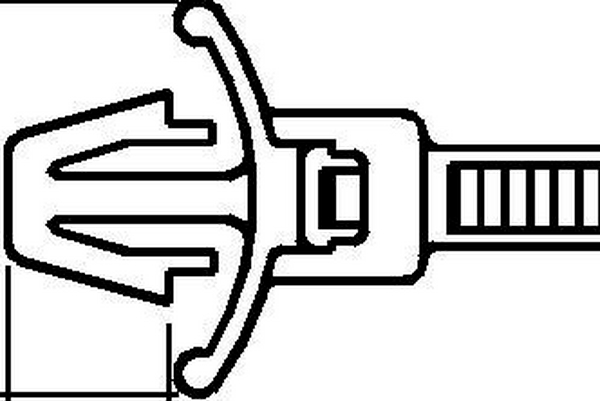

    for Hole ∅ (FH) 6.9 - 7.1 mm
    for Panel Thickness min - max 1.6 - 4 mm
    Height (H) 9.5mm
    Length (L) 165mm
    Min.Tensile Strength 225N
    Width (W) 4.6mm
    Width (W2) 18.5mm
    Flammability UL 94 V2
    Operating Temperature -40 °C to +85 °C
    Specifications
    Country of Origin GB
    GTIN-13 / EAN 4031026267104
    Packaging 1 - Weight (kg) 1.5kg
    Packaging 3 - Height (m) 0.364m
    Packaging 3 - Length (m) 0.563m
    Packaging 3 - Type Box
    Packaging 3 - Volume (m³) 0.0777m³
    Packaging 3 - Width (m) 0.379m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
