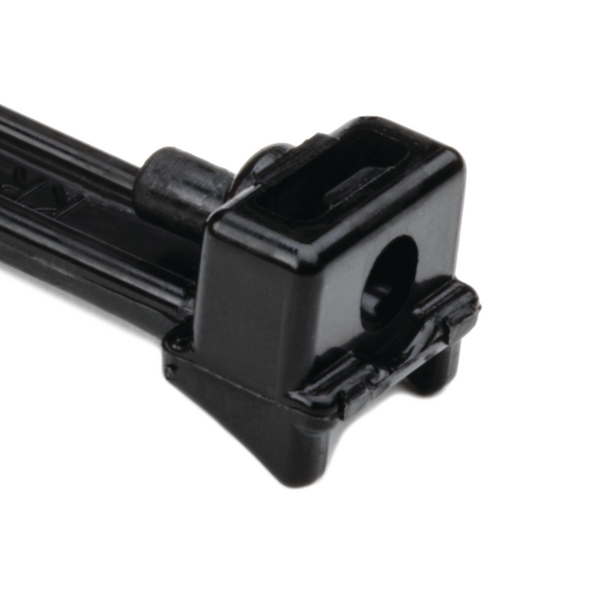

Cable Tie locked by glass fibre pin KR6/35

KR-Series, 1-Piece , Article number: 121-63560

Features

  • Patented cable tie system
  • Smooth strap which is locked into place with a glass-fibre reinforced pin
  • For assembly a special KR-tool is needed
  • Very secure and vibration resistant fixing
  • KR-ties up to 426 mm are made as one piece fastening
  • Available in various materials, including PA12 which is less hygroscopic

Certifications & Approvals

Application

In addition to offering a secure method of bundling cables, the design of the KR-ties makes them ideal for use as a method of securing bellows on steering racks, water hoses and vacuum lines.

KR-Series, 1-Piece is suitable for following markets and industries

Application Tool KR6/8
Colour Black (BK)
Description Short (BMEcat) (max. 150 characters) Cable Tie locked by glass fibre pin 360x6.0 PA66W black
Fixation Method Cable Tie
GLOBAL PART NAME KR6/35-PA66W-BK
Identification Plate Position none
Pack Cont. 50pcs.
Package Quantity per Bag
Product Family KR-Series, 1-Piece
Product Group Cable Tie locked by glass fibre pin
Releasable Closure (Yes/No) No
Tie Closure fibreglass pin
Variant No Serration
Bundle ∅ max. 93.0mm
Bundle ∅ min. 4.7mm
Cable Tie Head Height (Metric) 8.9mm
Cable Tie Head Width (metric) 9.5mm
Length (L) 360mm
Min.Tensile Strength 490.0N
Strap Width max. (G) 6.4mm
Strap Width max. (G) (imperial) 0.25"
Strap Width max. (G) (imperial) 0.37"
Thickness (T) 1.6mm
Width (W) 6.1mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Hazardous goods No
Material Polyamide 6.6, UV-resistant (PA66W)
Operating Temperature - °C -40 °C to +85 °C
Operating Temperature Head (Metric) -40 °C to +85 °C, (+105 °C, 500 h)
Specifications
Specifications IEC 62275:2006
EAN / GTIN 4031026114125
Packaging 1 - Height (m) 0.13m
Packaging 1 - Length (m) 0.4m
Packaging 1 - Qty 50
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.01664
Packaging 1 - Weight (kg) 0.201kg
Packaging 1 - Width (m) 0.32m
Packaging 3 - Height (m) 0.184m
Packaging 3 - Length (m) 0.58m
Packaging 3 - Qty 2500
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0406
Packaging 3 - Weight (kg) 10.7kg
Packaging 3 - Width (m) 0.38m
Packaging 4 - Height (m) 1.249m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 60000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.199
Packaging 4 - Weight (kg) 277.8kg
Packaging 4 - Width (m) 0.8m
Packaging Content SKU Unit pieces
Weight 3.17kg
ETIM 5.0 EC000046
ETIM 6.0 EC000046
UNSPSC Key 39121703
