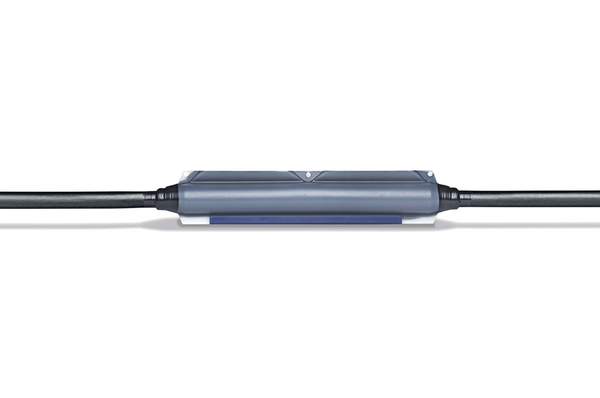

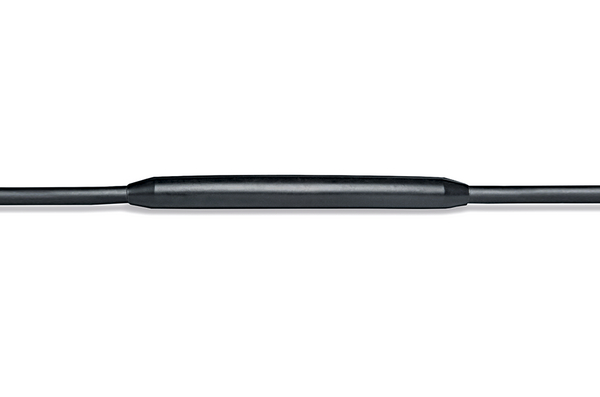

Cast resin joint, 4 x 16mm² to 5 x 25mm², L=450mm, 600 ml/720 g, Polyurethane resin (PUR) black
Art.-No. 435-00203 | F-14/SF-PUR-BK Details

This product is not available anymore.
  • Reelable and permanently flexible including at sub-zero temperatures
  • Very good adhesion even with permanent bending stress
  • Quick and easy installation
  • Immediately ready for use
  • Longitudinally and transversely watertight
  • Highly abrasion resistant
  • Resistant to alkaline earths, chemical influences and UV-radiation
Show more

Request your individual offer now

Application The flexible RELICON F-Line straight-through joint for low voltage applications can be used to repair and connect flexible cables made of PVC, PUR, EPR like H05RR-F, H07RN-F, etc. Application: Cable drum, underground, submerged, outdoor, indoor and wiring ducts.
Application Tool PTS4, ASS103, RCS0425
Colour Black (BK)
Content PUR 44 Flex cast resin
Two- chamber pouch, transparent
Moulding shells with accessories
SF- nozzle
Protective gloves, emery cloth, installation instructions
HelaTape self-amalgamating tape
HelaTape vinyl electrical tape
Cleaning cloth, plastic fabric strips
Material Polyurethane resin (PUR)
No. of Wires 5
Pack Cont. 1Set
Package Content packed in Box
PART DESCRIPTION F-14/SF-PUR-BK
Product Family RELICON F-Line SF
Product Group Flexible straight-through joint
Short Description Flexible straight-through joint 4 x 16 to 5 x 25
Variant Cast resin
Cable Diameter Main Cable 25-32mm
Connector none
Diameter (D) 42mm
Length (L) 450mm
Main Cabel max 5 x 25mm²
Main Cable min 4 x 16mm²
Resin Quantity 600 ml/720 g
Weight/Unit 1.338kg
ELV compliant Dir. Art. 4 (2) YES
Hazardous Goods No
Shelf Life 24 months
Specifications
Country of Origin DE
Customs Number 39095090
GTIN-13 / EAN 4250596418376
Packaging Bag
Packaging 1 - Height (m) 0.09m
Packaging 1 - Length (m) 0.42m
Packaging 1 - Qty 1
Packaging 1 - Type Pack
Packaging 1 - Volume (m³) 0.00869
Packaging 1 - Weight (kg) 1.338kg
Packaging 1 - Width (m) 0.23m
Packaging 3 - Height (m) 0.09m
Packaging 3 - Length (m) 0.42m
Packaging 3 - Qty 1
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0087
Packaging 3 - Weight (kg) 1.838kg
Packaging 3 - Width (m) 0.23m
Packaging 4 - Height (m) 0.954m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 84
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 0.916
Packaging 4 - Weight (kg) 175.392kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC001170
ETIM 8.0 Key EC001170
ETIM 9.0 Key EC001170
