19/04/2024

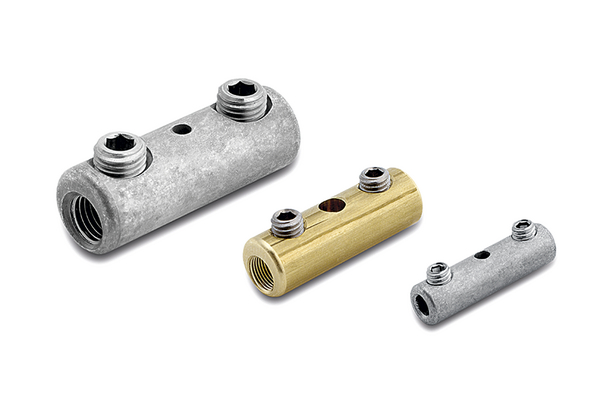

Mechanical connector, 1.5 - 16mm², Ø10mm, L=30mm, silver
Art.-No. 435-01501 | Mechanical connector 1516-ST-SR |  Details

Mechanical connectors without barrier.

    This product is not available anymore.
    • For connecting different conductor cross-sections
    • Suitable for aluminium and copper conductors
    • With blind hole for precise conductor insertion
    • Tin-plated connector body and hexagon socket screws
    Add to watchlist

    Request your individual offer now

     Request quote
    Application Galvanised mechanical connector provided with a blind hole and suitable for stranded and solid aluminium and copper conductors in all kind of cable accessories. They also comply with DIN 4740 requirements for shrinking technology.
    Colour Zinc Plated Metal (BV)
    Material Steel (ST)
    Pack Cont. 1pc.
    Package Content packed in pcs.
    PART DESCRIPTION Mechanical connector 1516-ST-SR
    Product Family Mechanical connector, tin-plated, with blind hole for AI and CU conductors
    Product Group Connectors
    Short Description Mechanical connector 1516 ST ML
    Conductor Size Range mm² 1.5 - 16mm²
    Diameter (D) 10mm
    Length (L) 30mm
    Nut Size (NS) 2.5mm
    Weight/Unit 0.131kg
    ELV compliant Dir. Art. 4 (2) YES
    Hazardous Goods No
    Specifications
    Voltage Range up to 15kV
    Country of Origin DE
    Customs Number 85369010
    GTIN-13 / EAN 4250596412718
    Packaging 1 - Height (m) 0.01m
    Packaging 1 - Length (m) 0.03m
    Packaging 1 - Qty 1
    Packaging 1 - Type pcs.
    Packaging 1 - Volume (m³) 0m³
    Packaging 1 - Weight (kg) 0.131kg
    Packaging 1 - Width (m) 0.01m
    ETIM 7.0 Key EC001063
    ETIM 8.0 Key EC001063
    ETIM 9.0 Key EC001063
