Downlight cover, H=82mm, Ø62 - 90 mm, black, 10pcs.
Art.-No. 148-00076 | SpotClip-I-PA66GF15-BK Details

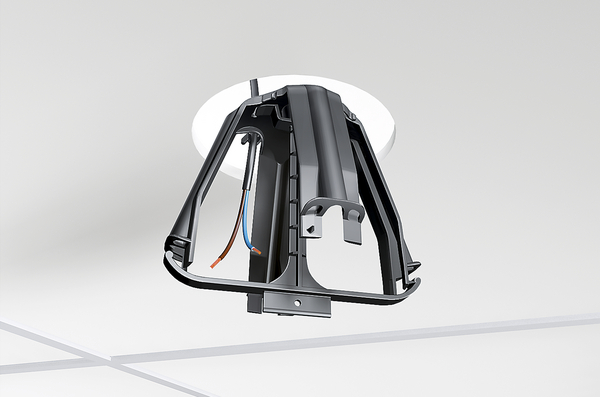

  • Mount down lights in dry, mortarless construction and acoustic construction

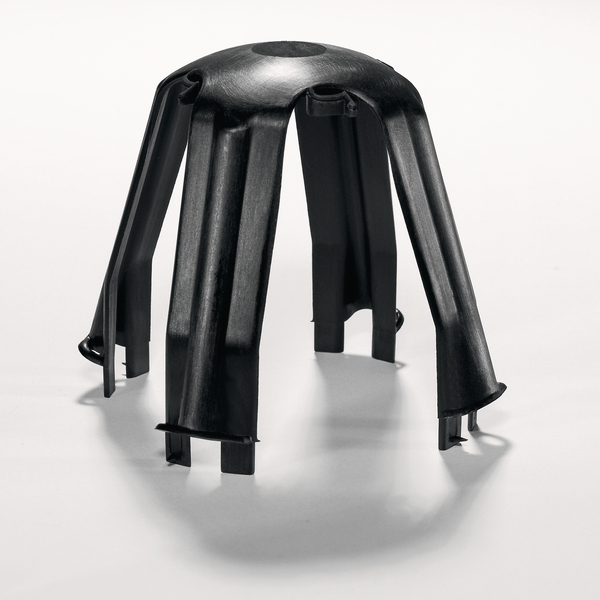

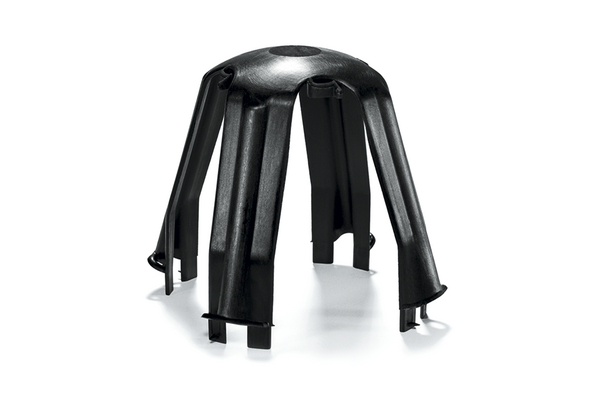

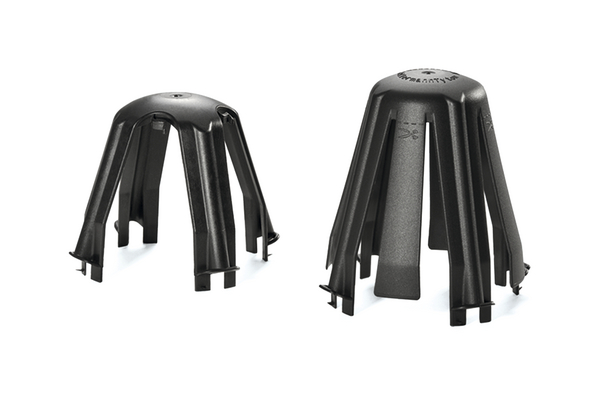

  • Innovative, 4-leg ceiling spacer

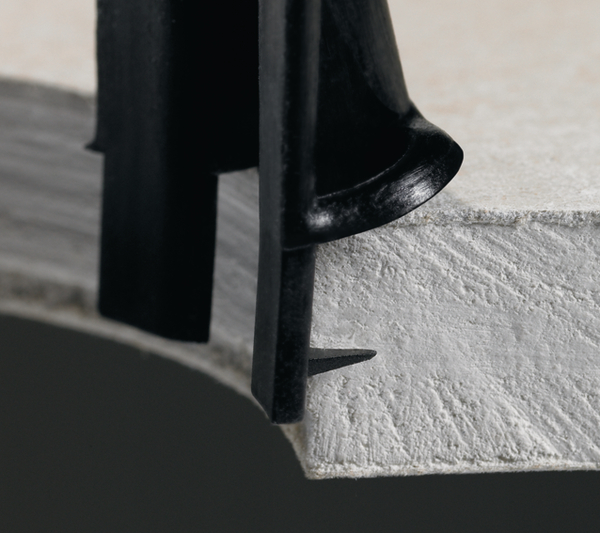

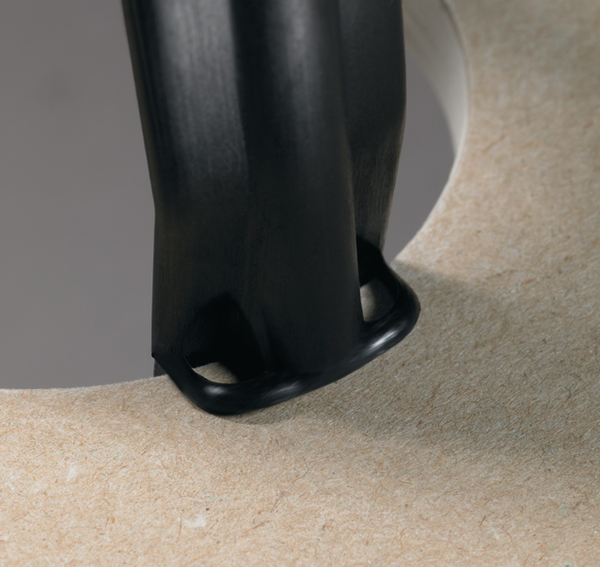

  • Suitable for both panelling and plasterboard
  • Non-flammable, fibreglass reinforced polyamide
  • Thermal and mechanical benefits

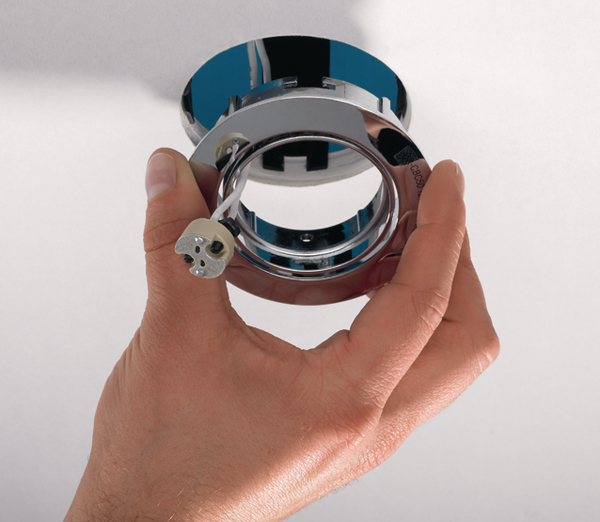

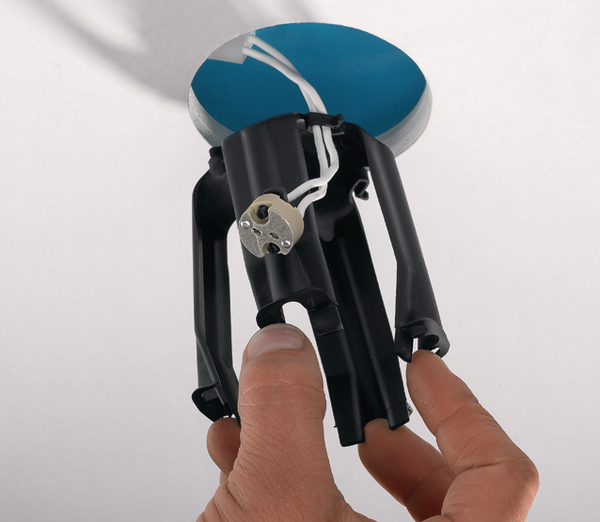

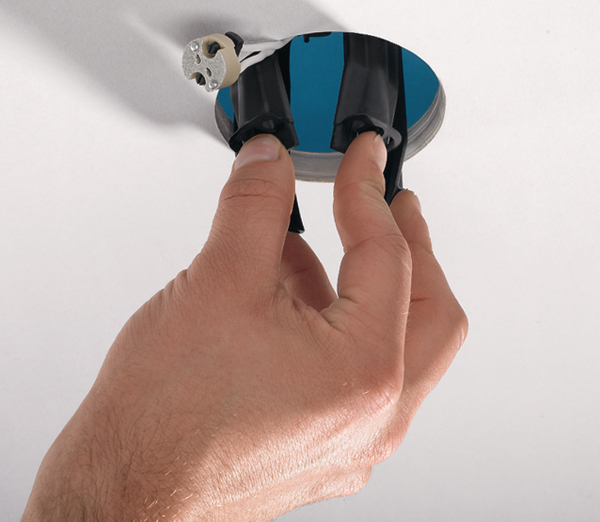

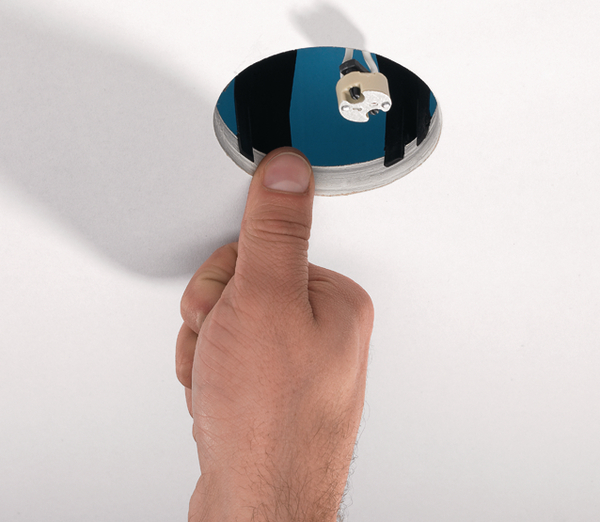

  • Can be installed after construction, useful for both old and new buildings
  • Use in ceiling cavities 62-90 mm in diameter

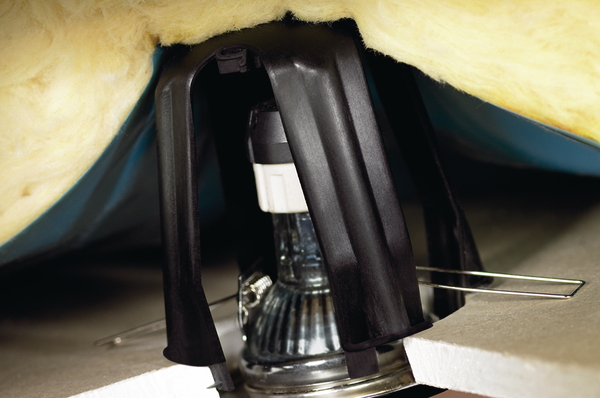

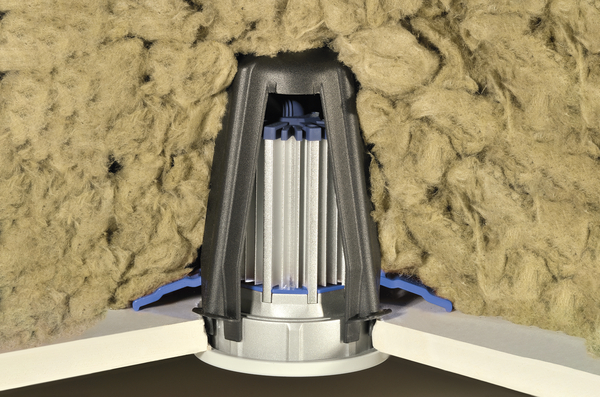

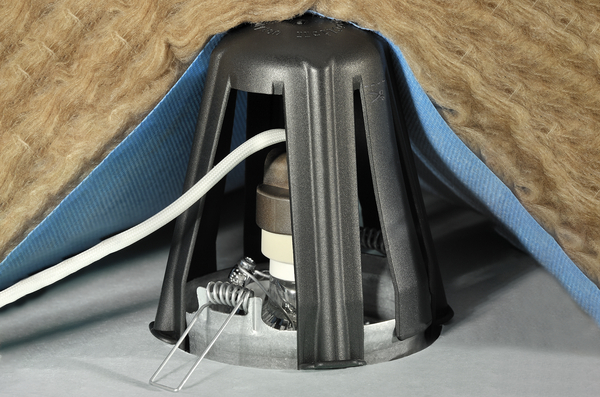

  • Keeps safe distance between down light, insulation foil and roof insulation
  • Reduces risk of damage to insulation from overheating, heat accumulation
  • Improves life span and reliability of lamps
  • Tested according to EN 60598-1, EN 60598-2-2, and NF C 15100
Show more

Request your individual offer now

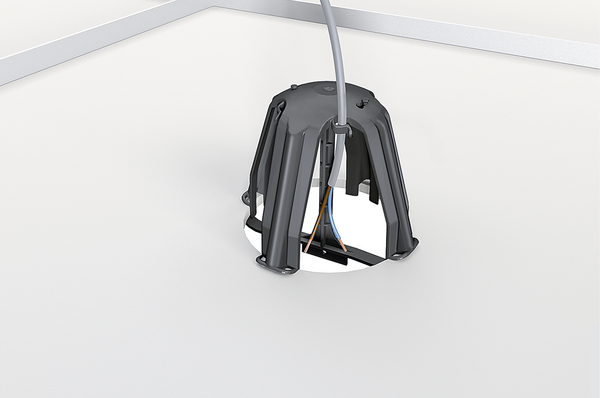

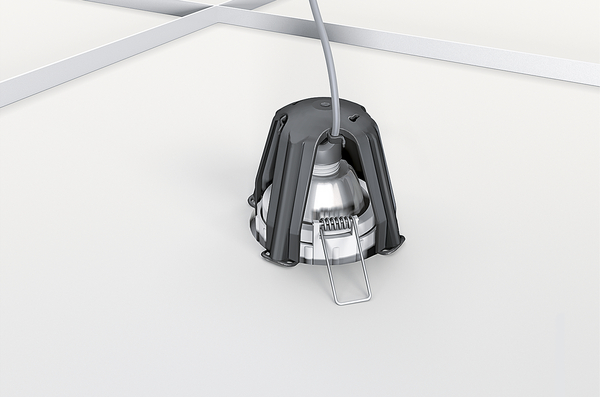

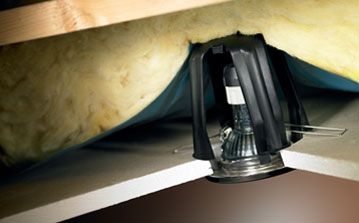

Application SpotClip-I is a unique product that has been developed for mounting down lights in dry mortarless construction and acoustic construction applications. The innovative, 4-leg ceiling brace has a number of outstanding features and is suitable for use in both panelling and plasterboard. SpotClip-I consists of non-flammable, fibreglass reinforced polyamide and offers a number of thermal and mechanical benefits and can even be installed retrospectively. As a result, it opens up a variety of possibilities for applications in both old and new buildings. SpotClip-I can be used in ceiling cavities with diameters of 62 to 90 mm. SpotClip-I ensures that a safe distance is kept between the down light, insulation foil and roof insulation. It reduces the risk of damage being caused to any insulation material as a result of overheating and heat accumulation and may also have a positive effect on the life time of the lamp.
Colour Black (BK)
Local order number SpotClip-I
Material Polyamide 6.6, glass-fibre reinforced (PA66GF15)
Pack Cont. 10pcs.
Package Content packed in pcs.
PART DESCRIPTION SpotClip-I-PA66GF15-BK
Product Family SpotClip-I
Product Group Downlight Covers - For Residential Buildings
Short Description Downlight Cover for recessed spotlights with Ø 62-90mm black

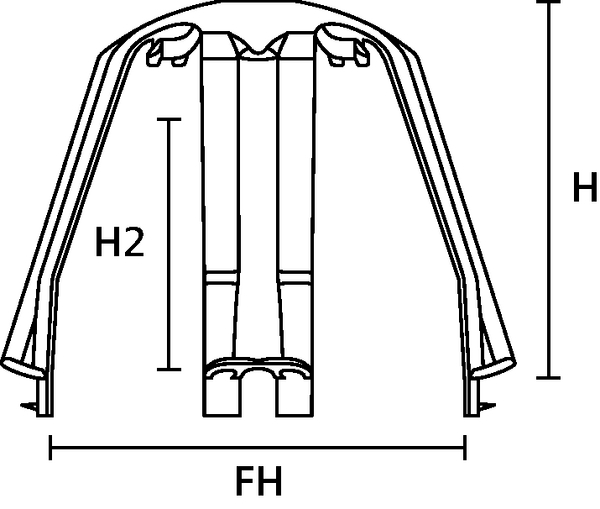

for Hole ∅ (FH) 62 - 90 mm
Height (H) 82mm
Height (H2) 70mm
Max. diameter luminaire 90mm
Min. ceiling thickness 8mm
Weight/Unit 0.026kg
ELV compliant Dir. Art. 4 (2) YES
Flammability Glow Wire Test (960 °C), UL 94 V0
Halogen-free Yes
Hazardous Goods No
Operating Temperature -20 °C to +120 °C
Specifications
Suitable for high voltage luminaires Yes
Suitable for low voltage luminaires (Yes/No) Yes
Country of Origin FR
Customs Number 39269097
GTIN-13 / EAN 4031026299525
Minimum Order Quantity 50
Packaging 1 - Height (m) 0.115m
Packaging 1 - Length (m) 0.24m
Packaging 1 - Qty 10
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.01049
Packaging 1 - Weight (kg) 0.260001kg
Packaging 1 - Width (m) 0.38m
Packaging 3 - Height (m) 0.171m
Packaging 3 - Length (m) 0.56m
Packaging 3 - Qty 50
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0172
Packaging 3 - Weight (kg) 1.520005kg
Packaging 3 - Width (m) 0.18m
Packaging 4 - Height (m) 1.17m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 2400
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.123
Packaging 4 - Weight (kg) 93.96kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000414
ETIM 8.0 Key EC000414
ETIM 9.0 Key EC000414
