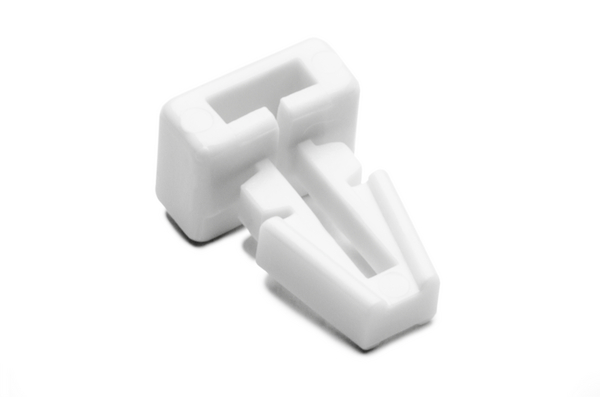

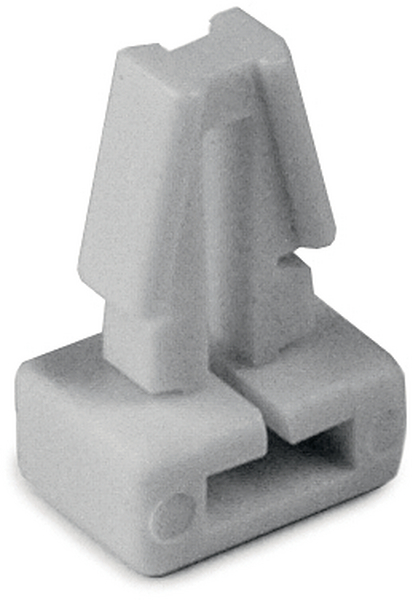

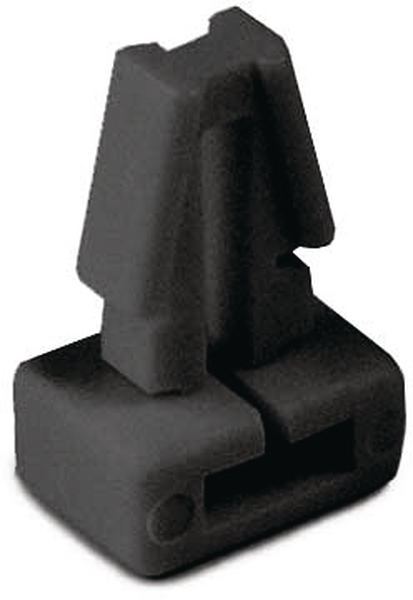

Cable Fixing Cradle TM1SF

TM1SF for cable ties width up to 5.0 mm, Article number: 151-40119

Features

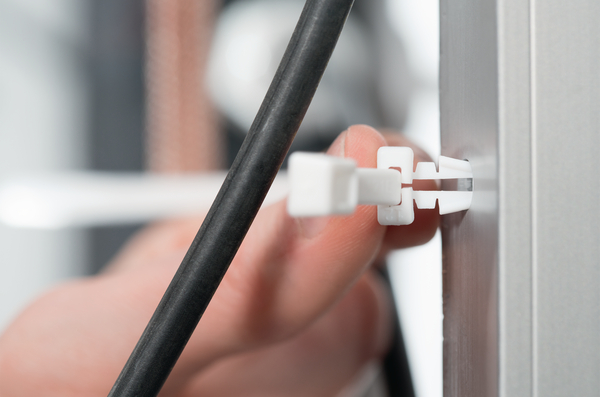

  • Ideal mount for space-saving applications with restricted access
  • Arrowhead for very secure fixing

Certifications & Approvals

Application

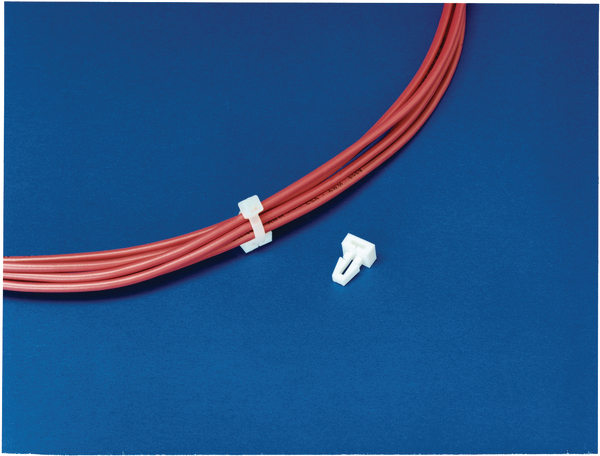

Offering simple and easy methods of securing cables or pipes, these fixing accessories have many applications within a wide range of industries.

TM1SF for cable ties width up to 5.0 mm is suitable for following markets and industries

Colour White (WH)
Description Short (BMEcat) (max. 150 characters) Fixing Element with Cable Fixing Cradle PA66 15.8x10.2 natural

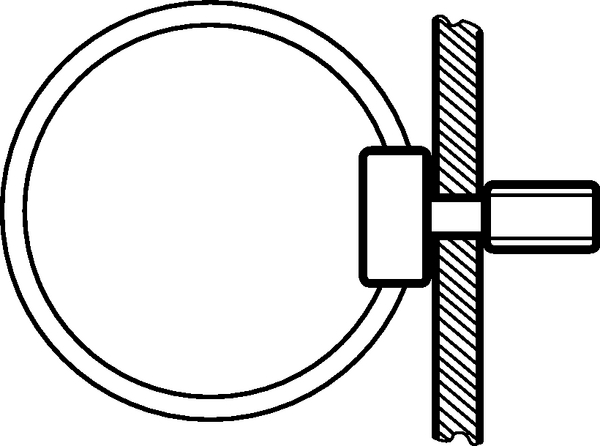

Fixation Method with Arrowhead / Push Mount (Mounts)
For Ties T18 to T50
GLOBAL PART NAME TM1SF-PA66-WH
Pack Cont. 100pcs.
Package Quantity per pcs.
Product Family TM1SF for cable ties width up to 5.0 mm
Product Group Cable Fixing Cradle
Type TM1SF.NN3P
for Hole ∅ (FH) 6.35 mm
for Panel Thickness min - max 3.3 - 3.4 mm

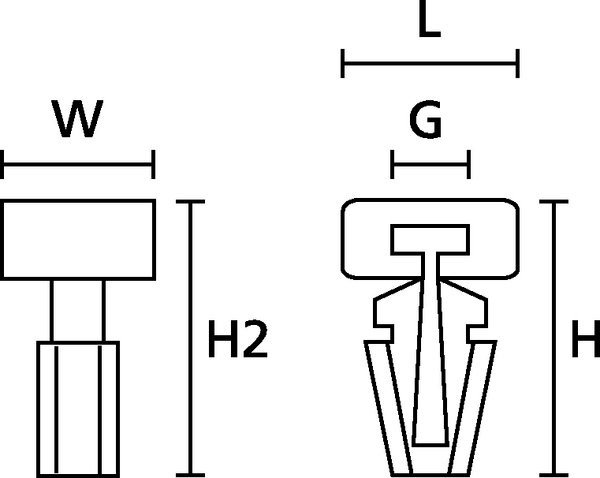

Height (H) 4.60mm
Height (H2) 4.60mm
Length (L) 15.75mm
Strap Width max. (G) 5.0mm
Strap Width max. (G) (imperial) 0.2"
Width (W) 10.2mm
CSA Certified No
ELV compliant Dir. Art. 4 (2) YES
EN 45545-2 Results R22 HL2, R23 HL2
Flammability UL 94 V2
Hazardous good No
Material Polyamide 6.6 (PA66)
Operating Temperature - °C -40 °C to +85 °C
Specifications
Specifications DIN EN 45545-2 (08/2013)
UL Listed (US and Canada) No
UL OCD link ZODZ.E64139
ZODZ2.E64139
ZODZ7.E64139
ZODZ8.E64139
UL Recognized (US and Canada) Yes
UL-File Number E64139
EAN / GTIN 4031026122847
Packaging 1 - Height (m) 0.02m
Packaging 1 - Length (m) 0.19m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00061
Packaging 1 - Weight (kg) 0.05kg
Packaging 1 - Width (m) 0.16m
Packaging 3 - Height (m) 0.215m
Packaging 3 - Length (m) 0.512m
Packaging 3 - Qty 15000
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0347
Packaging 3 - Weight (kg) 8.11kg
Packaging 3 - Width (m) 0.315m
Packaging 4 - Height (m) 1.22m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 300000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.171
Packaging 4 - Weight (kg) 183.2kg
Packaging 4 - Width (m) 0.8m
Weight 0.05kg
ETIM 5.0 EC000449
ETIM 6.0 EC000449
UNSPSC Key 39121717
