Strain Protection Grommets  H321

H321, Article number: 634-03210

Features

  • Provides excellent strain relieve
  • Flexible and easy to apply
  • High resistance to chemicals and environmental influences

Certifications & Approvals

Application

Straining protection grommets are used as protection for cables and wires from pulling. They are also used for bend protection in casing apertures. They are especially useful in electrical equipment, for instance in electrical drills.

The use of Hellerine is recommended when working with grommets.

H321 is suitable for following markets and industries

Cable ∅ max 6.0mm
Cable ∅ min 5.5mm
Colour Black (BK)
Description Short (BMEcat) (max. 150 characters) Strain protection grommets black
GLOBAL PART NAME (auto set) H321-PVC-FR-BK
Pack Cont. 200pcs.
Package Quantity per pieces
Product Family H321
Product Group Strain Protection Grommets
Type 634-03210

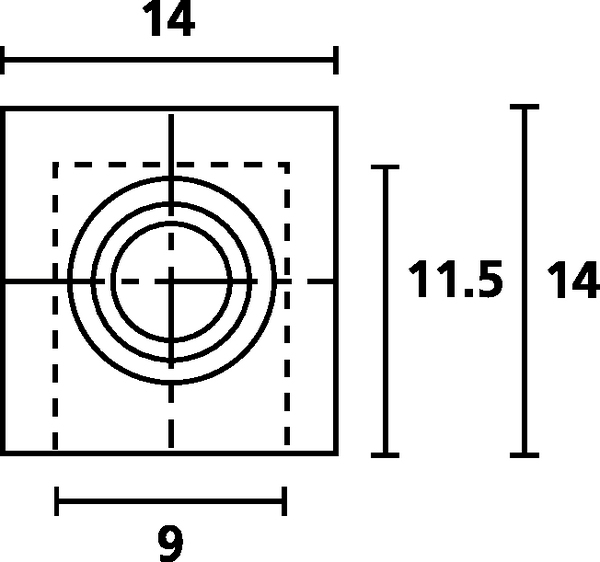

Outside Ø (OD) 8.5mm
Outside ∅ (OD2) 7.0
Outside ∅ (OD3) 8.5
Shore Hardness A 55±5
∅ (D) 6.0mm
∅ (D2) 5.5mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V0
Hazardous goods No
Material Polyvinylchloride, flame retardant (PVC-FR)
Operating Temperature - °C -30 °C to +60 °C
Specifications
EAN / GTIN 4031026186740
Packaging 1 - Height (m) 0.03m
Packaging 1 - Length (m) 0.35m
Packaging 1 - Qty 200
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.0042
Packaging 1 - Weight (kg) 0.66kg
Packaging 1 - Width (m) 0.4m
Packaging 3 - Height (m) 0.27m
Packaging 3 - Length (m) 0.6m
Packaging 3 - Qty 3600
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0648
Packaging 3 - Weight (kg) 15.18kg
Packaging 3 - Width (m) 0.4m
Weight 0.66kg
ETIM 5.0 EC001679
ETIM 6.0 EC001679
