Strain Protection Grommets H3A
H3A, Article number: 634-00310
Features
- Provides excellent strain relieve
- Flexible and easy to apply
- High resistance to chemicals and environmental influences
Certifications & Approvals
Application
Straining protection grommets are used as protection for cables and wires from pulling. They are also used for bend protection in casing apertures. They are especially useful in electrical equipment, for instance in electrical drills.
H3A is suitable for following markets and industries
More products in this product group
Strain Protection Grommets >| Cable ∅ max | 4.5mm |
| Cable ∅ min | 3.0mm |
| Colour | Black (BK) |
| Description Short (BMEcat) (max. 150 characters) | Strain protection grommets black |
| GLOBAL PART NAME | H3A-PVC-FR-BK |
| Pack Cont. | 2000pcs. |
| Package Quantity per | pcs. |
| Product Family | H3A |
| Product Group | Strain Protection Grommets |

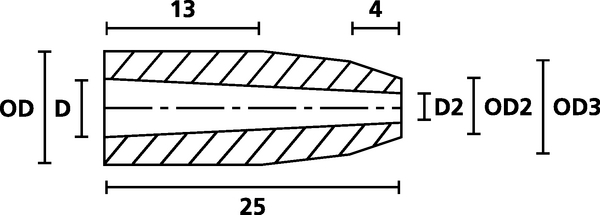

| Diameter (D) | 4.5mm |
| Outside Ø (OD) | 9.0mm |
| Outside ∅ (OD2) | 5.0mm |
| Outside ∅ (OD3) | 8.0mm |
| Shore Hardness A | 55±5 |
| ∅ (D2) | 3.0mm |
| ELV compliant Dir. Art. 4 (2) | YES |
| Flammability | UL 94 V0 |
| Hazardous good | No |
| Material | Polyvinylchloride, flame retardant (PVC-FR) |
| Operating Temperature - °C | -30 °C to +60 °C |
| Specifications |
|
|
|
|
| EAN / GTIN | 4031026186641 |
| Packaging 1 - Height (m) | 0.035m |
| Packaging 1 - Length (m) | 0.35m |
| Packaging 1 - Qty | 2000 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.0049m³ |
| Packaging 1 - Weight (kg) | 3.4kg |
| Packaging 1 - Width (m) | 0.4m |
| Packaging 3 - Height (m) | 0.27m |
| Packaging 3 - Length (m) | 0.6m |
| Packaging 3 - Qty | 60000 |
| Packaging 3 - Type | Box |
| Packaging 3 - Volume (m³) | 0.0648m³ |
| Packaging 3 - Weight (kg) | 105.3kg |
| Packaging 3 - Width (m) | 0.4m |
| Weight | 3.4kg |
| ETIM 5.0 | EC001679 |
| ETIM 6.0 | EC001679 |
