Strain Protection Grommets  H4202

H4202, Article number: 634-04200

Features

  • Provides excellent strain relieve
  • Flexible and easy to apply
  • High resistance to chemicals and environmental influences

Certifications & Approvals

Application

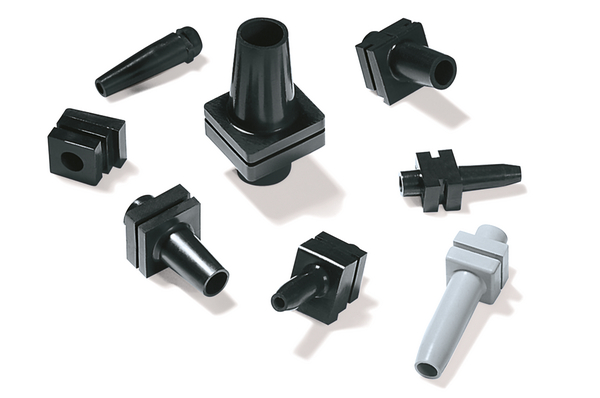

Straining protection grommets are used as protection for cables and wires from pulling. They are also used for bend protection in casing apertures. They are especially useful in electrical equipment, for instance in electrical drills.

The use of Hellerine is recommended when working with grommets.

H4202 is suitable for following markets and industries

Cable ∅ max 9.0mm
Cable ∅ min 7.0mm
Colour Black (BK)
Description Short (BMEcat) (max. 150 characters) Strain protection grommets black
GLOBAL PART NAME (auto set) H4202-PVC-FR-BK
Pack Cont. 1000pcs.
Package Quantity per pieces
Product Family H4202
Product Group Strain Protection Grommets
Shore Hardness A 55±5
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V0
Hazardous goods No
Material Polyvinylchloride, flame retardant (PVC-FR)
Operating Temperature - °C -30 °C to +60 °C
Specifications
EAN / GTIN 4031026186764
Packaging 1 - Height (m) 0.035m
Packaging 1 - Length (m) 0.35m
Packaging 1 - Qty 1000
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.0049
Packaging 1 - Weight (kg) 4.25kg
Packaging 1 - Width (m) 0.4m
Packaging 3 - Height (m) 0.27m
Packaging 3 - Length (m) 0.6m
Packaging 3 - Qty 8000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0648
Packaging 3 - Weight (kg) 37.3kg
Packaging 3 - Width (m) 0.4m
Weight 4.25kg
ETIM 5.0 EC001679
ETIM 6.0 EC001679
