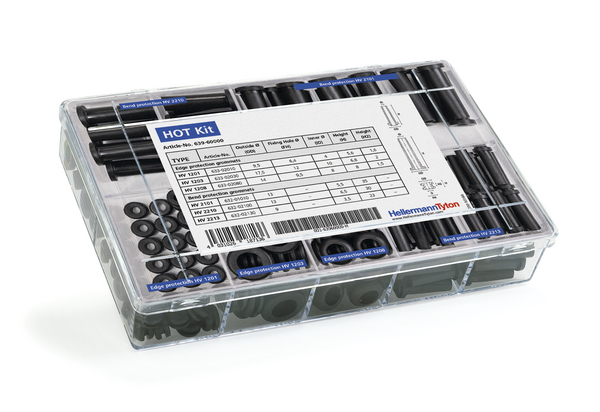

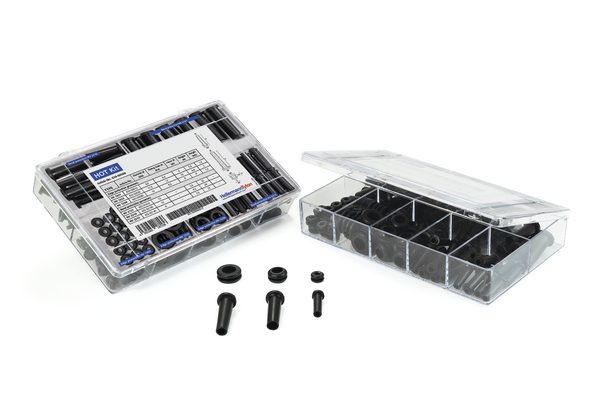

Set for Bend and Edge Protection  HOT Kit

HOT Kit, Article number: 639-60000

Features

  • Flexible and easy to apply
  • High resistance to chemicals and environmental influences

Certifications & Approvals

Application

The practical mix of grommets for construction, repairs and home improvement.

HOT Kit is suitable for following markets and industries

Cable ∅ max 12.0mm
Cable ∅ min 3.5mm
Colour Black (BK)
Description Bend and edge protection grommets set
Description Short (BMEcat) (max. 150 characters) Bend and edge protection set
GLOBAL PART NAME (auto set) HOT Kit-PVC-FR-BK

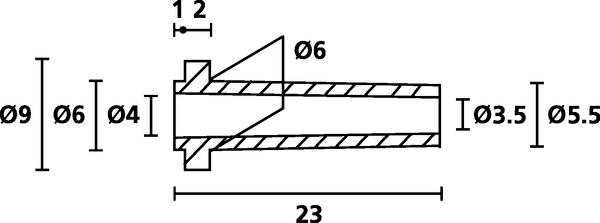

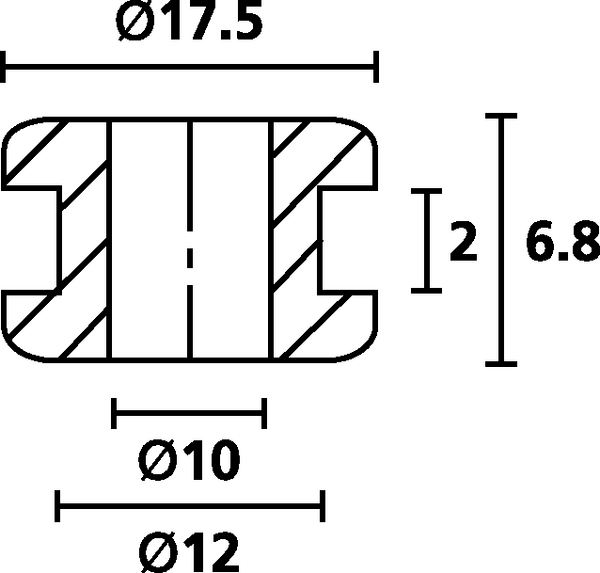

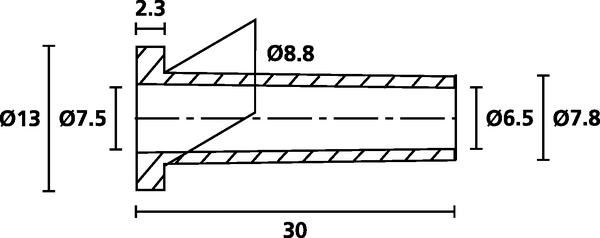

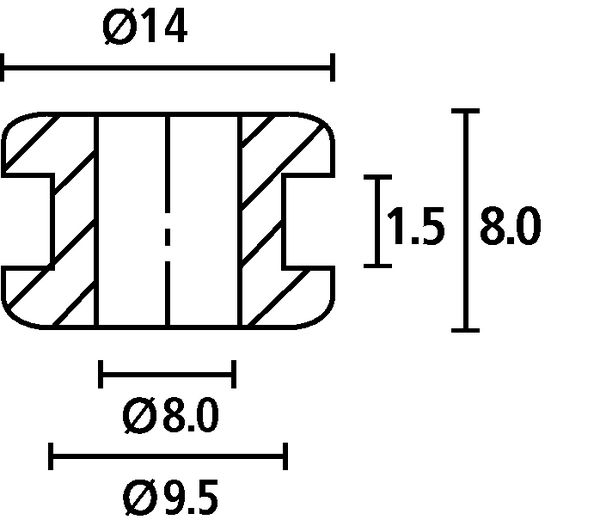

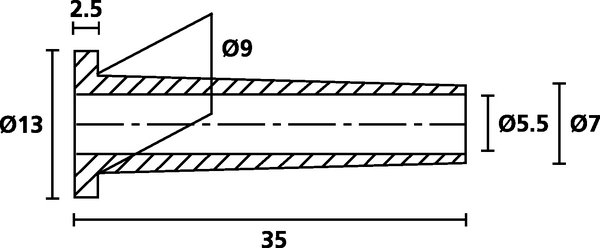

Kit Contents 15 pcs. bend protection grommets HV2101, 20 pcs. Edge protection grommets HV1201, 20 pcs. Bend protection grommets HV2213, 15 pcs. Bend protection grommets HV2210, 15 pcs. Edge protection grommets HV1203, 15 pcs. Bend protection grommets HV2101
Pack Cont. 10pcs.
Package Quantity per pieces
Product Family HOT Kit
Product Group Set for Bend and Edge Protection
Variant Closed
Shore Hardness A 55±5
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V0
Hazardous goods No
Material Polyvinylchloride, flame retardant (PVC-FR)
Operating Temperature - °C -30 °C to +60 °C
Specifications
EAN / GTIN 4031026187136
Packaging 1 - Height (m) 0.03m
Packaging 1 - Length (m) 0.017m
Packaging 1 - Qty 1
Packaging 1 - Type pieces
Packaging 1 - Volume (m³) 0.00001
Packaging 1 - Weight (kg) 0.214kg
Packaging 1 - Width (m) 0.011m
Packaging 2 - Height (m) 0.17m
Packaging 2 - Length (m) 0.288m
Packaging 2 - Qty 10
Packaging 2 - Type Carton
Packaging 2 - Volume (m³) 0.0087
Packaging 2 - Weight (kg) 2.27kg
Packaging 2 - Width (m) 0.178m
Packaging 3 - Height (m) 0.27m
Packaging 3 - Length (m) 0.6m
Packaging 3 - Qty 30
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0648
Packaging 3 - Weight (kg) 10.11kg
Packaging 3 - Width (m) 0.4m
Weight 0.214kg
ETIM 5.0 EC000879
ETIM 6.0 EC000879
