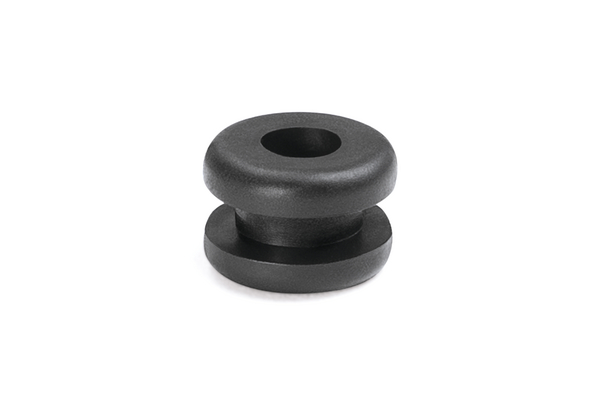

Edge Protection Grommets HV1201B

HV1201B, Article number: 633-02020

Features

  • Protects cables from sharp edges
  • Provides additional strain relief
  • Flexible and easy to apply
  • High resistance to chemicals and environmental influences

Certifications & Approvals

Application

Edge protection grommets are used wherever cable and wires are routed through outlets and apertures. HellermannTyton grommets offer excellent mechanical protection.

HV1201B is suitable for following markets and industries

Cable ∅ max 5.0mm
Cable ∅ min 4.0mm
Colour Black (BK)
Description Short (BMEcat) (max. 150 characters) Edge protection grommets black
GLOBAL PART NAME (auto set) HV1201B-PVC-FR-BK
Pack Cont. 2000pcs.
Package Quantity per pieces
Product Family HV1201B
Product Group Edge Protection Grommets
Variant Closed
Bundle ∅ max. 9.5mm
for Hole ∅ (FH) 6.4 mm
Height (H) 6.5mm
Height (H2) 2.5mm
Outside Ø (OD) 9.5mm
Shore Hardness A 55±5
∅ (D) 4.0mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V0
Hazardous goods No
Material Polyvinylchloride, flame retardant (PVC-FR)
Operating Temperature - °C -30 °C to +60 °C
Specifications
Waterproof No
EAN / GTIN 4031026186252
Packaging 1 - Height (m) 0.04m
Packaging 1 - Length (m) 0.2m
Packaging 1 - Qty 2000
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.0024
Packaging 1 - Weight (kg) 0.6kg
Packaging 1 - Width (m) 0.3m
Packaging 3 - Height (m) 0.27m
Packaging 3 - Length (m) 0.6m
Packaging 3 - Qty 36000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0648
Packaging 3 - Weight (kg) 14.1kg
Packaging 3 - Width (m) 0.4m
Weight 0.6kg
ETIM 5.0 EC000879
ETIM 6.0 EC000879
