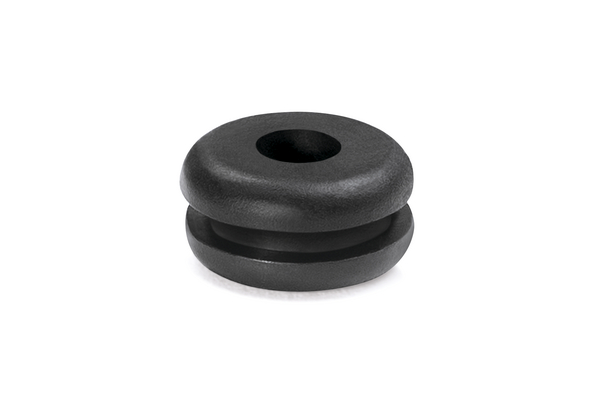

Edge Protection Grommets HV1209

HV1209, Article number: 633-02090

Features

  • Protects cables from sharp edges
  • Provides additional strain relief
  • Flexible and easy to apply
  • High resistance to chemicals and environmental influences

Certifications & Approvals

Application

Edge protection grommets are used wherever cable and wires are routed through outlets and apertures. HellermannTyton grommets offer excellent mechanical protection.

HV1209 is suitable for following markets and industries

Cable ∅ max 5.0mm
Cable ∅ min 4.0mm
Colour Black (BK)
Description Short (BMEcat) (max. 150 characters) Edge protection grommets black
GLOBAL PART NAME (auto set) HV1209-PVC-FR-BK
Pack Cont. 1000pcs.
Package Quantity per pieces
Product Family HV1209
Product Group Edge Protection Grommets
Variant Closed

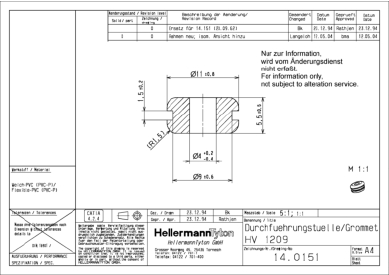

Bundle ∅ max. 11.0mm
for Hole ∅ (FH) 9.0 mm
Height (H) 5.5mm
Height (H2) 1.5mm
Outside Ø (OD) 11.0mm
Shore Hardness A 55±5
∅ (D) 4.0mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V0
Hazardous goods No
Material Polyvinylchloride, flame retardant (PVC-FR)
Operating Temperature - °C -30 °C to +60 °C
Specifications
Waterproof No
EAN / GTIN 4031026186344
Packaging 1 - Height (m) 0.04m
Packaging 1 - Length (m) 0.2m
Packaging 1 - Qty 1000
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.0024
Packaging 1 - Weight (kg) 0.5kg
Packaging 1 - Width (m) 0.3m
Packaging 3 - Height (m) 0.27m
Packaging 3 - Length (m) 0.6m
Packaging 3 - Qty 45000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0648
Packaging 3 - Weight (kg) 25.8kg
Packaging 3 - Width (m) 0.4m
Weight 0.5kg
ETIM 5.0 EC000879
ETIM 6.0 EC000879
