Edge Protection Grommets HV1215

HV1215, Article number: 633-02150

Features

  • Protects cables from sharp edges
  • Provides additional strain relief
  • Flexible and easy to apply
  • High resistance to chemicals and environmental influences

Certifications & Approvals

Application

Edge protection grommets are used wherever cable and wires are routed through outlets and apertures. HellermannTyton grommets offer excellent mechanical protection.

HV1215 is suitable for following markets and industries

Cable ∅ max 7.0mm
Cable ∅ min 6.0mm
Colour Black (BK)
Description Short (BMEcat) (max. 150 characters) Edge protection grommets black
GLOBAL PART NAME HV1215-PVC-FR-BK
Pack Cont. 2000pcs.
Package Quantity per pcs.
Product Family HV1215
Product Group Edge Protection Grommets
Variant Closed

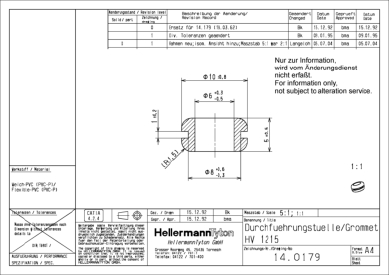

Bundle ∅ max. 10.0mm
Diameter (D) 6.0mm
for Hole ∅ (FH) 8.0 mm
Height (H) 5.0mm
Height (H2) 1.0mm
Outside Ø (OD) 10.0mm
Shore Hardness A 55±5
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V0
Hazardous good No
Material Polyvinylchloride, flame retardant (PVC-FR)
Operating Temperature - °C -30 °C to +60 °C
Specifications
Waterproof No
EAN / GTIN 4031026186375
Packaging 1 - Height (m) 0.04m
Packaging 1 - Length (m) 0.2m
Packaging 1 - Qty 2000
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.0024
Packaging 1 - Weight (kg) 0.4kg
Packaging 1 - Width (m) 0.3m
Packaging 3 - Height (m) 0.27m
Packaging 3 - Length (m) 0.6m
Packaging 3 - Qty 60000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0648
Packaging 3 - Weight (kg) 15.3kg
Packaging 3 - Width (m) 0.4m
Weight 0.4kg
ETIM 5.0 EC000879
ETIM 6.0 EC000879
