Edge Protection Grommets HV1502

HV1502, Article number: 633-05020

Features

  • Protects cables from sharp edges
  • Provides additional strain relief
  • Flexible and easy to apply
  • High resistance to chemicals and environmental influences

Certifications & Approvals

Application

Edge protection grommets are used wherever cable and wires are routed through outlets and apertures. HellermannTyton grommets offer excellent mechanical protection.

HV1502 is suitable for following markets and industries

Cable ∅ max 7.5mm
Cable ∅ min 6.5mm
Colour Black (BK)
Description Short (BMEcat) (max. 150 characters) Edge protection grommets black
GLOBAL PART NAME HV1502-PVC-BK
Pack Cont. 2000pcs.
Package Quantity per pcs.
Product Family HV1502
Product Group Edge Protection Grommets
Variant Closed

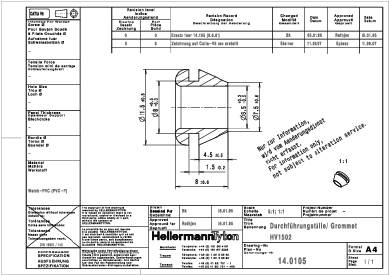

Bundle ∅ max. 11.5mm
Diameter (D) 6.5mm
for Hole ∅ (FH) 8.0 mm
Height (H) 8.0mm
Height (H2) 1.5mm
Outside Ø (OD) 11.5mm
Shore Hardness A 70±5
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Hazardous good No
Material Polyvinylchloride (PVC)
Operating Temperature - °C -30 °C to +60 °C
Specifications
Waterproof No
EAN / GTIN 4031026186511
Packaging 1 - Height (m) 0.068m
Packaging 1 - Length (m) 0.25m
Packaging 1 - Qty 2000
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00357
Packaging 1 - Weight (kg) 0.858kg
Packaging 1 - Width (m) 0.21m
Packaging 3 - Height (m) 0.27m
Packaging 3 - Length (m) 0.6m
Packaging 3 - Qty 24000
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0648
Packaging 3 - Weight (kg) 13.596kg
Packaging 3 - Width (m) 0.4m
Weight 0.858kg
ETIM 5.0 EC000879
ETIM 6.0 EC000879
