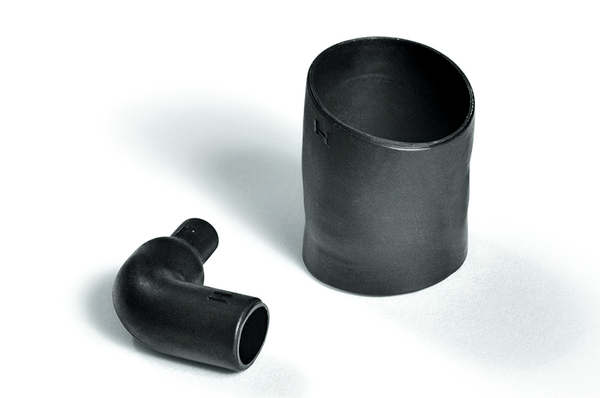

Helashrink 1100 Series, without rib
Art.-No. 411-01002 | 1101-1-B7P-PO-X-BK Details

  • Strain relief for connector cable
  • Easy re-entry for repair when combined with hot melt adhesive

Request your individual offer now

Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
Application Tool H6100, CHG900
Colour Black (BK)
Local order number 1101-1-B7P
Material Polyolefin, cross-linked (PO-X)
Pack Cont. 1pc.
Package Content packed in Bag
PART DESCRIPTION 1101-1-B7P-PO-X-BK
Product Family Helashrink 1100 Series, without rib
Product Group Right-Angle Shapes
Angle 90°
Flexibility Semi rigid

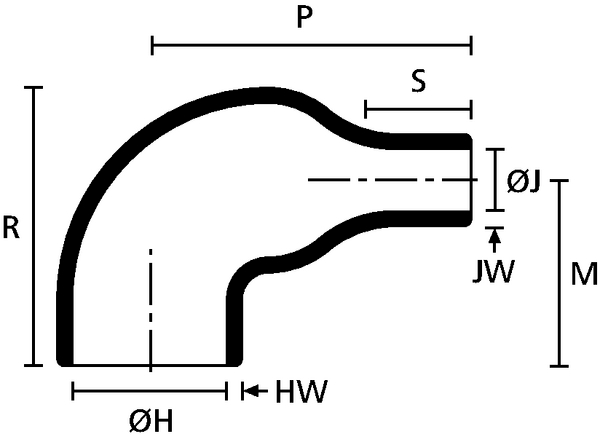

HW ± 20% 2mm
JW ± 30% 2mm
P ± 10% 53.3mm
R nom 43.2mm
R ± 10% 43.2mm
S nom 15.7mm
V ± 10% 3mm
Weight/Unit 0.014kg

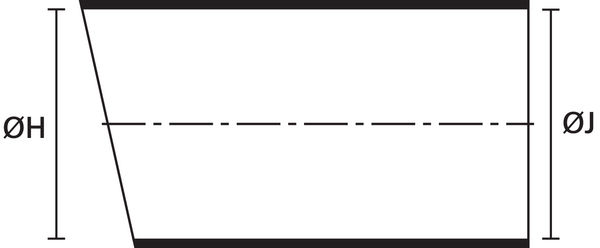

∅H max b 27.9mm
∅H min a 43.1mm
∅J max b 9.7mm
∅J min. a 43.1mm
Dielectric Strength 14kV/mm
Dielectric Strength test method ASTM D2671
Flammability ASTM D635
Minimum Shrink Temperature - °C +135 °C
Nato number 5970-00-133-9245
Operating Temperature -55 °C to +135 °C
Specifications
Tensile Strength 13MPa
Country of Origin GB
GTIN-13 / EAN 5022660406850
Packaging 1 - Height (m) 0.050m
Packaging 1 - Length (m) 0.200m
Packaging 1 - Qty 1
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.0012
Packaging 1 - Weight (kg) 0.014kg
Packaging 1 - Width (m) 0.120m
ETIM 7.0 Key EC002464
ETIM 8.0 Key EC002464
ETIM 9.0 Key EC002464
UNSPSC Key 39121721
