Helashrink 1100 Series, with rib
Art.-No. 411-01022 | 1101-4-J-PO-X-BK | Details

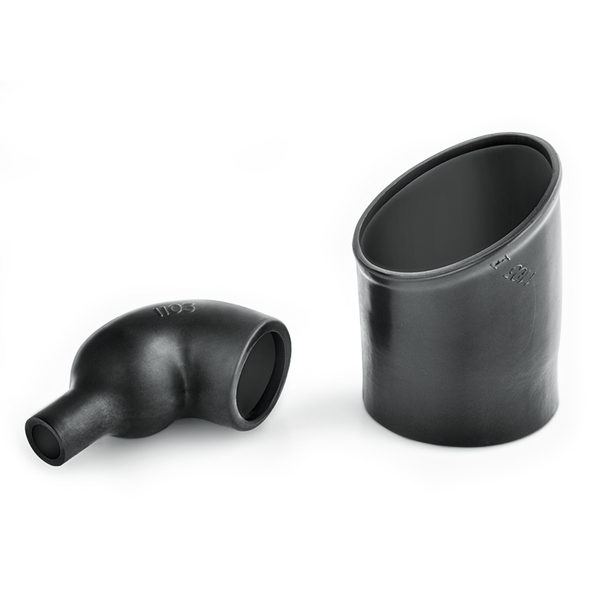

1108-4 supplied / fully recovered.

Used in conjunction with a circular grooved adaptor for strain relief

Add to watchlist

Request your individual offer now

Request quote

Distributors near you

More products in this product group:

Right-Angle Shapes, MIL style >

Base Data

Application	Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
Application Tool	H6100, CHG900
Colour	Black (BK)
Local order number	1101-4-J
Material	Polyolefin, cross-linked (PO-X)
Pack Cont.	1pc.
Package Content packed in	Bag
PART DESCRIPTION	1101-4-J-PO-X-BK
Product Family	Helashrink 1100 Series, with rib
Product Group	Right-Angle Shapes, MIL style
Variant	For plug

Product Dimensions


Angle	90°
Flexibility	Flexible
HW ± 20%	2mm
JW ± 30%	2mm
M nom	27.9mm
P ± 10%	53.3mm
R ± 10%	43.2mm
T ± 20%	1.7mm
V max	3.3mm
Weight/Unit	0.014kg
∅H max b	27.9mm
∅H min a	42.6mm
∅J max b	9.7mm
∅J min. a	42.6mm

Downloads

Moulded Shapes Brochure 2016

Download

Specifications

Designation as per VG-Norm	VG 95343 T06 F 009 A
Dielectric Strength	18kV/mm
Dielectric Strength test method	ASTM D2671
Flammability	ASTM D635
Minimum Shrink Temperature - °C	+135 °C
Nato number	5975-00-025-7947
Operating Temperature	-55 °C to +135 °C
Specifications
Tensile Strength	19MPa
UV-Stabilised	No

Logistics and Packaging

Country of Origin	GB
GTIN-13 / EAN	5022660407260
Packaging 1 - Height (m)	0.050m
Packaging 1 - Length (m)	0.200m
Packaging 1 - Qty	1
Packaging 1 - Type	Bag
Packaging 1 - Volume (m³)	0.0012m³
Packaging 1 - Weight (kg)	0.014kg
Packaging 1 - Width (m)	0.120m

More Information

ETIM 7.0 Key	EC002464
ETIM 8.0 Key	EC002464
ETIM 9.0 Key	EC002464
UNSPSC Key	39121721
