Label, red, thermal transfer print, 50.8x92.25mm, 50pcs.
Art.-No. 596-00241 | DCRATING-840/281-RD Details

Request your individual offer now

Application For use on the DC Disconnect. Voltage data can be printed using a thermal transfer printer.
Application Method Labels are applied by hand to PV installations where durable UV resistant marking is required.
Colour Red (RD)
Colour of Print White (WH)
Local order number 596-00241
Material Type 840/281, Polyester, UV-stabilised, clear polyester laminate (840/281)
Pack Cont. 50pcs.
Package Content packed in roll
PART DESCRIPTION DCRATING-840/281-RD
Product Group Printable Solar Installation Labels
Short Description 3.75" X 2" DC RATING LABEL - 50/RL

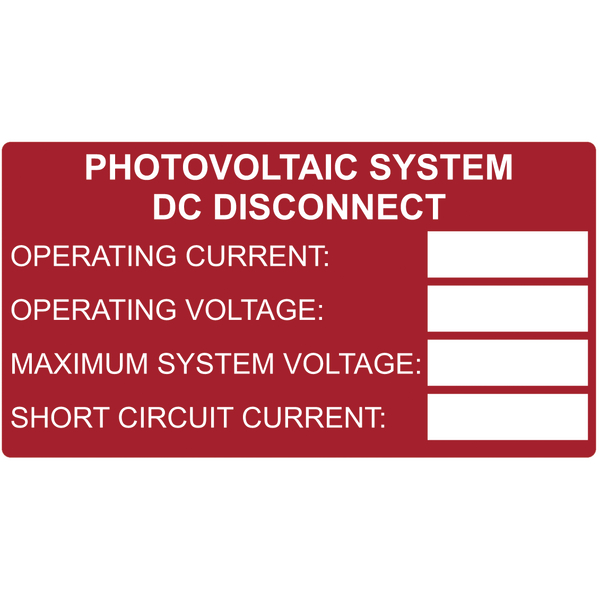

Technical Description 3.75" X 2" White text on red background that reads as: "PV SYSTEM DC DISCONNECT; OPERATING CURRENT; OPERATING VOLTAGE; MAXIMUM SYSTEM VOLTAGE; SHORT CIRCUIT CURRENT." 50 per roll. Label is also printable using a thermal transfer printer to add the variable voltage information on demand.
Height (H) 50.8mm
Print Method thermal transfer print
Thickness (T) 64.0µm
Width (W) 92.25mm
Adhesive Acrylic
Adhesive Operating Temperature -40 °C to +150 °C
CE Certification No
CSA Certified Yes
Curing Temperature +10 °C
Halogen-free Yes
Operating Temperature -40 °C to +150 °C
Recommended Ribbon Type TT822OUT
Specifications
Specifications CSA 66956, IFC 2012, NEC2014, UL 969
UL Listed (US and Canada) No
UL Recognized (US and Canada) Yes
UL-File Number MH14382, MH16736
UV-Stabilised (Yes/No) Yes
Country of Origin US
GTIN-13 / EAN 4031026668888
Labels per Column 1
Labels per Row 1
Packaging 1 - Weight (kg) 0.521kg
ETIM 7.0 Key EC001530
ETIM 8.0 Key EC001530
ETIM 9.0 Key EC001530
UNSPSC Key 55121606
