4.12" X 2" DC CONDUCTOR HAZARD - 50/RL
Art.-No. 596-00258
| WDCCU-443/281-RD
|
Details
Request your individual offer now
Request quote
More products in this product group:
| Application | For use anywhere for ungrounded circuits |
| Application Method | Labels are applied by hand to PV installations where durable UV resistant marking is required. |
| Colour | Red (RD) |
| Colour of Print | White (WH) |
| Local order number | 596-00258 |
| Material | Type 443/281, UV-stabilised, flexible white vinyl with clear polyester laminate (443/281) |
| Pack Cont. | 50pcs. |
| Package Content packed in | roll |
| PART DESCRIPTION | WDCCU-443/281-RD |
| Product Group | Pre-Printed Solar Installation Labels |
| Short Description | 4.12" X 2" DC CONDUCTOR HAZARD - 50/RL |

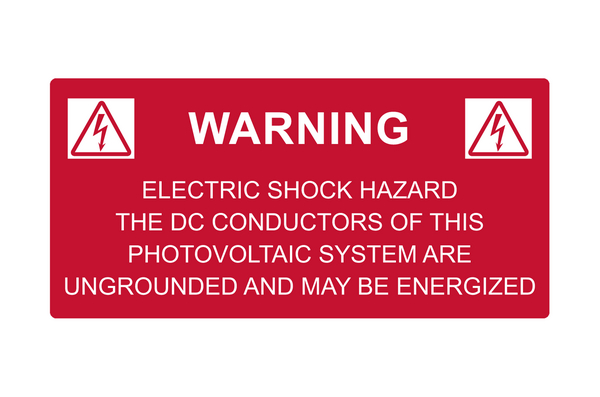

| Technical Description | 4.12" X 2" White text on red background that reads as: "WARNING - ELECTRICAL SHOCK HAZARD. THE DC CONDUCTORS OF THIS PHOTOVOLTAIC SYSTEM ARE UNGROUNDED AND MAY BE ENERGIZED" - 50 per roll. |
Download
| Adhesive | Acrylic |
| Adhesive Operating Temperature | -40 °C to +79 °C |
| CE Certification | No |
| CSA Certified | No |
| Curing Temperature | +10 °C |
| Halogen-free | No |
| Operating Temperature | -40 °C to +79 °C |
| Specifications |
|
| Specifications | NEC2011, UL 969 |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | Yes |
| UL-File Number | MH11410 |
| UV-Stabilised | Yes |
