Fittings for metallic conduits with plastic coating PCS50-SM-PG42

PCS-SM Swivel External Thread, IP54, Article number: 166-31118

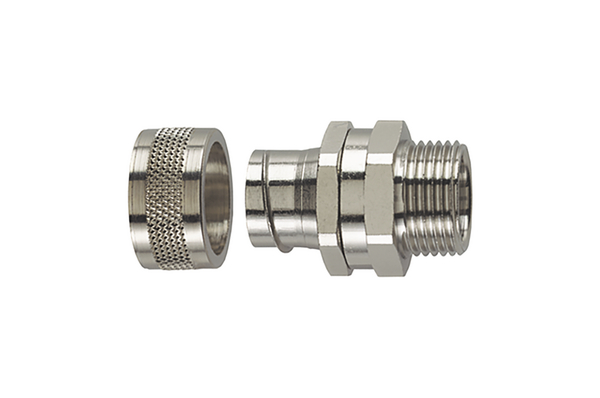

HelaGuard PCS-SM Swivel External Thread.

Features

  • Two-part fitting of shell and body with external thread
  • External thread swivels about main body
  • Provides tight, reliable hold of conduit
  • Can be secured with locknut

Certifications & Approvals

Application

Swivel external thread, nickel plated brass.

PCS-SM Swivel External Thread, IP54 is suitable for following markets and industries

Colour Metal (ML)
Description Short (BMEcat) (max. 150 characters) Fitting for metallic conduit with Swivel External Thread IP54 ø50mm PG42
Features and Benefits Swivel external thread, nickel plated brass.
GLOBAL PART DESCRIPTION PCS50-SM-PG42-NPB-ML
Metallic Fitting Type Standard
Pack Cont. 1pc.
Package Quantity per Bag
Product Family PCS-SM Swivel External Thread, IP54
Product Group Fittings for metallic conduits with plastic coating
Thread type PG
Type of connection Thread
Variant Straight
A/F Thread (A/F2) 58mm
Height (H) 55.0mm
Length (L) 54.2mm
Lowest inner diameter 44.8mm
Min. Bore Size (B) 44.8mm
Nominal ∅ 50mm
Nominal ∅ (imperial) 2"
Thread Length (TL) 15.0mm
Thread Size PG42
ELV compliant Dir. Art. 4 (2) YES
Halogenfree Yes
Hazardous good No
IP-Rating IP54
Material Nickel Plated Brass (NPB)
Operating Temperature - °C -100 °C to +300 °C
Specifications
EAN / GTIN 4031026307299
Packaging 1 - Height (m) 0.05m
Packaging 1 - Length (m) 0.204m
Packaging 1 - Qty 1
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00163
Packaging 1 - Weight (kg) 0.3kg
Packaging 1 - Width (m) 0.16m
Weight 0.3kg
ETIM 5.0 EC001180
ETIM 6.0 EC001180
