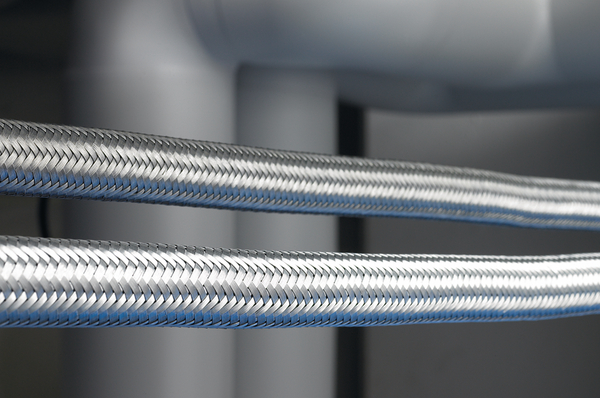

Metallic conduits with plastic coating and metallic overbraid PCSB40

PCSB Galvanised Steel Conduit, PVC Coating, Galvanised Steel Overbraid, Article number: 166-33605

Features

  • High compression, tensile and impact strength
  • Very high abrasion resistance
  • Very flexible
  • Provides EMC screening

Certifications & Approvals

Application

Industrial environments where higher abrasion resistance or EMC screening are required.

PCSB Galvanised Steel Conduit, PVC Coating, Galvanised Steel Overbraid is suitable for following markets and industries

Colour Metal (ML)
Conduit Model Metallic with plastic coating and metallic braid
Description Short (BMEcat) (max. 150 characters) Galvanised Steel Conduit with PVC Coating and Galvanised Steel Overbraid ø40mm reel 10m
Features and Benefits Flexible galvanised steel conduit with PVC coating and galvanised steel overbraid.
GLOBAL PART NAME (auto set) PCSB40-GS/PVC-ML
Pack Cont. 10m
Package Quantity per Reel
Product Family PCSB Galvanised Steel Conduit, PVC Coating, Galvanised Steel Overbraid
Product Group Metallic conduits with plastic coating and metallic overbraid

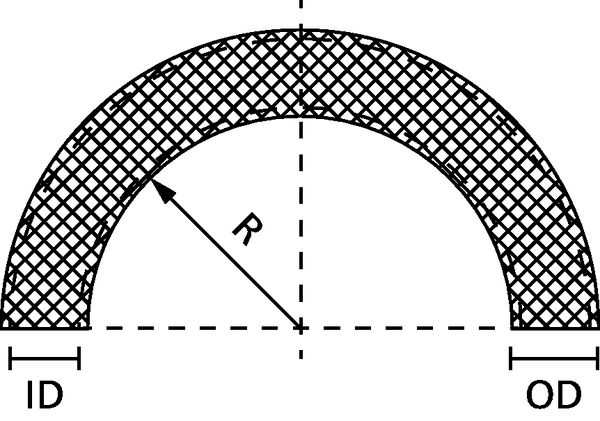

Inside Ø (ID) 37.6mm
Min. Bending Radius (R) 80mm
Nominal ∅ 40mm
Nominal ∅ (imperial) 1-9/16"
Outside Ø (OD) 45.7mm
Weight 1286g/m
∅ (D) 37.6mm
Electrical characteristics Not specified
ELV compliant Dir. Art. 4 (2) YES
EN61386 Classification 443140652410 (with compression fittings)
Hazardous goods No
IP-Rating IP66 (in conjunction with HG fittings)
Material Galvanised Steel (GS), Polyvinylchloride (PVC)
Operating Temperature - °C -15 °C to +70 °C
Specifications
EAN / GTIN 4031026308616
Packaging 1 - Height (m) 0.21m
Packaging 1 - Length (m) 0.5m
Packaging 1 - Qty 10
Packaging 1 - Type Reel
Packaging 1 - Volume (m³) 0.0525
Packaging 1 - Weight (kg) 10.9kg
Packaging 1 - Width (m) 0.5m
Reel Length 10m
Weight 10.9kg
ETIM 5.0 EC001179
ETIM 6.0 EC001179
