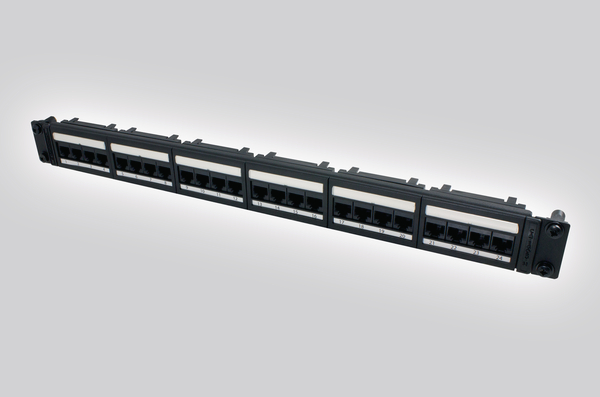

Global Category 5e 1/2408IDCG5E/BK

1U 24 Port Panel, Article number: 853-25017

Features

  • Exceeds Category 5e performance standards
  • 568A or 568B wiring options
  • 4 port RJ45 modules
  • Double labelling fields and software available
  • Magnifying covers over labelling fields
  • Supplied with Rack Snap mounting fixings
  • Also available in a 2U 48 port configuration
  • Backward compatible to Category 5 and voice
Application 2 The Cat5E Global panel is designed to support any data or voice protocol that is capable of running over a Cat5E cabling system and is backwards compatible with existing Cat5 and voice network infrastructure.
Colour Black (BK)
Description The Global Category 5e range of patch panels offer exceptional performance and are available in 1U 24 port and 2U 48 port versions. Each panel is constructed of 6 modular units, each offering 4 RJ45 ports. The panel can be supplied partially loaded to meet the exact requirements of the application, giving a cost effective solution. The Global Panel is supplied with Rack Snap mounting fixings and a rear cable manager as standard. The Global Panel offers 2 labelling fields as standard with a magnifying lens for clear identification. The Category 5e Global products are designed to support any data or voice protocol that is capable of running over a Category 5e cabling system.
GLOBAL PART NAME 1/2408IDCG5E/BK
Pack Cont. 1pc.
Panel Fixing Method rack snap
Performance Category Category 5E (Class D)
Port count 24
Product Family 1U 24 Port Panel
Product Group Global Category 5e
Short Description 1U 24P F/L GLOBAL 5E KATT UTP
Technical Description The Category 5e Global Patch Panel is manufactured from black powder coated mild steel and the jack presentation within the Global patch panel is a 4 port modular PCB assembly which can be removed and replaced if required. Each PCB module is tested to exceed the latest published versions of ISO/IEC 11801, BS/EN50173 and ANSI/TIA/EIA 568-C Category 5e. The Global Panel is supplied with a comprehensive colour and numbering label on the rear of the modules to ensure error free terminations. The Alpha Label software package is available for download at www.htdata.co.uk and enables straight forward port labelling. The Global Category 5e Panel offers backward compatibility with Category 5 and voice products.
Type 1/2408IDCG5E/BK

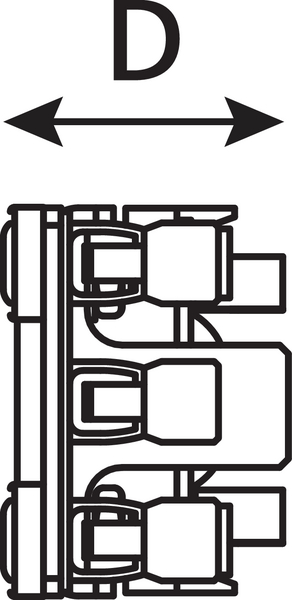

Depth (D) 31mm
Height (H) 44mm
Height, Units 1U
Width (W) 483mm
ELV compliant Dir. Art. 4 (2) YES
Dimensions W x H x D 483 mm x 44 mm x 31 mm
EAN / GTIN 4031026263748
Packaging 1 - Qty 1
Packaging 2 - Qty 0
Packaging 3 - Qty 0
Packaging 4 - Qty 0
Weight 2.2kg
