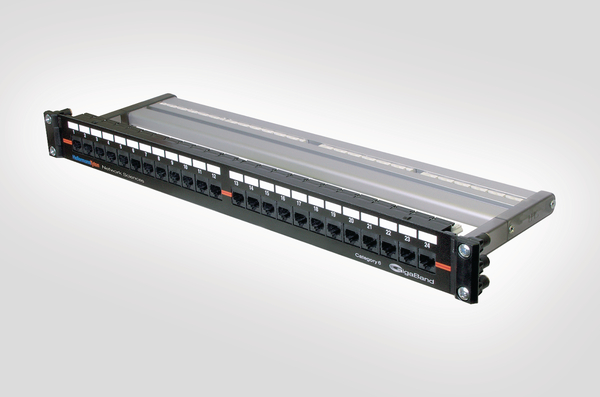

GigaBand Category 6 1/2408IDCNGBHDCM/BK

1U 24 Port Panel, Article number: 853-40075

Features

  • Exceeds Category 6 performance standards
  • All modules are individually removable and replaceable
  • Supplied with Rack Snap mounting fixings
  • Includes aluminium rear cable management as standard
  • Patented slide label system and software available
  • 568A or 568B wiring options
  • Also available in a 2U 48 port configuration
  • Backward compatible with Category 5e, Category 5 and voice
Colour Black (BK)
Density low
Description GigaBand Category 6 range from HellermannTyton has been designed to offer exceptional Category 6 performance. The patch panel comprises of individual modular PCB’s providing flexibility in the case of port damage or failure. The GigaBand Panel is available in 1U 24 Port and 2U 48 Port versions and is supplied with HellermannTyton’s unique aluminium snap-on rear cable manager and Rack Snap mounting fixings as standard, Cage Nut kit versions are available on request. The GigaBand products are designed to support any data or voice protocol that is capable of running over a Category 6 cabling system.
GLOBAL PART NAME 1/2408IDCNGBHDCM/BK
Pack Cont. 1pc.
Panel Fixing Method rack snap
Performance Category Category 6 (Class E)
Port count 24
Product Family 1U 24 Port Panel
Product Group GigaBand Category 6
Short Description 1U 24P A/S HD GIGABAND NEW+CM
Technical Description The GigaBand Category 6 patch panel is manufactured from black powder coated mild steel and the PCB modules are mounted in the unique Alpha Snap plastic moulding which is attached to the front panel. Each PCB is equipped with a cable retention tool bar and the end modules of each horizontal row are colour coded and numbered for error free termination. The panel incorporates HellermannTyton’s patented sliding label system enabling clear and effective port identification. Each PCB module is tested to exceed the latest published versions of ISO/IEC 11801, BS/EN50173 and ANSI/TIA/EIA 568-C Category 6. The Alpha Label software package is available for download at www.htdata.co.uk and enables straight forward port labelling. The GigaBand Category 6 Panels offer backward compatibility with Category 5e, Category 5 and voice products.
Type 1/2408IDCNGBHDCM/BK

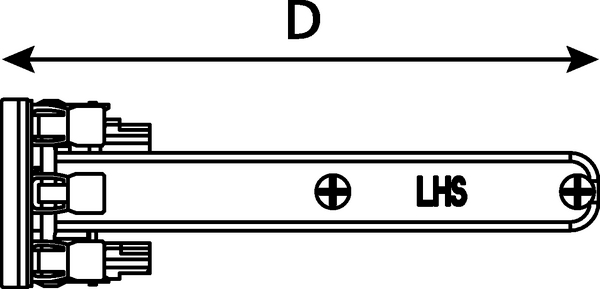

Depth (D) 136mm
Height (H) 44mm
Height, Units 1U

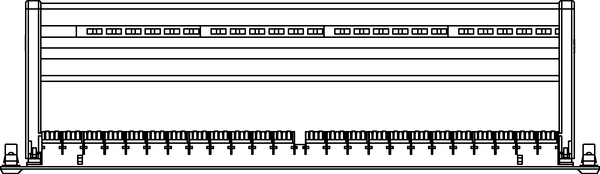

Width (W) 483mm
Dimensions W x H x D 483 mm x 44 mm x 136 mm
EAN / GTIN 5022660846458
