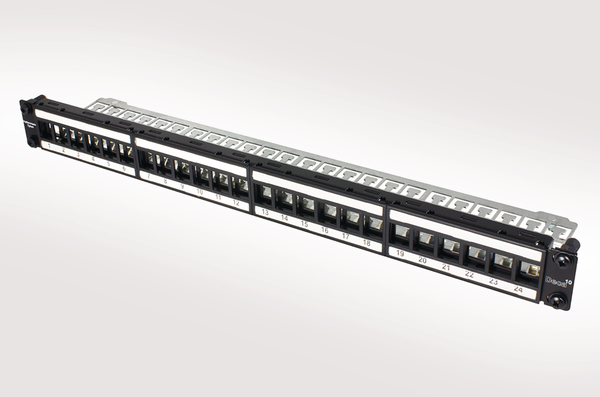

1U 24 Port Fixed Panel
Art.-No. 853-55006 | PP24G6A-PA1UCN-FD.XX Details

This product is not available anymore.
  • 24 shielded Deca¹⁰ Category 6A/6 ports in 1U
  • Dual labelling fields
  • 360° shielding eliminates alien crosstalk
  • Supplied with Rack Snaps
  • Also available as a sliding panel
Show more

Request your individual offer now

Colour Black (BK)
PART DESCRIPTION PP24G6A-PA1UCN-FD.XX
Performance Category Category 6A (Class EA)
Port count 24
Product Family 1U 24 Port Fixed Panel
Product Group Modular FTP
Technical Description The patch panel is manufactured from black powder coated mild steel and the integral earthing plate is galvanised mild steel. The integral earthing plate bonds each keystone jack to earth eliminating opportunities for alien cross talk to ensure 360° shielding. The Modular FTP Keystone Patch Panel is supplied with Rack Snap mounting fixings as standard.

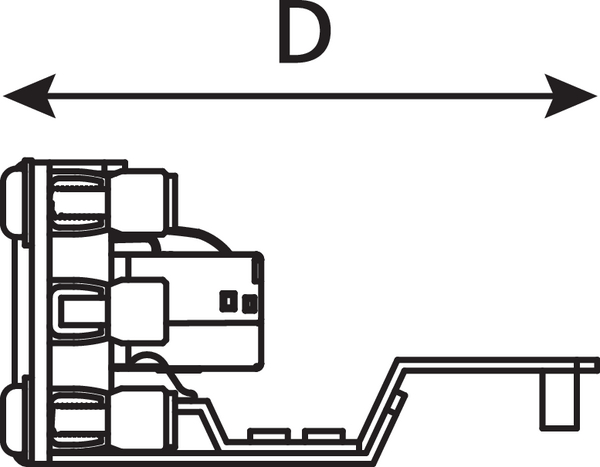

Depth (D) 85.0mm
Height (H) 44.0mm
Width (W) 483.0mm

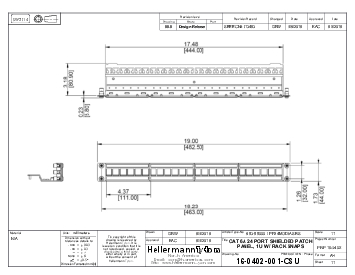

Dimensions W x H x D 483.0 mm x 44.0 mm x 85.0 mm
GTIN-13 / EAN 5022660930430
ETIM 8.0 Key EC000264
ETIM 9.0 Key EC000264
