Wire identification sleeves - Ladder style format

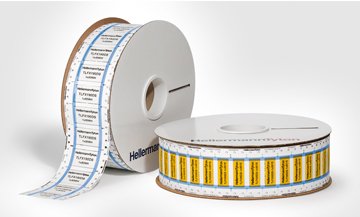

TLFX DS - 2:1 LFH ″Ladder Style″ Sleeves

Wire identification sleeves

TLFX DS is a rail approved 2:1 heatshrink material pre-cut and formatted onto a convenient 'ladder' system that allows printing on both sides of the marker. The user can easily choose and pick the required marker.
Print with HellermannTyton's premium range of thermal printers and ribbons.

Features and Benefits

  • Shrink ratio 2:1
  • 50mm, 25mm and 16mm pre-cut marker options as standard, other lengths available on request
  • Available in yellow or white
  • Cable range 38.1mm to 1.2mm
  • Halogen free
  • Low smoke propagation, density and toxicity
  • High Oxygen Index value (35.5%)
  • Meets EN45545-2 (HL3, HL2, HL1)

TDRT DS - 3:1 Diesel Resistant ″Ladder Style″ Sleeves

Wire identification sleeves

TDRT DS printed with TTDTHOUT ribbon is an NF F 00-608 compliant diesel resistant 3:1 heatshrink material pre-cut and formatted onto a convenient 'ladder' system that allows printing on both sides of the marker. The user can easily choose and pick the required marker.
Print with HellermannTyton's premium range of thermal printers and ribbons.

Features and Benefits

  • Shrink ratio 3:1 for sizes 2.4  3.2  4.8  6.4 and 9.5
  • Shrink ratio 2:1 for larger sizes (industry standard)
  • Available in yellow as standard and white on request
  • Certified to NF F 00-608 (12/1995) using TTDTHOUT and   TTRHT ribbon, and laser beam equipment

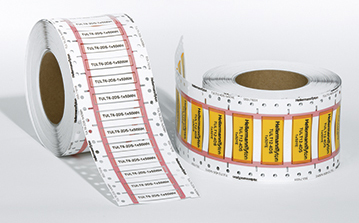

TULT DS – 3:1 UL Listed ″Ladder Style″ Sleeves

Wire identification sleeves

TULT DS is a UL approved 3:1 heatshrink material heatshrink material pre-cut and formatted onto a convenient 'ladder' system that allows printing on both sides of the marker. The user can easily choose and pick the required marker.
Print with HellermannTyton's premium range of thermal printers and ribbons.

Features and Benefits

  • Shrink ratio 3:1
  • 50mm, 25mm and 16mm pre-cut marker options as standard
  • Available in white or yellow
  • Meets MIL-STD 202G Method 215 print requirments using TTDTHOUT ribbon
  • Fulfils UL224 VW-1 requirements
  • Fulfils LUL C3349 requirements
  • Good mechanical strength and resistance to organic solvents and chemicals

Application

Wire identification sleeves

Step 1: Bend liner at side slit.

Wire identification sleeves

Step 2: Insert cable and pull marker away from the liner.

Wire identification sleeves

Step 3: Marker applied!
