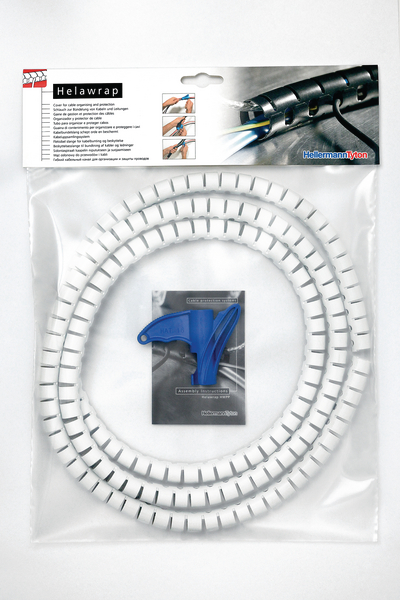

Helawrap Cable Cover HWPP25L2

Helawrap HWPP, Article number: 161-64415

Features

  • Ideal solution for bundling, protecting and fixing cables
  • Quick and effortless to apply
  • Good abrasion protection
  • Special profile enables branching off cable at any point
  • Can be removed and reapplied often
  • Available in several colours and sizes
  • Handy applicator tool included

Certifications & Approvals

Application

Helawrap is used to bundle and protect cables and wires in the electrical industry, panel building, machine building and many other industrial applications. Helawrap is the time-saving solution for industrial applications.

Helawrap HWPP is suitable for following markets and industries

Application 2 Ideal for bundling and protecting cables and wires can be removed and reapplied easily. Due to its excellent flame-retardant properties Helawrap Polyamide 6 VO is used wherever fire protection is essential.
Application Tool HAT25
Colour White (WH)
Description Short (BMEcat) (max. 150 characters) Cable cover 23 mm - 27 mm, PP, white
GLOBAL PART DESCRIPTION HWPP25L2-PP-WH
Pack Cont. 2m
Package Quantity per Pack
Product Family Helawrap HWPP
Product Group Helawrap Cable Cover
Variant Spiral Binding
Bundle ∅ max. 27mm
Bundle ∅ min. 23mm
Bundlediamter Range ETIM (Braided Sleeving) 23-27
Diameter (D) 24.0mm
Length (L) 2m
Nominal ∅ 25mm
Nominal ∅ (imperial) 1"
Pitch (P) 20mm
Wall (WT) 1.05mm
Wall (WT) (imperial) 0.041"
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Halogenfree Yes
Hazardous good No
Intermittent Operating Temperature +140°C
Material Polypropylene (PP)
Melting Point +284 °F (+140 °C)
Operating Temperature - °C -60 °C to +110 °C, intermittent +140 °C
Specifications
EAN / GTIN 5022660688546
Packaging 1 - Height (m) 0.05m
Packaging 1 - Length (m) 0.36m
Packaging 1 - Qty 1
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00522
Packaging 1 - Weight (kg) 0.2183kg
Packaging 1 - Width (m) 0.29m
Packaging 3 - Height (m) 0.204m
Packaging 3 - Length (m) 0.591m
Packaging 3 - Qty 8
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.048
Packaging 3 - Weight (kg) 2.3964kg
Packaging 3 - Width (m) 0.398m
Packaging 4 - Height (m) 1.164m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 160
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.117
Packaging 4 - Weight (kg) 68.88kg
Packaging 4 - Width (m) 0.8m
Weight 0.21kg
ETIM 5.0 EC002604
ETIM 6.0 EC002604
