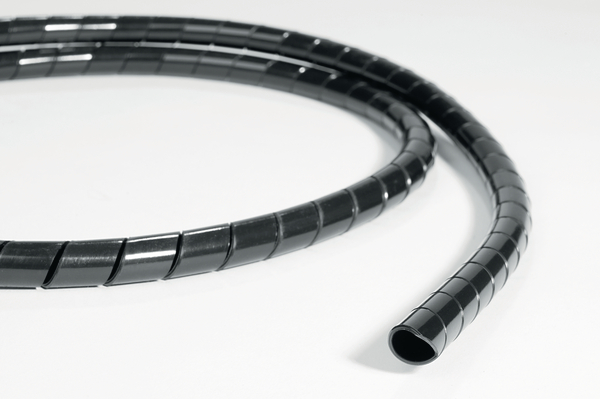

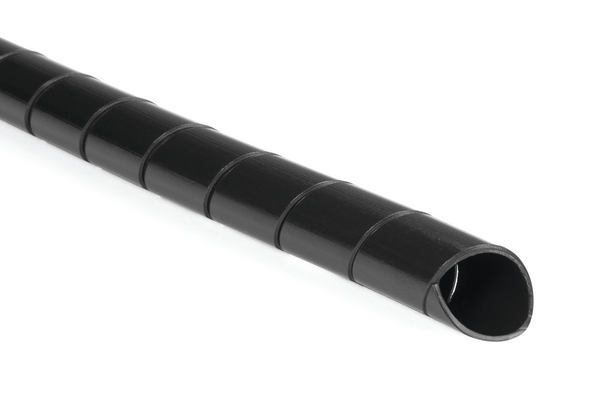

Polyethylene Spiral Binding with UL94V0 classification  SBPAV09

SBPAV0, Article number: 161-44201

Features

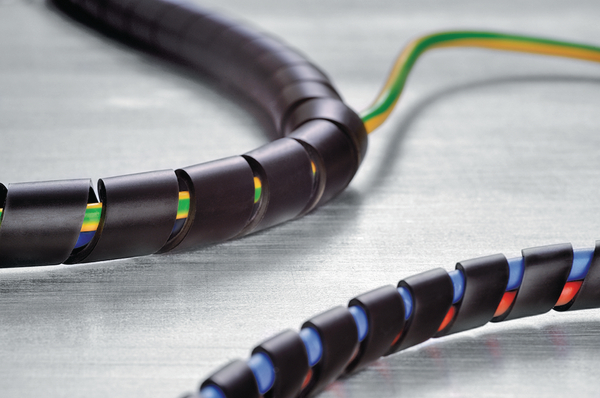

  • Organises and protects cables and hoses
  • Self-extinguishing according to UL94 V0
  • Very good protection against abrasion
  • Suitable for retro-fitting
  • Cables branch out at any point
  • Wide range of diameters

Certifications & Approvals

Application

Due to its excellent flame protection properties, SBPAV0 spiral binding is particularly suitable for the rail and aviation industries as well as public buildings.

SBPAV0 is suitable for following markets and industries

Application 2 Available in flame retardant PA6 (SBPAV0) and high performance PTFE (SBPTFE).
Colour Black (BK)
Description Short (BMEcat) (max. 150 characters) Spiral binding polyamide 6 V0 black
Features and Benefits A versatile way of protecting and tidying wires, cables and tubes, wires can easily be broken out at any point. Available in flame retardant polythene.
GLOBAL PART NAME (auto set) SBPAV09-PA6V0-BK
Pack Cont. 100
Package Quantity per Bag
Product Family SBPAV0
Product Group Polyethylene Spiral Binding with UL94V0 classification
Variant Spiral Binding
Bundle ∅ max. 100mm
Bundle ∅ min. 10mm
Bundlediamter Range ETIM (Braided Sleeving) 10-100
Length (L) 200mm
Nominal ∅ 9mm
Nominal ∅ (imperial) 3/8"
Pitch (P) 12.5mm
Wall (WT) 1.0mm
∅ (D) 9.0mm
EN 45545-2 Results R22 HL2, R23 HL2
Flammability UL 94 V0
Halogenfree Yes
Intermittent Operating Temperature +120°C
Material Polyamide 6 V0 (PA6V0)
Operating Temperature - °C -40 °C to +90 °C, (+160 °C, for 200 h)
Specifications
Specifications EN 45545-2:2013
EAN / GTIN 5022660669545
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Weight 4.8kg
ETIM 5.0 EC002604
ETIM 6.0 EC002604
