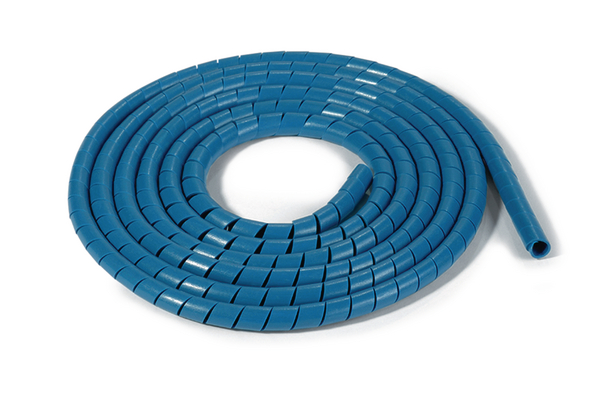

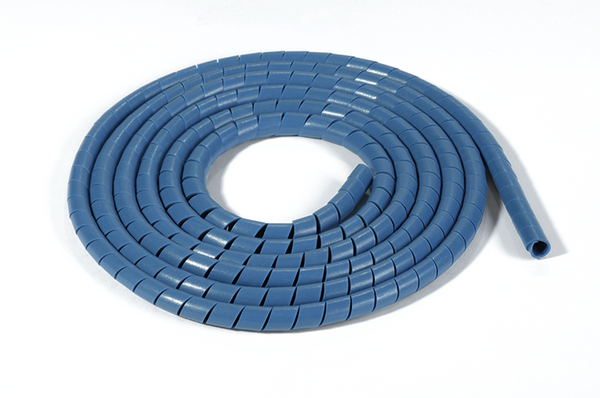

Metal-Content Spiral Binding SBPEMC16

SBPEMC, Article number: 161-46300

Features

  • High metal-content for reliable detection with standard detection equipment
  • Stainless steel preserves resistance to corrosion
  • Blue colour for enhanced visibility

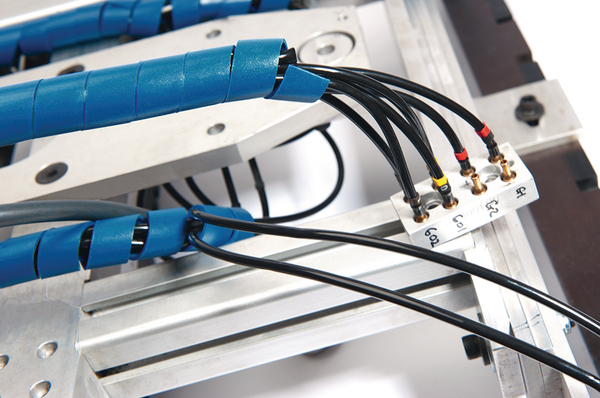

  • Ideal solution for bundling and protecting cables and hoses
  • Highly flexible
  • Suitable for retro-fitting
  • Branching off cable at any point

Certifications & Approvals

Application

SBPEMC is designed for applications in food-processing plants and machines.

SBPEMC is suitable for following markets and industries

Application 2 Available in flame retardant PA6 (SBPAV0) and high performance PTFE (SBPTFE).
Colour Blue (BU)
Description Short (BMEcat) (max. 150 characters) Metal-Content Spiral Binding PE/SS 30m blue ø 16mm
Features and Benefits A versatile way of protecting and tidying wires, cables and tubes, wires can easily be broken out at any point. Available in flame retardant polythene.
GLOBAL PART NAME (auto set) SBPEMC16-PE/SS-BU
Pack Cont. 30m
Package Quantity per Coil
Product Family SBPEMC
Product Group Metal-Content Spiral Binding
Variant Spiral Binding
Bundle ∅ max. 150mm
Bundle ∅ min. 20mm
Bundlediamter Range ETIM (Braided Sleeving) 20-150
Nominal ∅ 16mm
Nominal ∅ (imperial) 5/8"
Pitch (P) 16.0mm
Wall (WT) 1.6mm
∅ (D) 16mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Halogenfree Yes
Hazardous goods No
Intermittent Operating Temperature +120°C
Material Polyethylene (PE), Stainless Steel (SS)
Operating Temperature - °C -60 °C to +80 °C, intermittent +120 °C
Specifications
EAN / GTIN 5022660684418
Packaging 1 - Height (m) 0.19m
Packaging 1 - Length (m) 0.35m
Packaging 1 - Qty 30
Packaging 1 - Type Carton
Packaging 1 - Volume (m³) 0.02328
Packaging 1 - Weight (kg) 2.422kg
Packaging 1 - Width (m) 0.35m
Packaging 3 - Height (m) 0.25m
Packaging 3 - Length (m) 0.4m
Packaging 3 - Qty 30
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.03
Packaging 3 - Weight (kg) 2.757kg
Packaging 3 - Width (m) 0.3m
Packaging 4 - Height (m) 0.115m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 960
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 0.11
Packaging 4 - Weight (kg) 182.621kg
Packaging 4 - Width (m) 0.8m
Reel Length 30m
Weight 2.422kg
ETIM 5.0 EC002604
ETIM 6.0 EC002604
