FlexiGuard Conduits & Fittings FG14

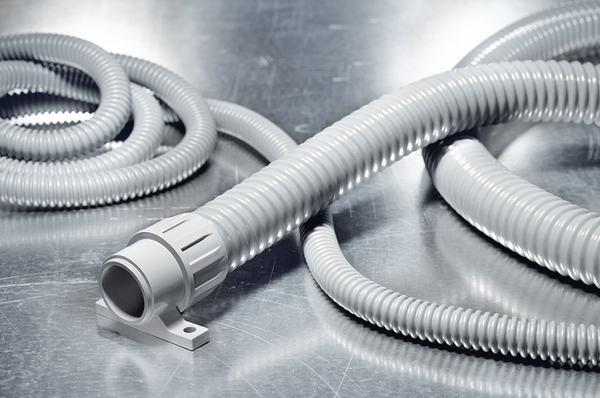

FlexiGuard PVC Protective Conduits, Article number: 167-00209

Features

  • Extremely flexible
  • Excellent mechanical protection
  • Good resistance to oils, acids and alkalis
  • Good resistance to chemicals
  • Good resistance to UV and ozone

Certifications & Approvals

Application

FlexiGuard protective hoses are used to protect cables in machines and plant construction, and robotics as well as leads to switch cabinets.

FlexiGuard PVC Protective Conduits is suitable for following markets and industries

Colour Grey (GY)
Description Short (BMEcat) (max. 150 characters) PVC protective conduit Ø10 reel 10 m
GLOBAL PART DESCRIPTION FG14-PVC/ST-GY
Pack Cont. 10m
Package Quantity per metre
Product Family FlexiGuard PVC Protective Conduits
Product Group FlexiGuard Conduits & Fittings
Bundle ∅ max. 10mm

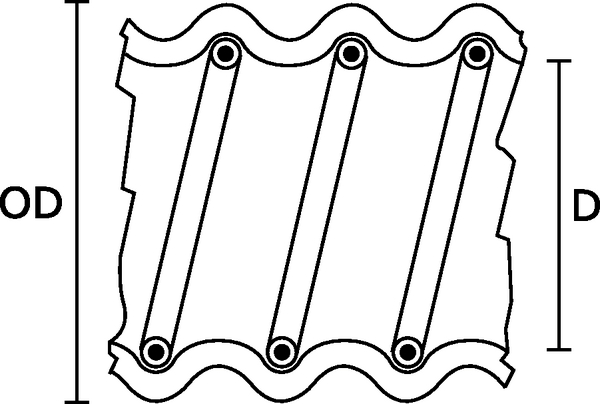

Diameter (D) 10mm
Flexibility extremely flexible

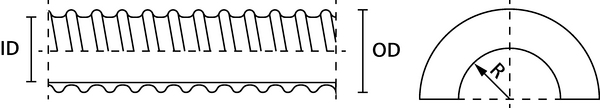

Inside Ø (ID) 10mm
Min. Bending Radius (R) 14mm
Nominal ∅ 14mm
Outside Ø (OD) 14mm
Thread Size M16
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Hazardous good No
IP-Rating IP68
Material Flexible Polyvinyl Chloride, cadmium free (PVC), Steel (ST)
Operating Temperature - °C -20 °C to +70 °C, (+80 °C, 200 h)
Plain inside surface (Yes/No) ETIM No
Plain ouside surface (Yes/No) ETIM No
Specifications
EAN / GTIN 4031026280646
Packaging 1 - Height (m) 0.07m
Packaging 1 - Length (m) 0.28m
Packaging 1 - Qty 10
Packaging 1 - Type Reel
Packaging 1 - Volume (m³) 0.00549
Packaging 1 - Weight (kg) 0.89kg
Packaging 1 - Width (m) 0.28m
Reel Length 10m
Weight 0.89kg
ETIM 5.0 EC001177
ETIM 6.0 EC001177
