Fittings for spiral-reinforced PVC Conduits PSR20-S-M20

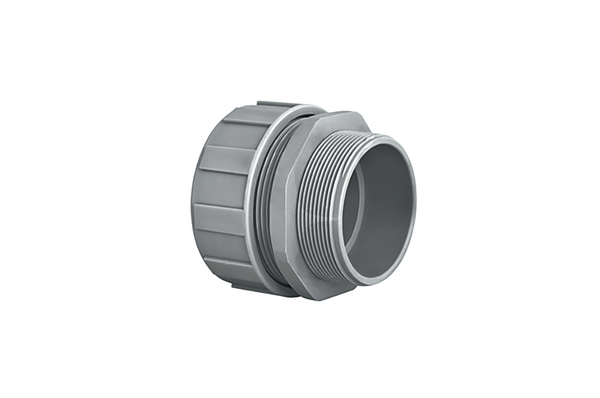

PSR-S Straight fitting, Article number: 166-40704

PSR-S Straight.
1 more image to PSR20-S-M20
PSR-S Straight.

Features

  • High pull-off strength
  • Highly resistant to solvents and oils
  • Free of halogen, sulphur and phosphorus
  • Metric threads supplied with locknuts
  • Fits both PSR and PSRSC conduits

Certifications & Approvals

Application

Straight PA66 fitting, fixed external thread.
Fulfils IP65 with PSR conduits.
Fulfils IP66 and IP67 with PSRSC conduits.

PSR-S Straight fitting is suitable for following markets and industries

Colour Grey (GY)
Description Short (BMEcat) (max. 150 characters) Straight fitting grey with External Thread ø20mm M20
Features and Benefits Straight PA66 fitting, external thread IP65 with PSR Conduits IP67 with PSRSC Conduits
GLOBAL PART DESCRIPTION PSR20-S-M20-PA66-GY
Pack Cont. 10pcs.
Package Quantity per Bag
Product Family PSR-S Straight fitting
Product Group Fittings for spiral-reinforced PVC Conduits
Type of connection Snap-connection
Variant Straight

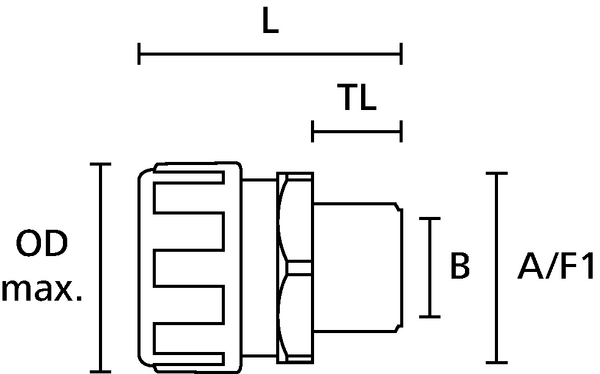

Height (H) 33mm
Length (L) 43mm
Lowest inner diameter 14mm
Min. Bore Size (B) 14.5mm
Nominal ∅ 20mm
Nominal ∅ (imperial) 13/16"
Outside ∅ max (OD max.) 33mm
Thread Length (TL) 14mm
Thread Size M20
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Halogenfree Yes
Hazardous good No
IP-Rating IP65 with PSR conduits, IP66 and IP67 with PSRSC conduits
Material Polyamide 6.6 (PA66)
Material of fitting ETIM Polyamide (PA)
Operating Temperature - °C -50 °C to +135 °C
Specifications
Specifications ANSI/UL 1695
UL-File Number E325250
EAN / GTIN 4031026410708
Packaging 1 - Height (m) 0.045m
Packaging 1 - Length (m) 0.23m
Packaging 1 - Qty 10
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00135m³
Packaging 1 - Weight (kg) 0.2kg
Packaging 1 - Width (m) 0.13m
Weight 0.2kg
ETIM 5.0 EC001178
ETIM 6.0 EC001178
